EasyDrape快速搭建系统

全新升级款EasyDrape快速搭建系统,实现无工具化安装,旨在让搭建工作更轻松、更简单。非常适合建造贸易展展台、横幅展台、场地遮蔽、活动装饰或临时分隔墙。

可实现单人安装,短时间内将伸缩立柱连接到底座上,并用水平幕布支架连接。将幕布通过魔术贴安装在水平幕布支架上,只需转动旋钮,推动立柱,即可将整个装置调整到所需高度。操作就是如此简单!无需工具,几乎零噪音,无需复杂操作。活动结束之后,可快速拆除,还能够重复使用套件。

自立支撑快速搭建系统

使用EasyDrape快速搭建系统,可以安全地在展会上将幕布悬挂至5米高,省去桁架搭建的费时费力,节省时间和空间。可调节的伸缩立柱和水平幕布支架,使您可以轻松安装临时场地遮蔽幕布以及自立支撑的幕布分隔墙,灵活的四向接头可快速衔接幕布支架。堪称绝佳的活动场所幕布搭建系统!

您如果觉得仅靠底座支撑不能满足需求,我们还配备了额外的支撑结构套件,让整套系统更加安全无忧。我们推荐在3.5m高度的伸缩立柱上安装支撑结构。如果高度高于3.5m,建议在每根伸缩立柱上安装支撑结构,支撑结构对于整个装置的稳定性和场地安全有益,是否采纳我们的意见,应视安装现场和项目具体情况而定。

联系我们以获取更多信息



装配 EASYDRAPE 快速搭建系统时无需工具、几乎零噪音、迅捷快速。

  • 伸缩立柱快速调节高度、宽度。
  • 结构稳定可靠。
  • 与ShowPipe轨道系统兼容,实现幕布移动控制。
  • 标准高度合理舒适,通过旋钮操作,可轻松伸缩至5米高度。
  • 安装无需脚手架。
  • 提供多种存储和运输解决方案。
  • 内置四向接头,连接水平幕布支架方便轻松。
  • 水平幕布支架附带双面魔术贴
  • 3种标准伸缩立柱长度:80 ~ 146 cm (FOH*) // 180 ~ 337 cm // 180 ~ 503 cm
  • 3种标准水平幕布支架宽度:90 ~ 120 cm // 120 ~ 180 cm // 180 ~ 300 cm
  • EasyDrape提供更加稳定性和更安全支撑结构

*FOH= 前厅区域(Front of house)

查看EASYDRAPE FRONT OF HOUSE (FOH)解决方案



配件 产品代码信息

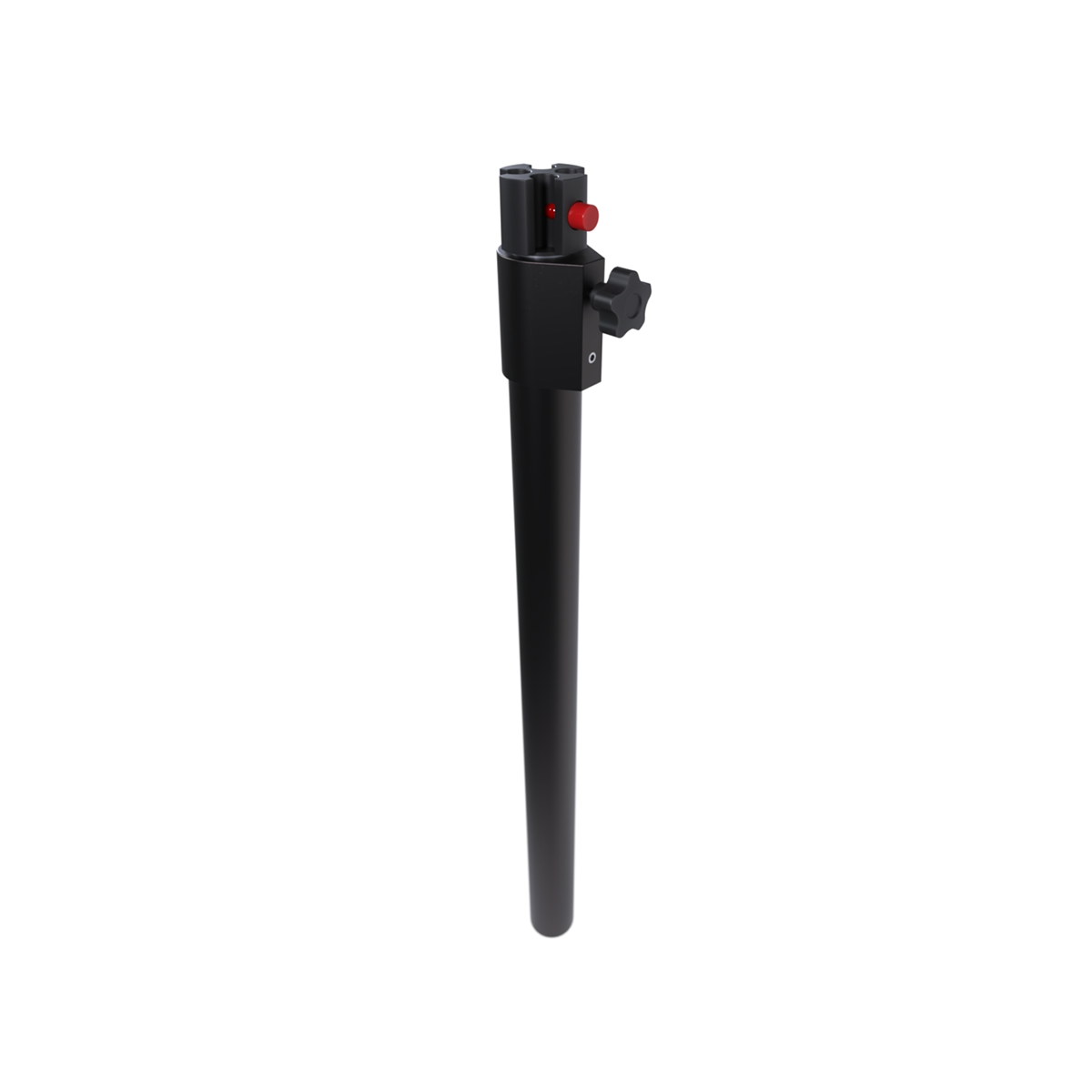

01. Telescopic Upright Front of House

8750 2306 1307

Weight: 1.45 kg • 0.80 m - 1.46 m

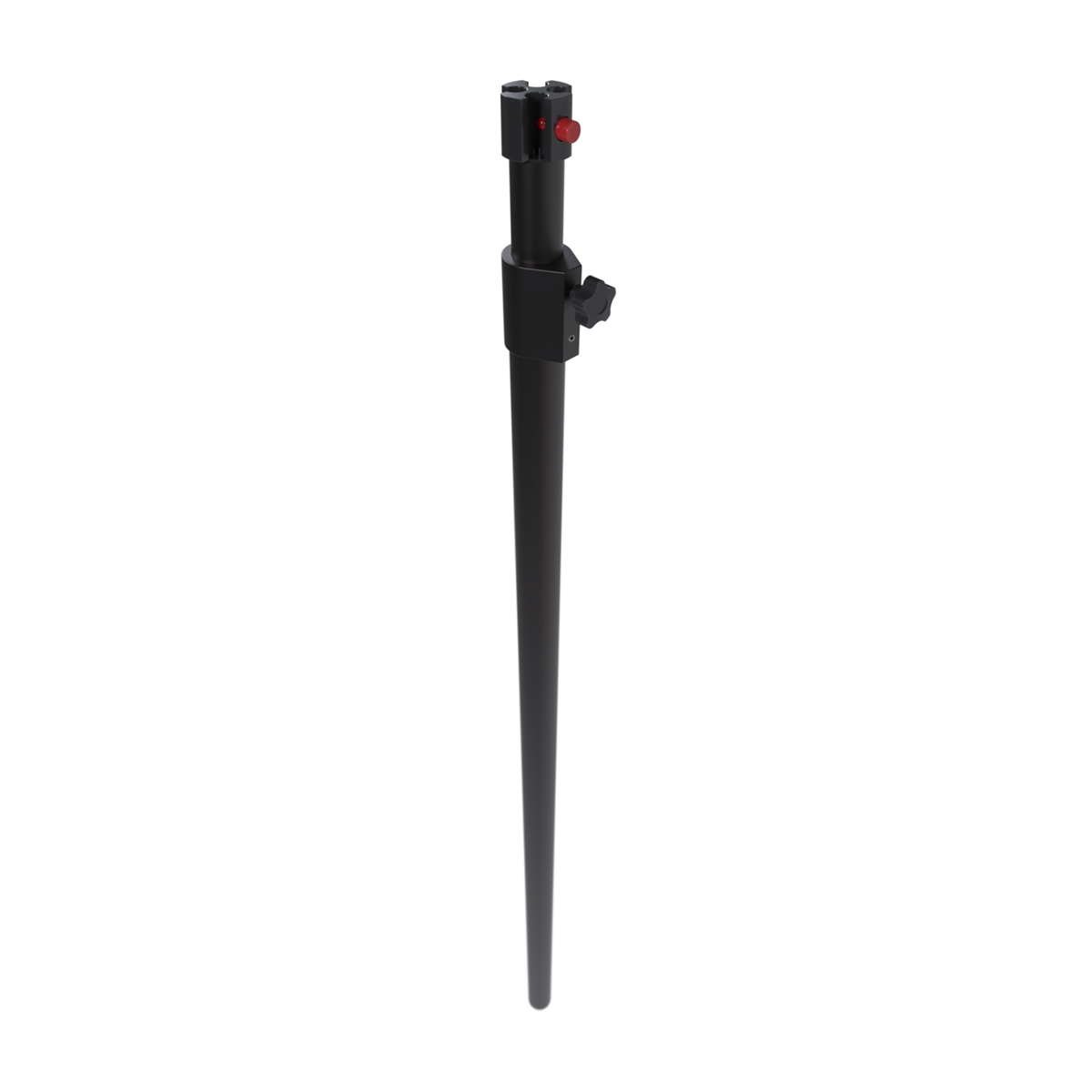

02. Telescopic Upright 3 m

8750 2306 3377

Weight: 2.95 kg • 1.80 m - 3.37 m

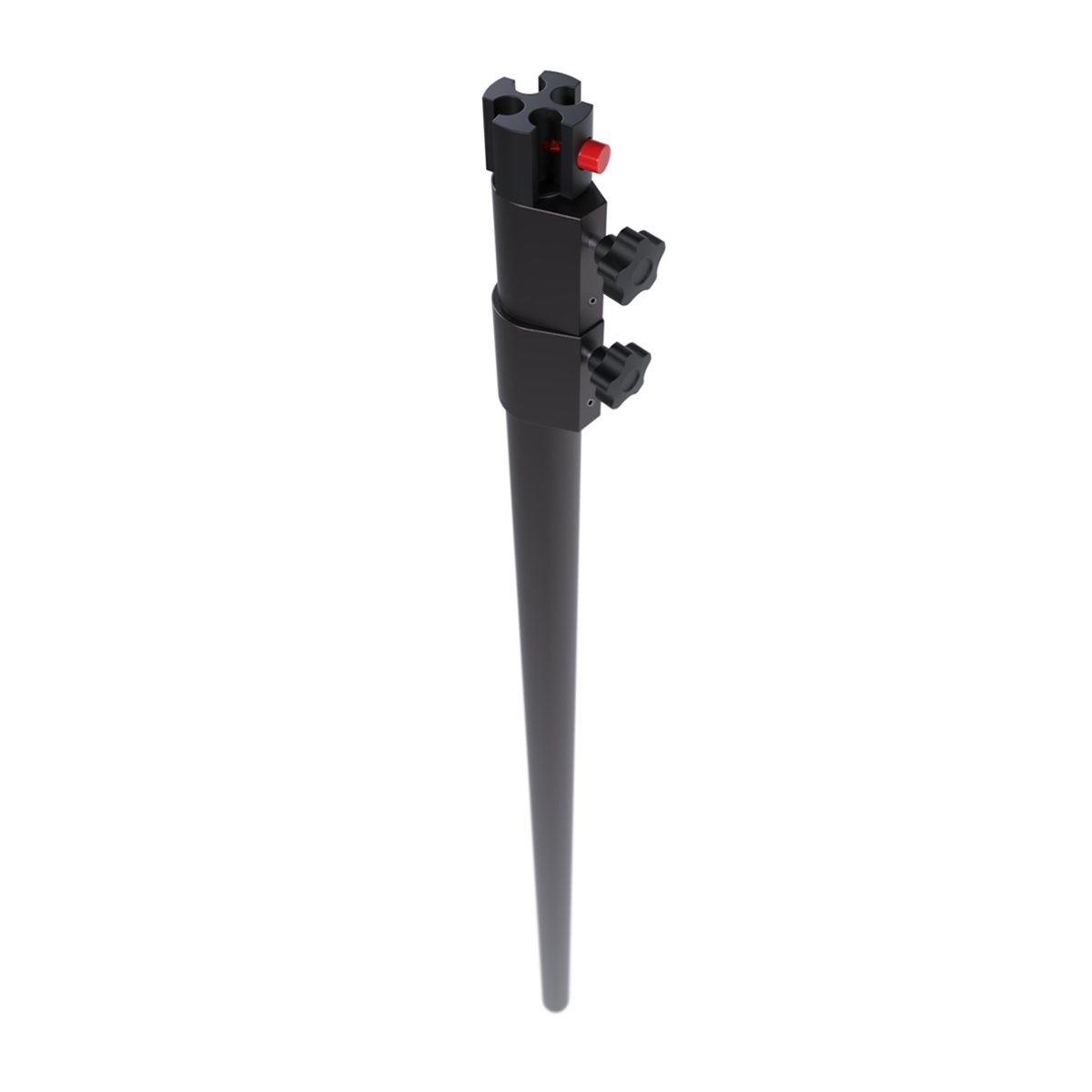

03. Telescopic Upright 5 m

8750 2306 5057

Weight: 4.60 kg • 1.80 m - 5.03 m

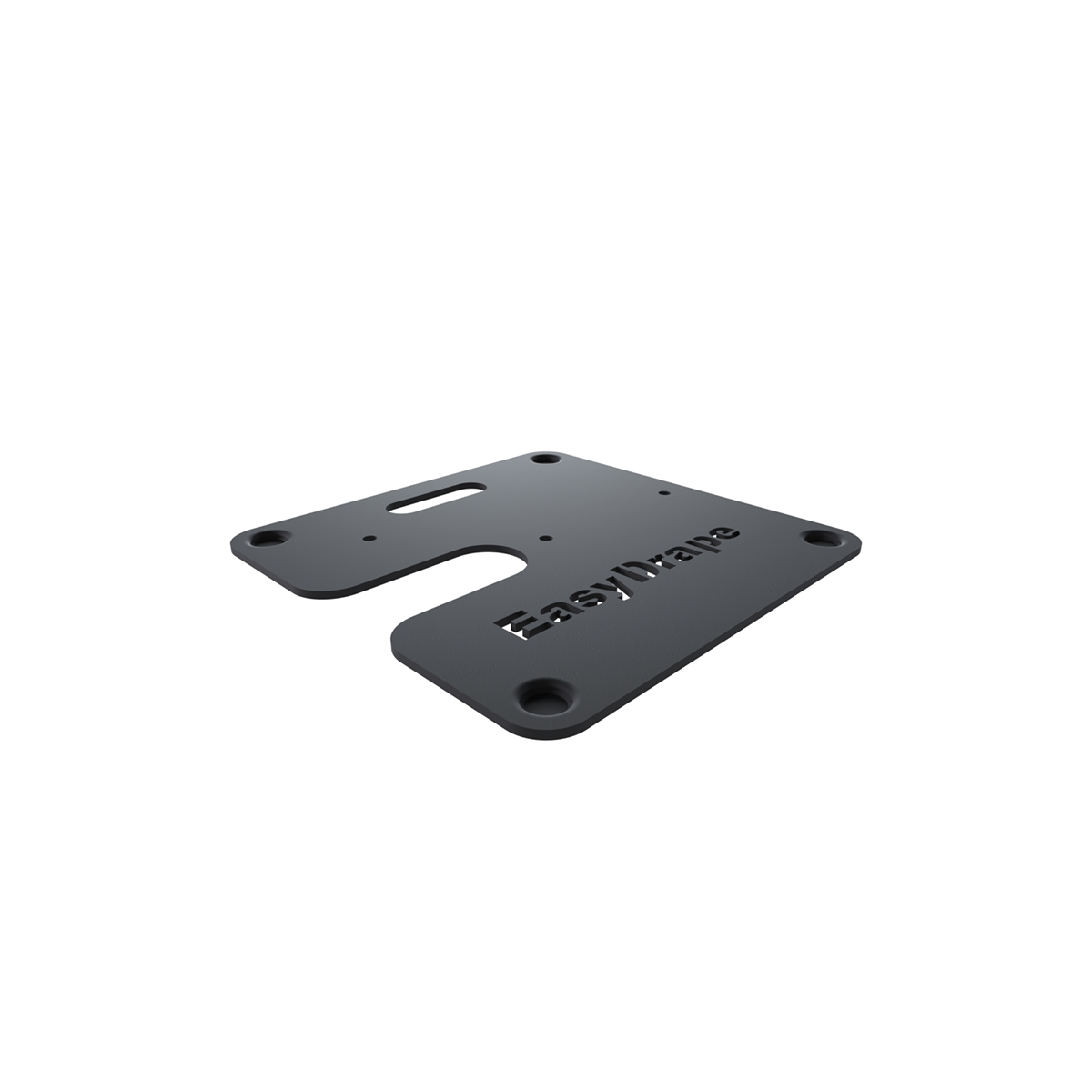

04. Base Plate Front of House

8750 2000 0057

Weight: 5.00 kg • 34.5 x 34.5 cm • For Front of House,

Retractable Belt and Hanging Rope Uprights

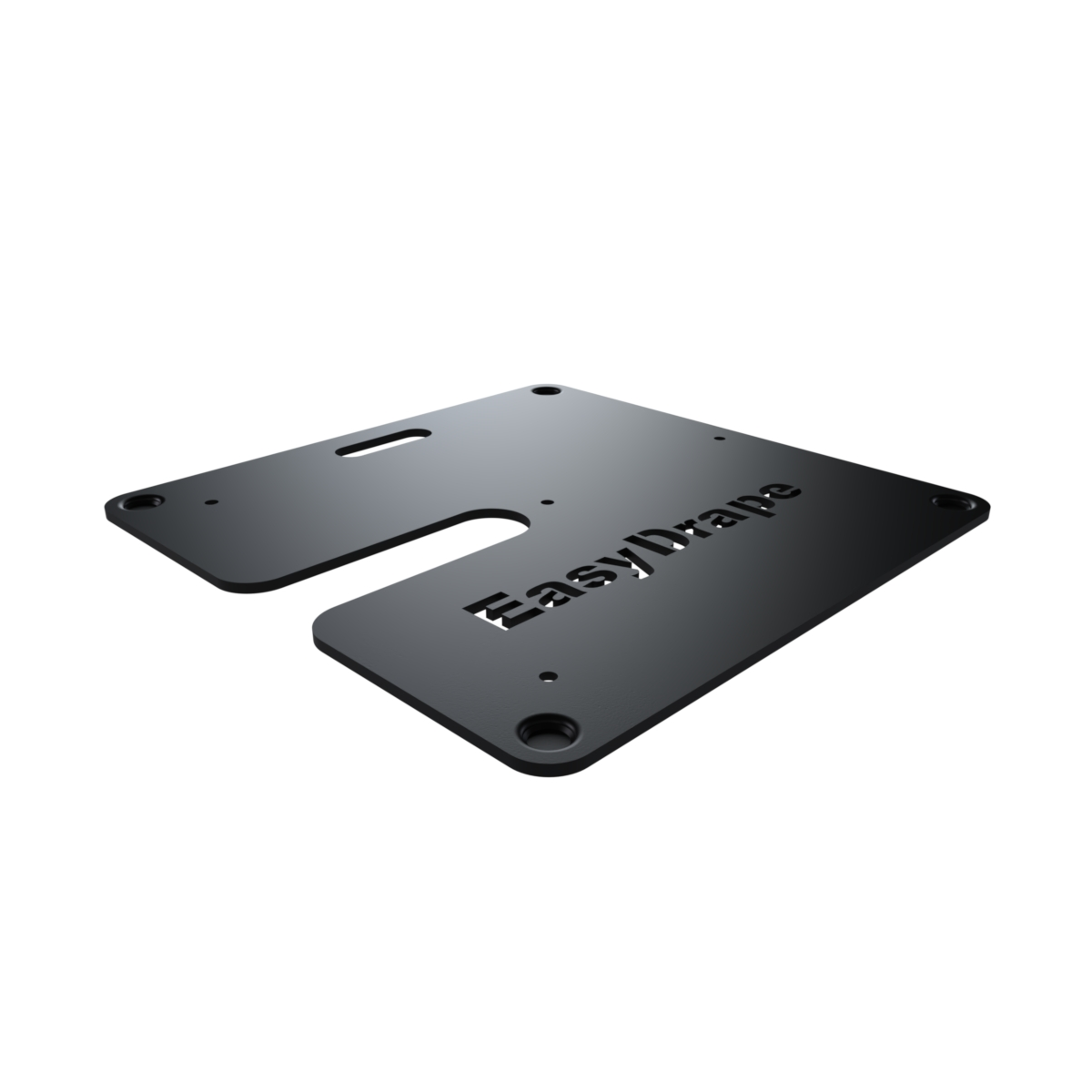

05. Base Plate

8750 2000 0147

Weight: 14.00 kg • 49.5 x 49.5 cm • For 3 m and 5 m Telescopic Uprights

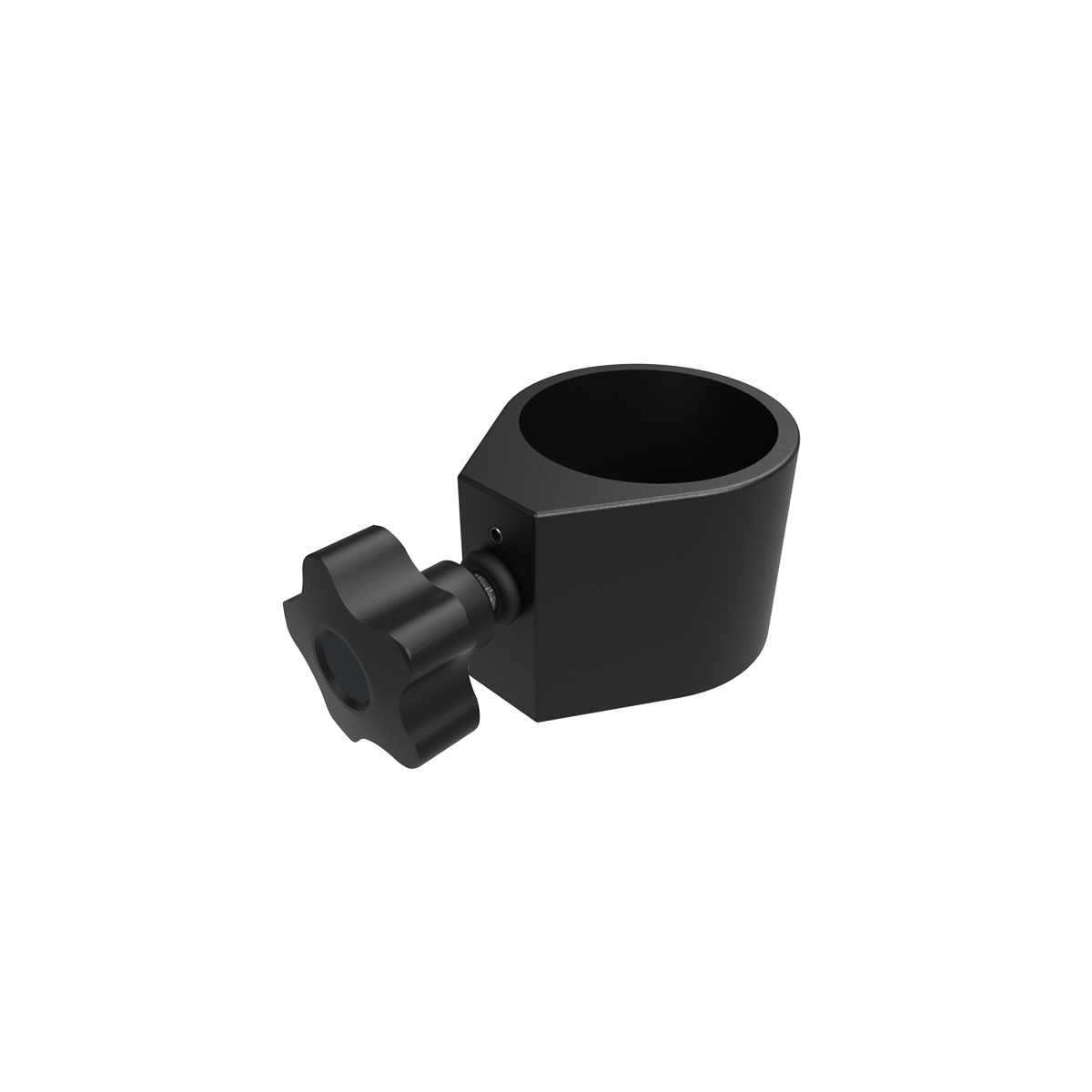

06. Base Plate Coupler

8750 2306 0017

Weight: 0.22 kg • To connect Base Plates and Uprights

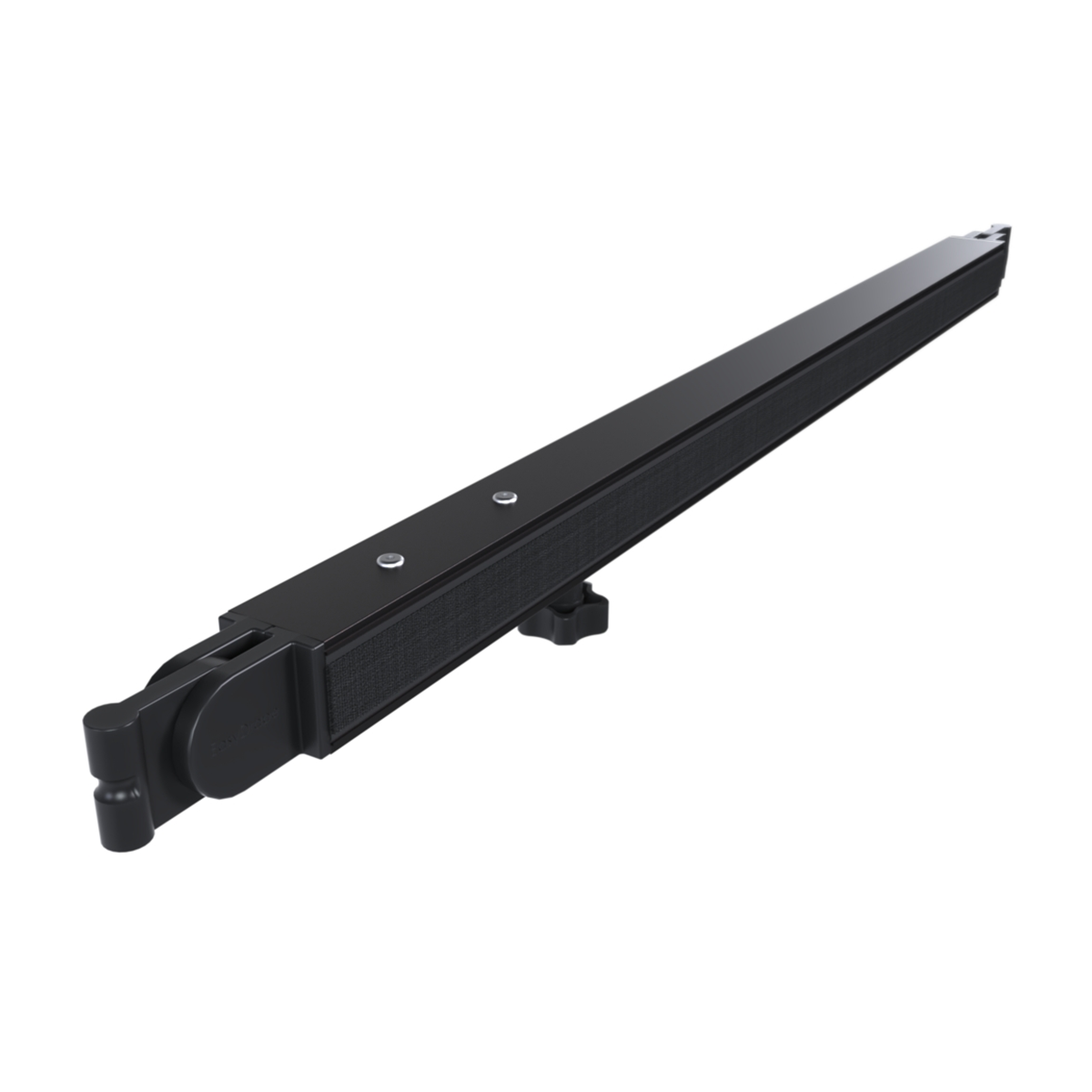

07. Horizontal Drape Support

8750 2309 0907

Weight: 1.55 kg • 0.90 m - 1.20 m • To attach drapes

8750 2309 1207

Weight: 2.03 kg • 1.20 m - 1.80 m • To attach drapes

8750 2309 1807

Weight: 2.94 kg • 1.80 m - 3.00 m • To attach drapes

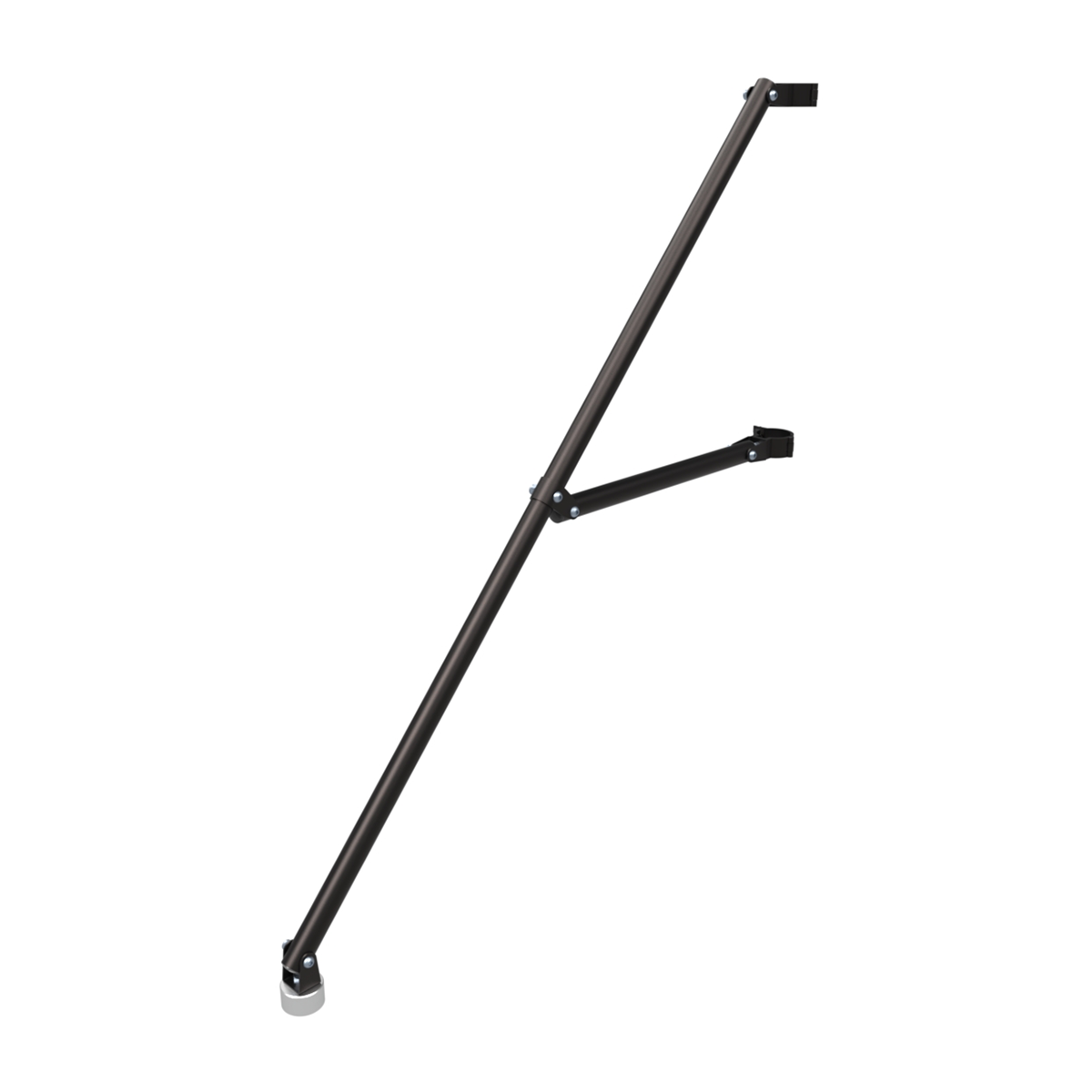

08. Support for Uprights

8750 2306 5067

Weight: 1.60 kg • To support 3 m and 5 m Uprights

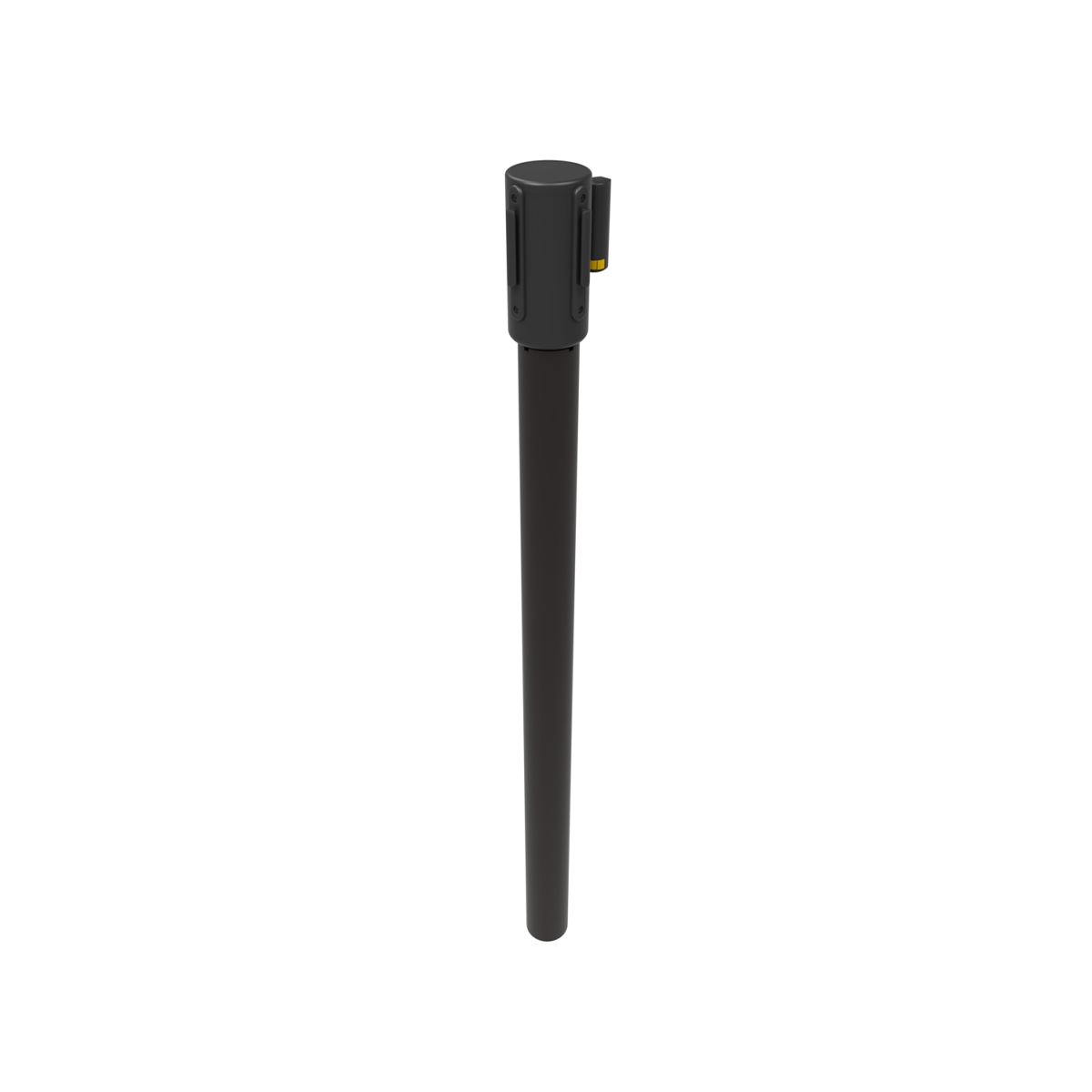

09. Retractable Belt Upright

8750 2317 0907

Weight: 1.08 kg • 0.90 m • Belt lenght: 2.50 m

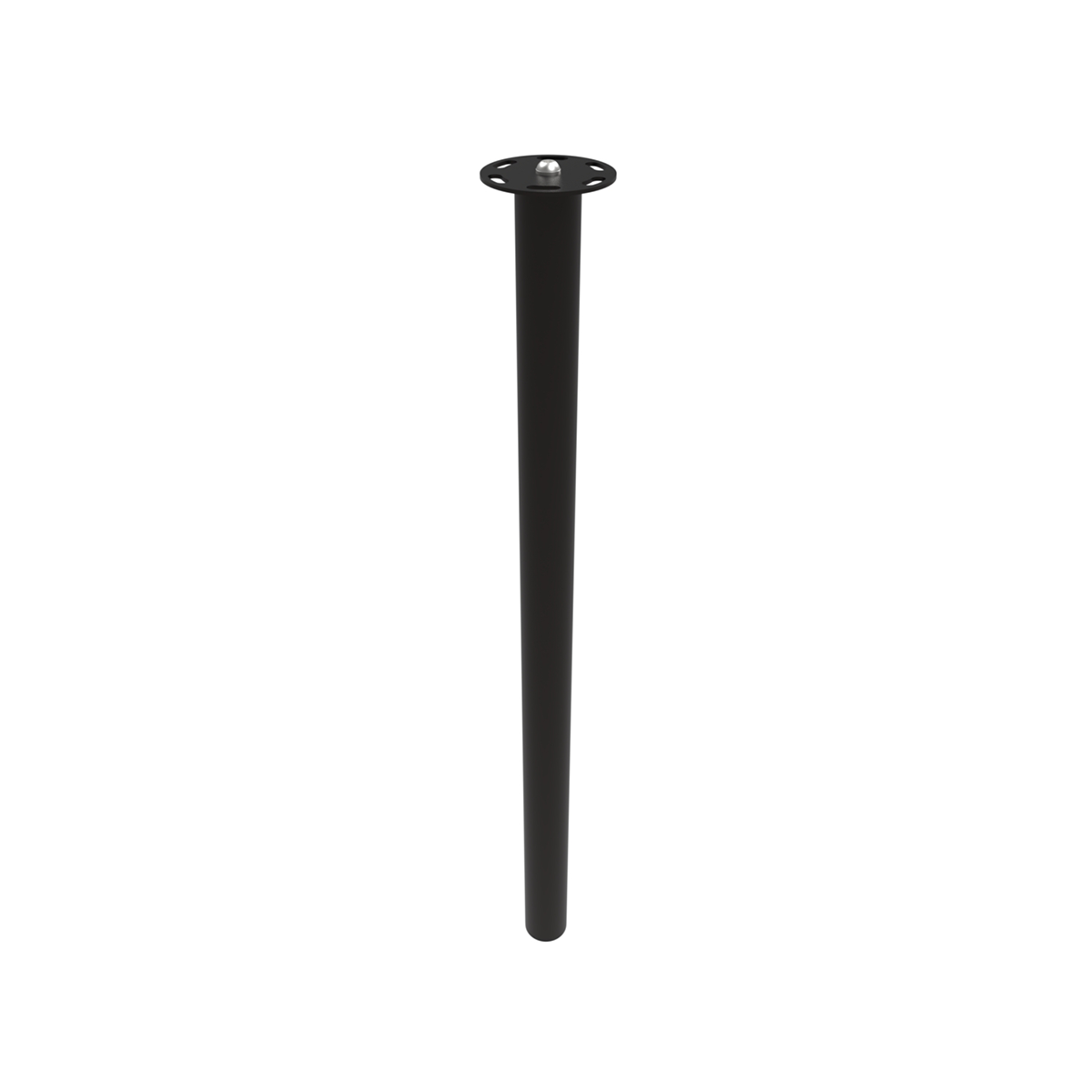

10. Hanging Rope Upright

8750 2317 0917

Weight: 0.92 kg • 0.90 m • To hang Velvet Hanging Rope

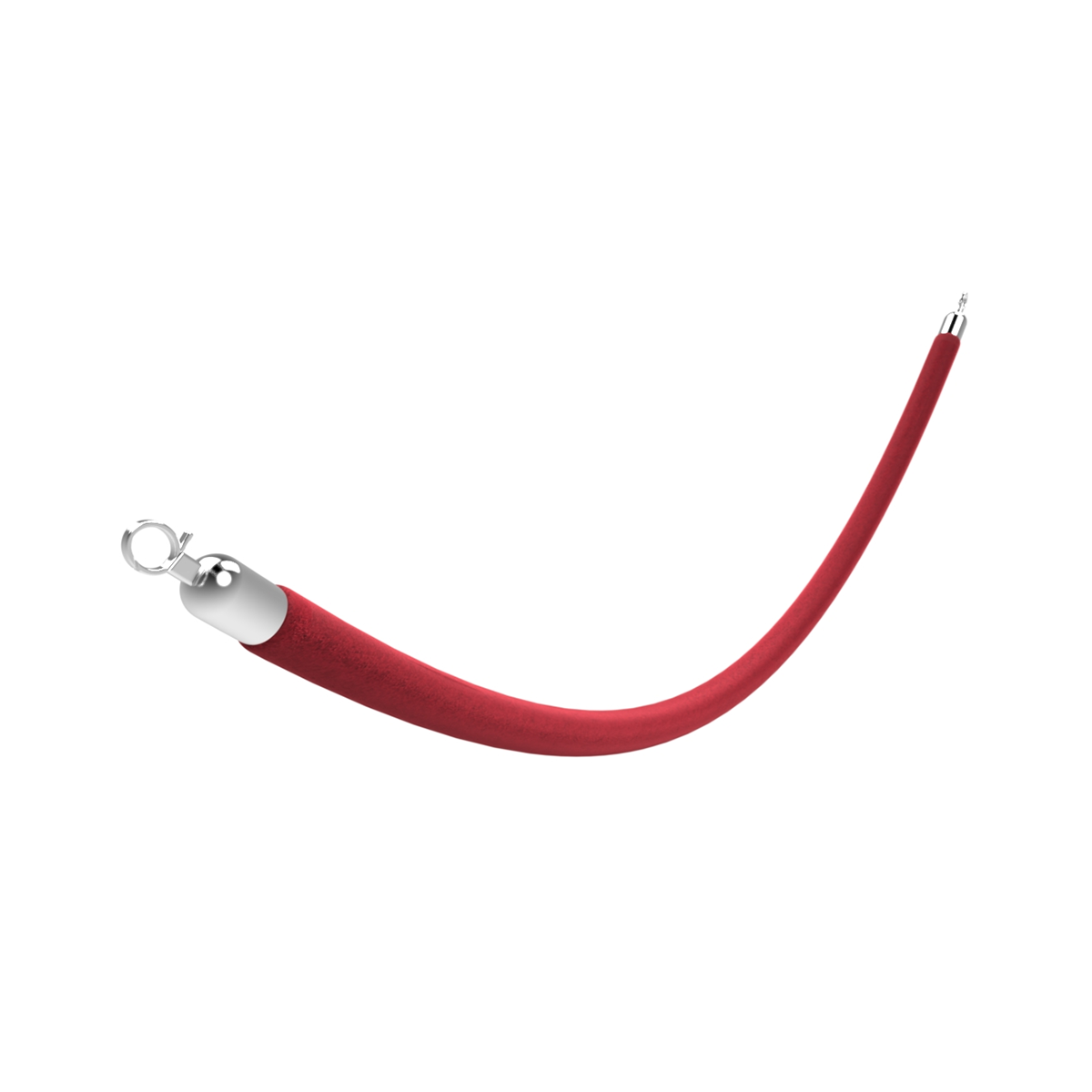

11. Velvet Hanging Rope

8750 2263 0107

Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Black

8750 2263 0109

Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Red

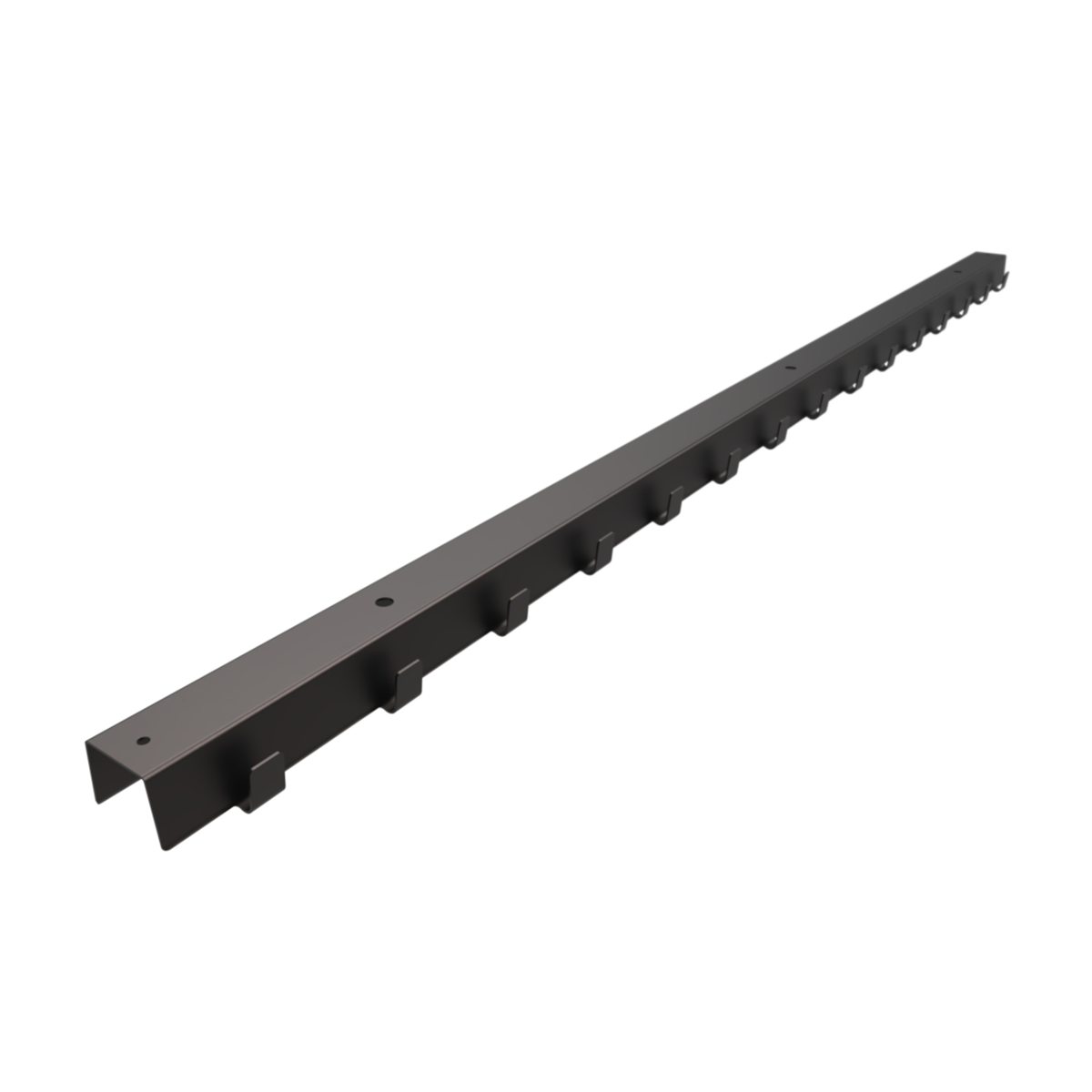

12. Coat Hooks

8750 2317 1457

Weight: 2.94 kg • 1.45 m • To place on top of a Horizontal

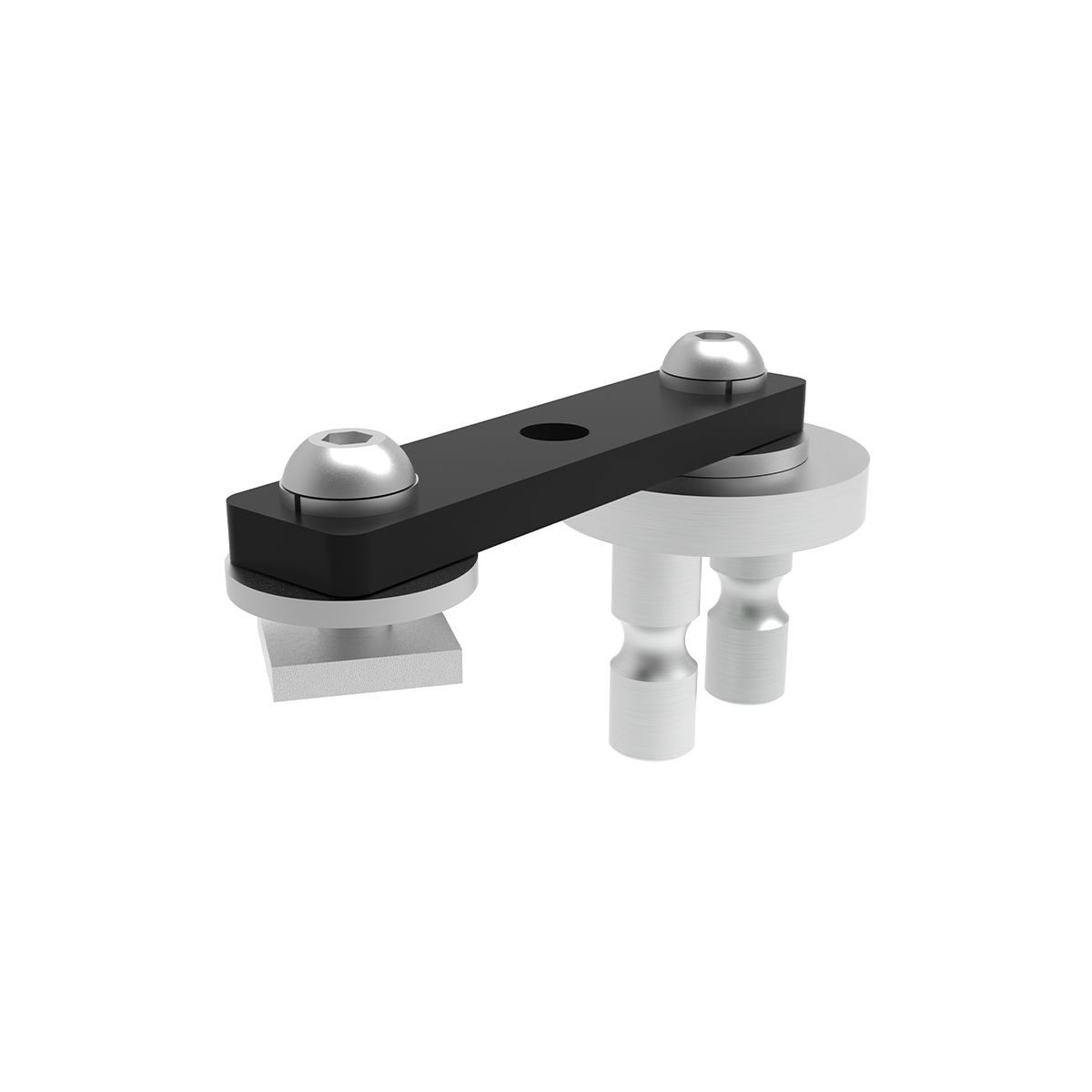

13. Offset Plate

8750 2263 0087

Weight: 0.21kg • For ShowPipe in front setup

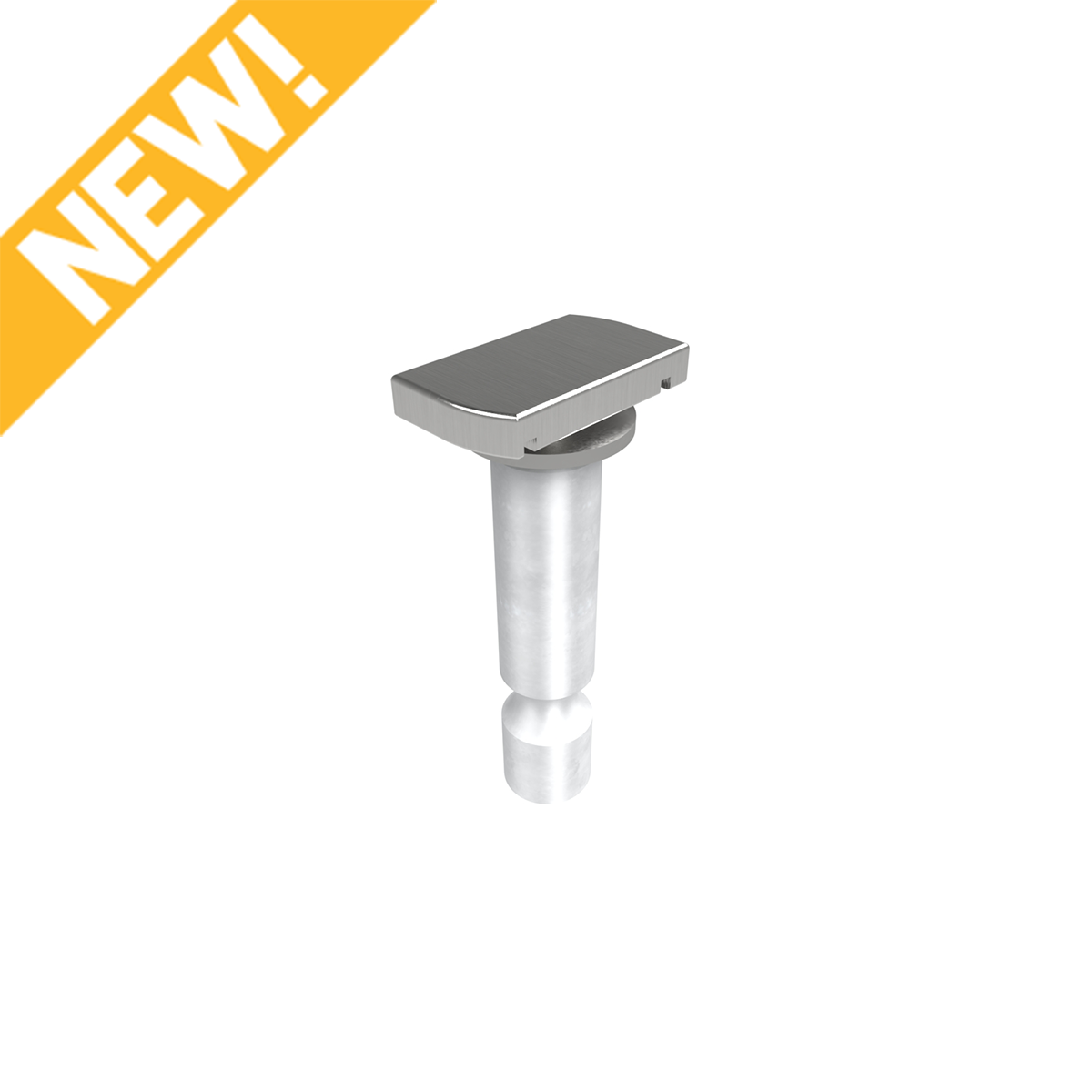

14. 4-Way Track Connector

8750 2263 0104

Weight: 0.01 kg • For ShowPipe on top setup

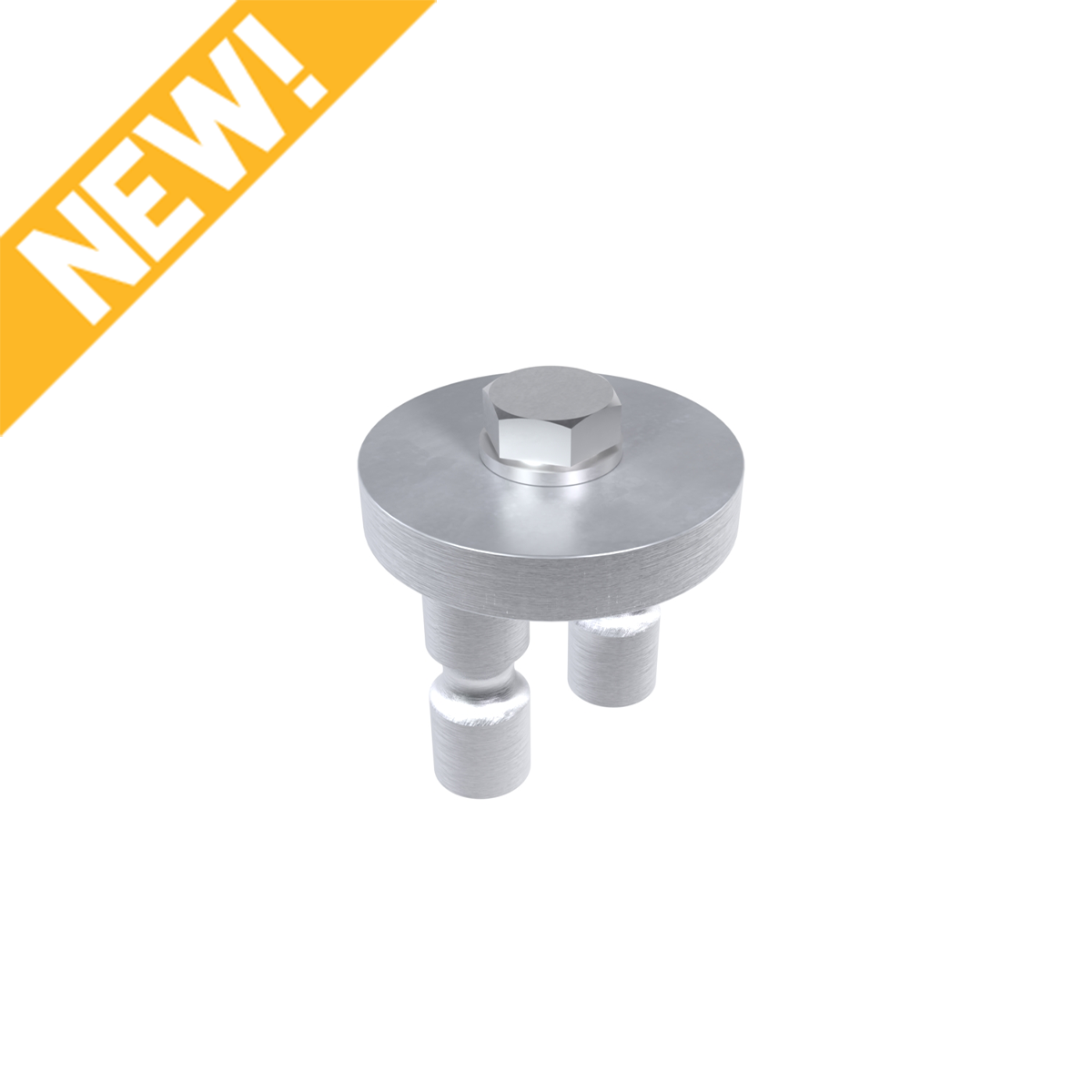

15. 4-Way M10 Adaptor

8750 2263 0094

Weight: 0.10 kg • For 4-Way to M10 adaption

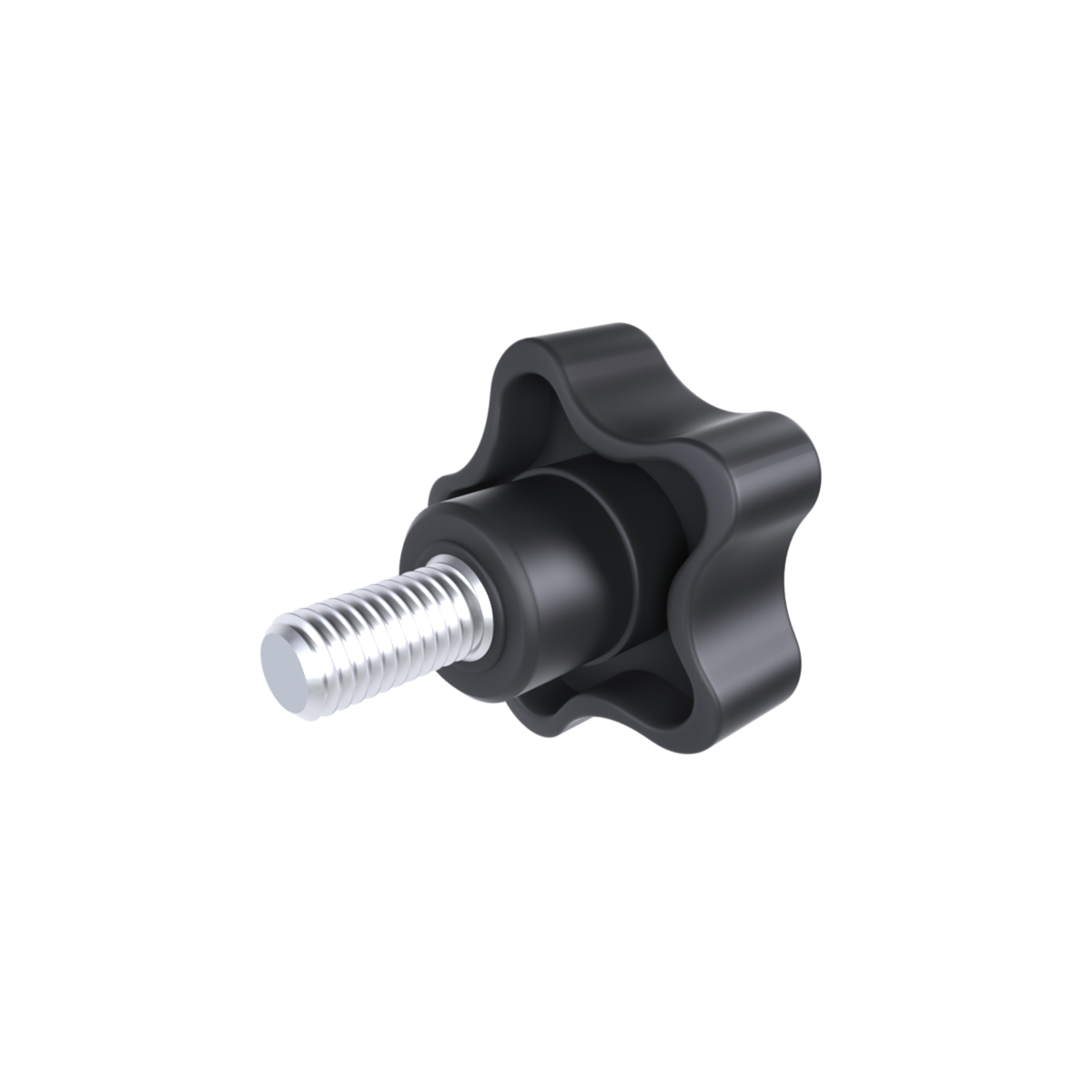

16. Upright Turn Button

8750 2270 0017

Weight: 0.02 kg • Spare part

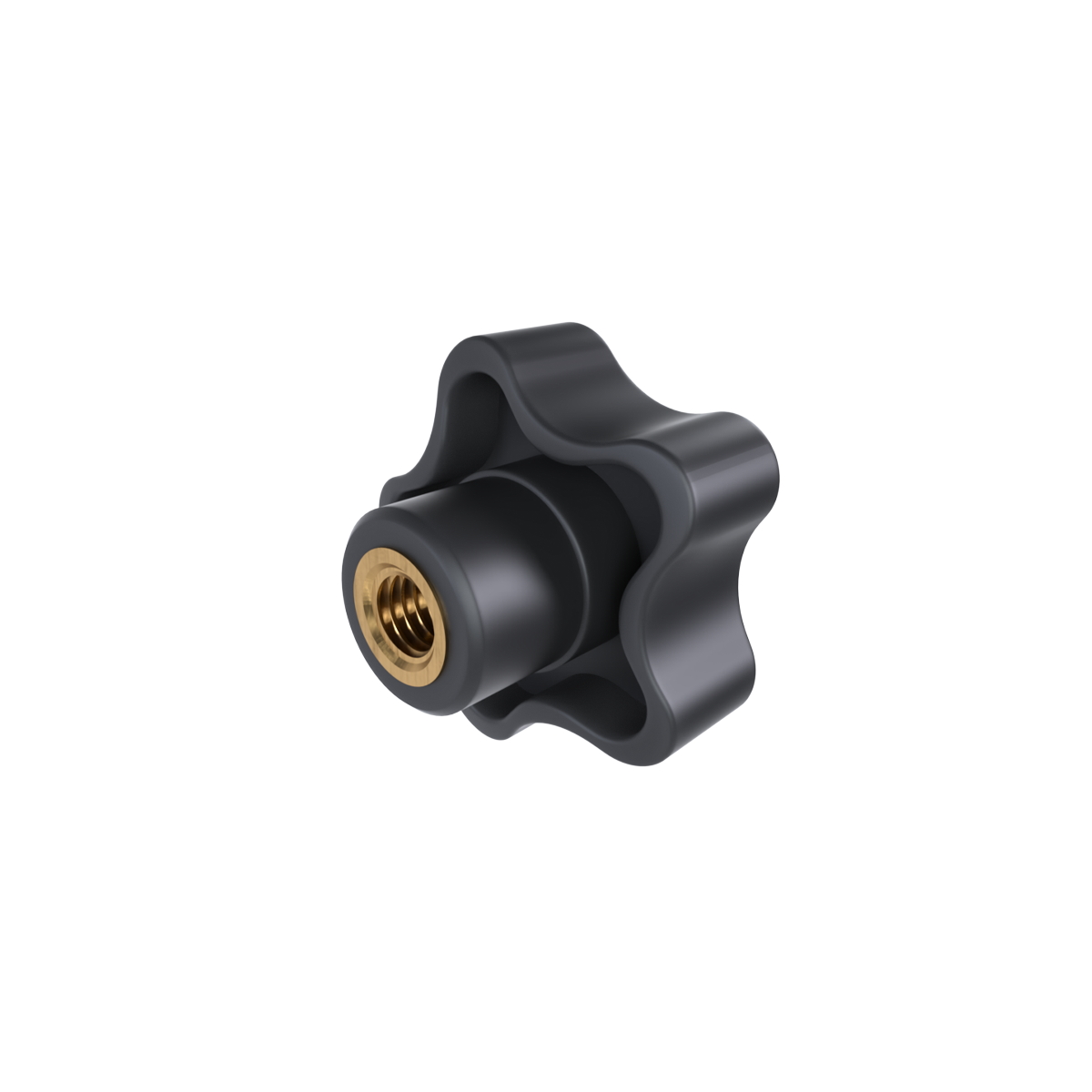

17. Horizontal Turn Button

8750 2309 0057

Weight: 0.02 kg • Spare part

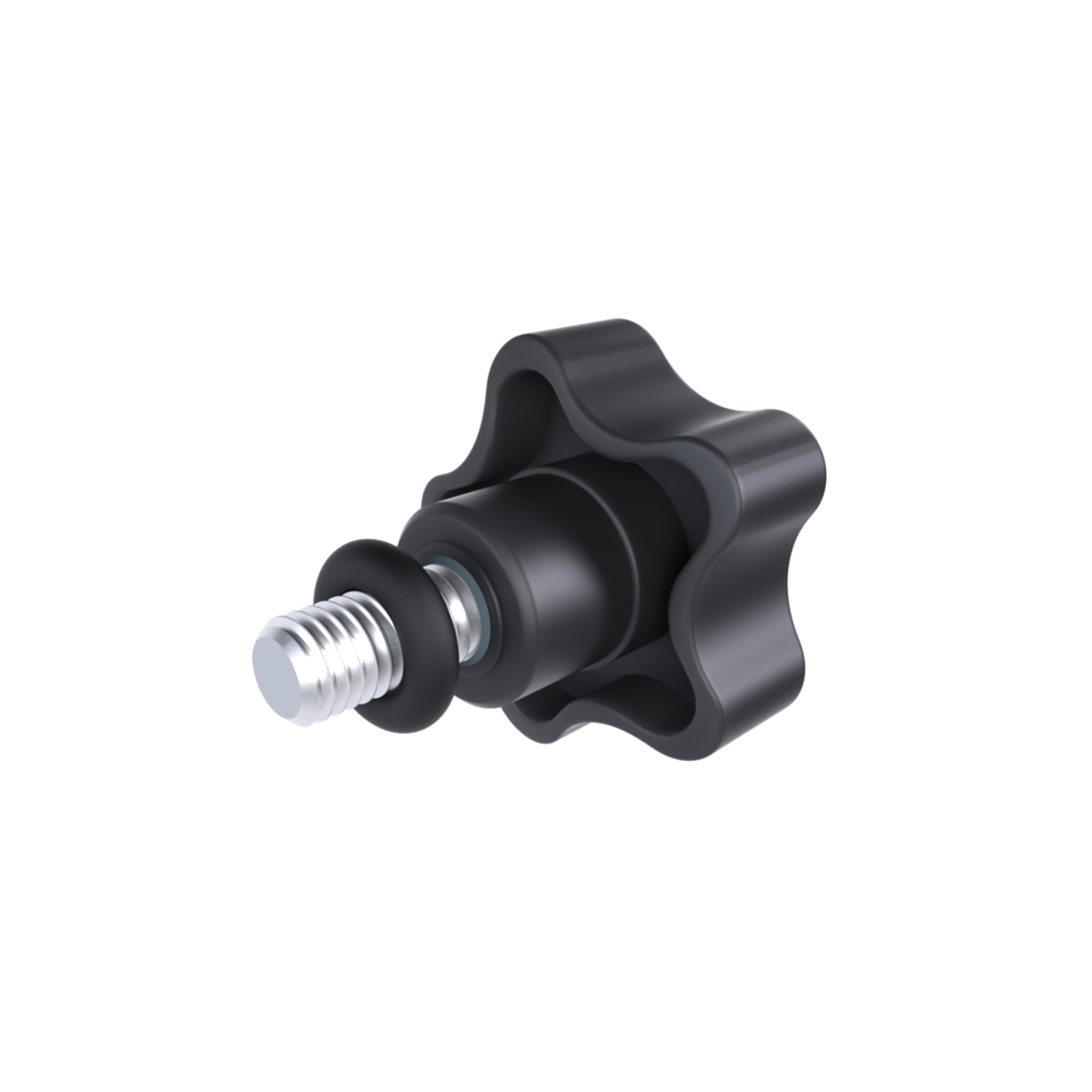

18. Coupler Turn Button

8750 2270 0007

Weight: 0.02 kg • Spare part

19. Swivel

8750 2309 0007

Weight: 0.01 kg • Spare part

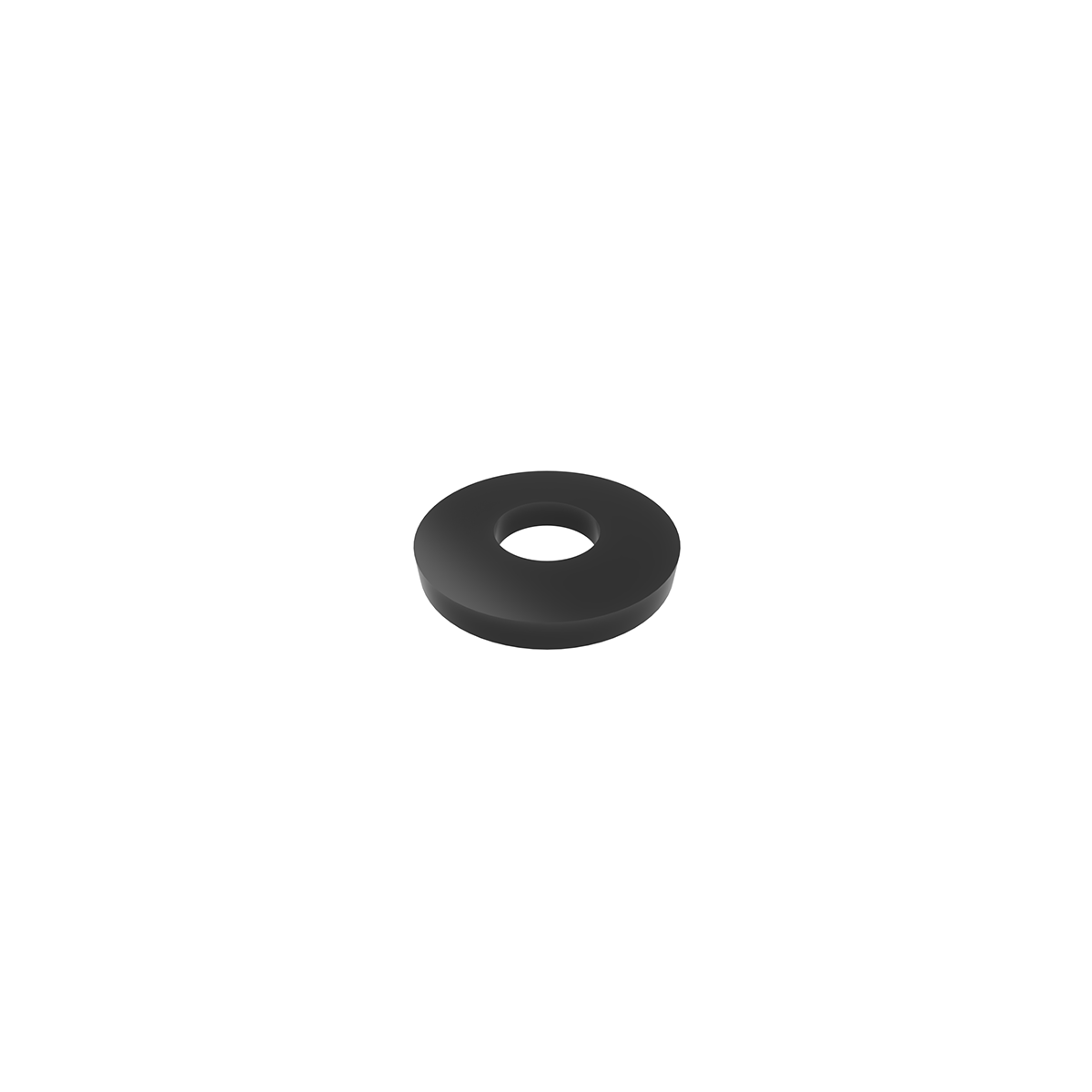

20. Plastic Washer

8750 2309 0067

Weight: 0.01 kg • Spare part

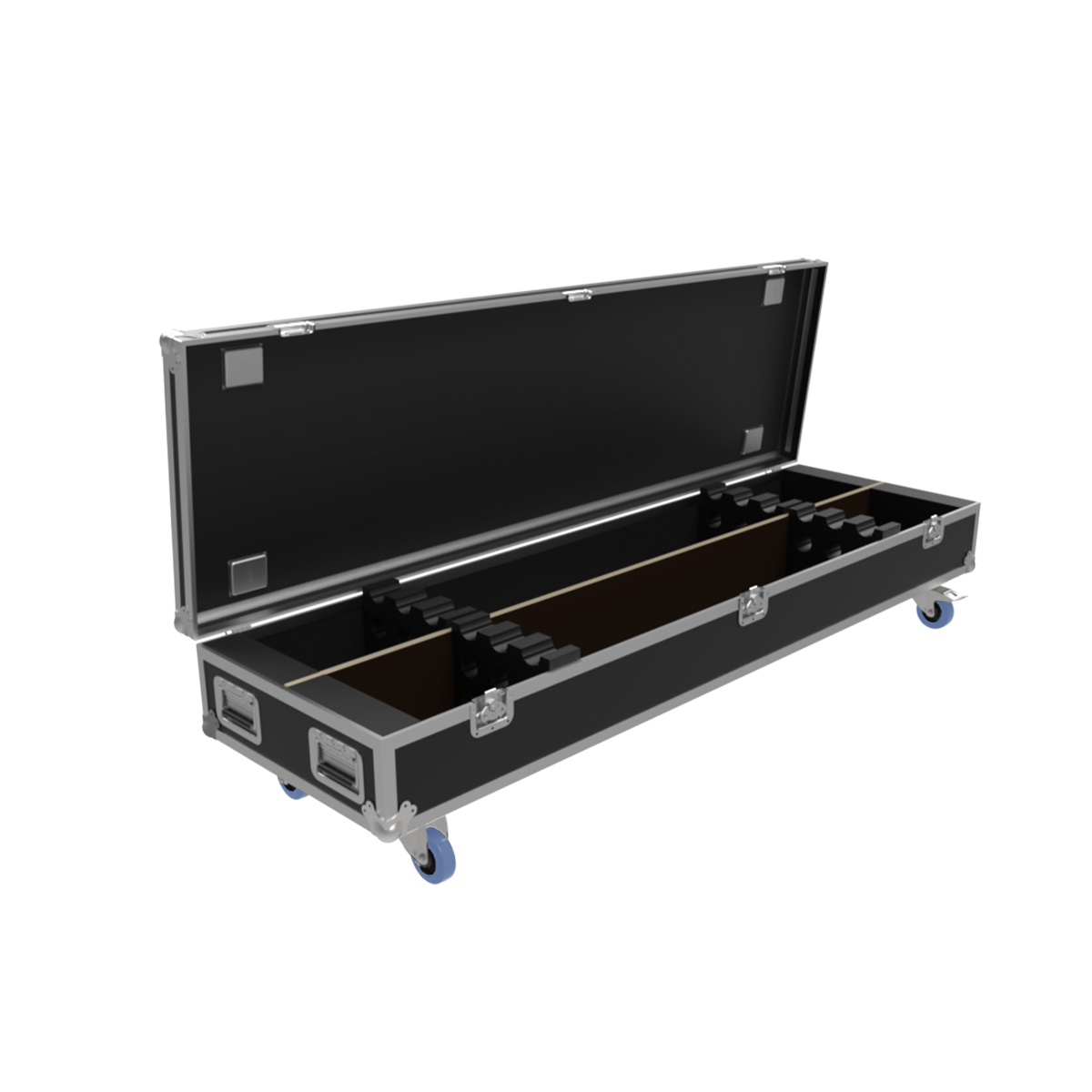

21. Flightcase

8750 2375 0207

Weight: 52.00 kg (empty) - 120.50 kg (full)

Fits 9 Uprights and 9 Horizontals

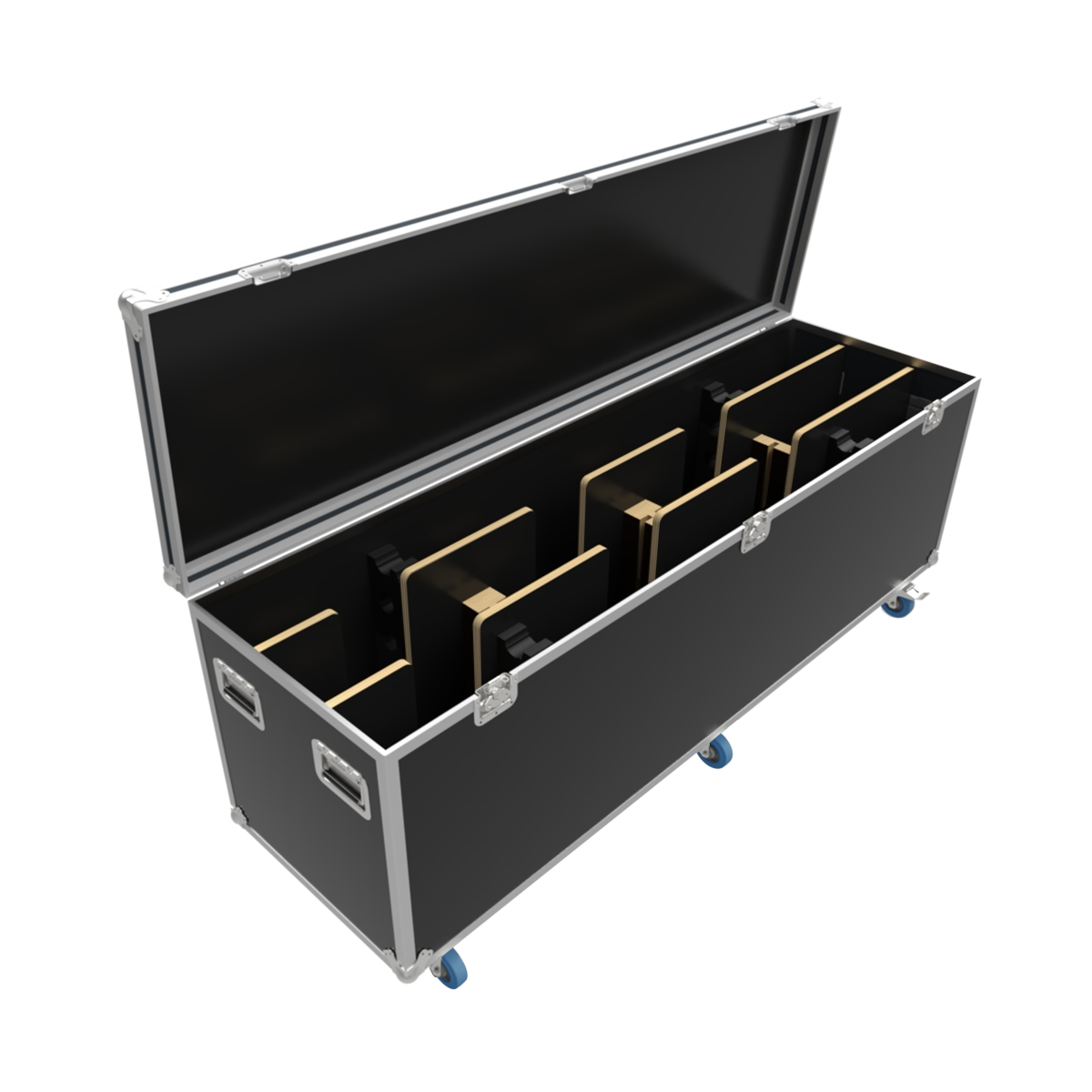

22. Flightcase xl

8750 2375 0117

Weight: 118.00 kg (empty) - 312.50 kg (full)

Fits 9 Uprights, 9 Horizontals and 9 Base Plates

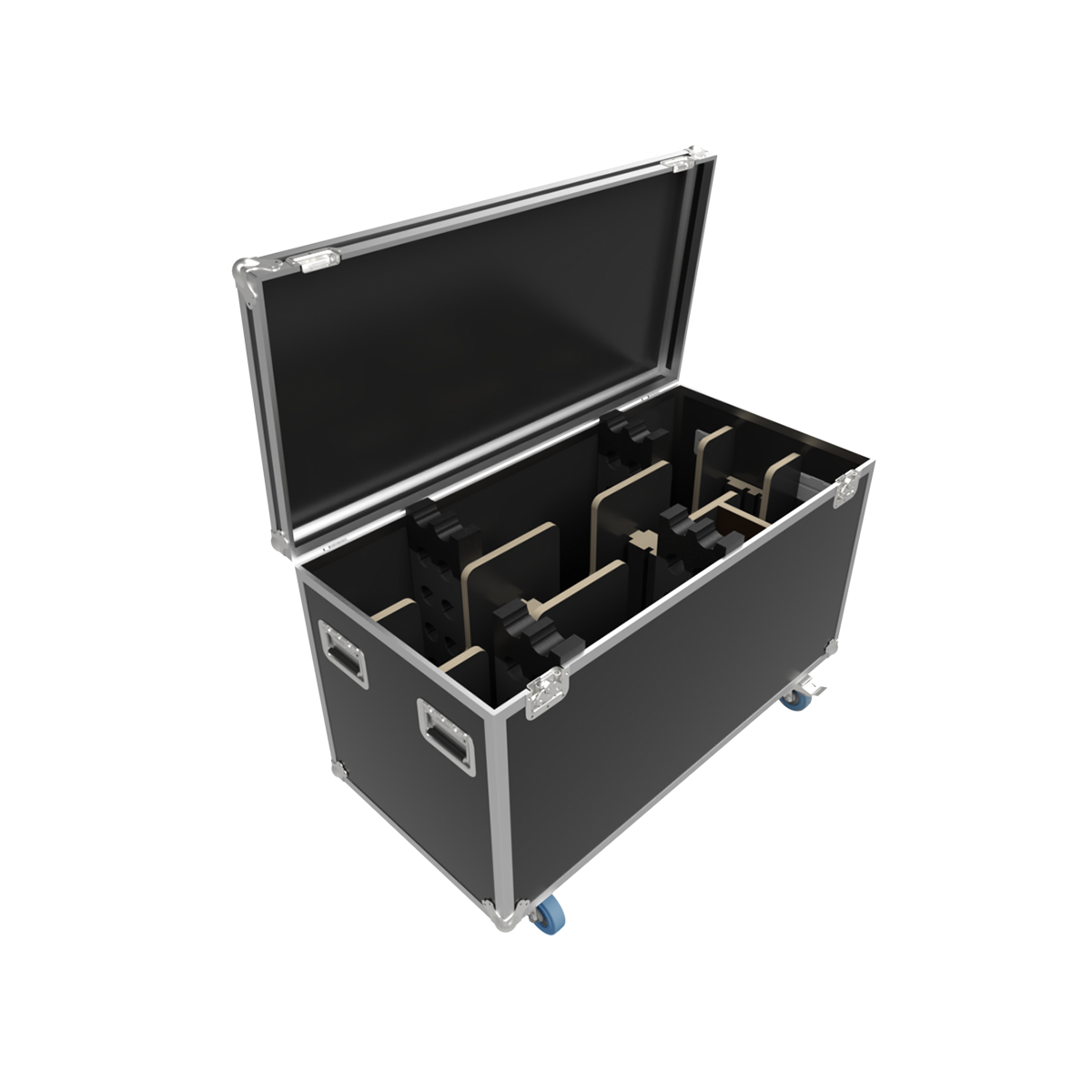

23. Front of House Flightcase

8750 2380 0117

Weight: 45.00 kg (empty) - 185.00 kg (full)

Fits 12 FOH Uprights, 12 FOH Base Plates and 4 drapes

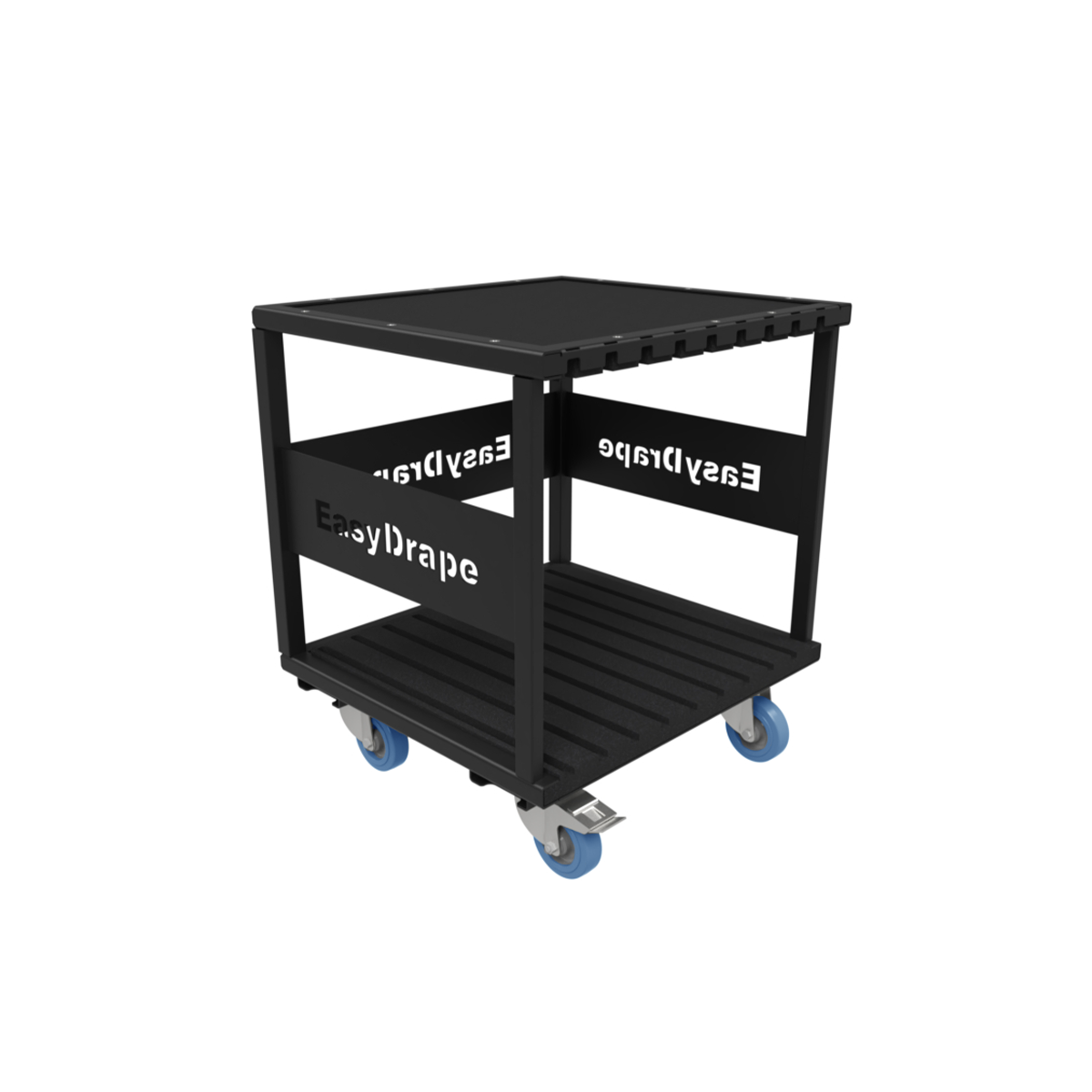

24. Base Plate Cart

8750 2375 0305

Weight: 42.00 kg (empty) - 168.00 kg (full)

Fits 9 Base Plates

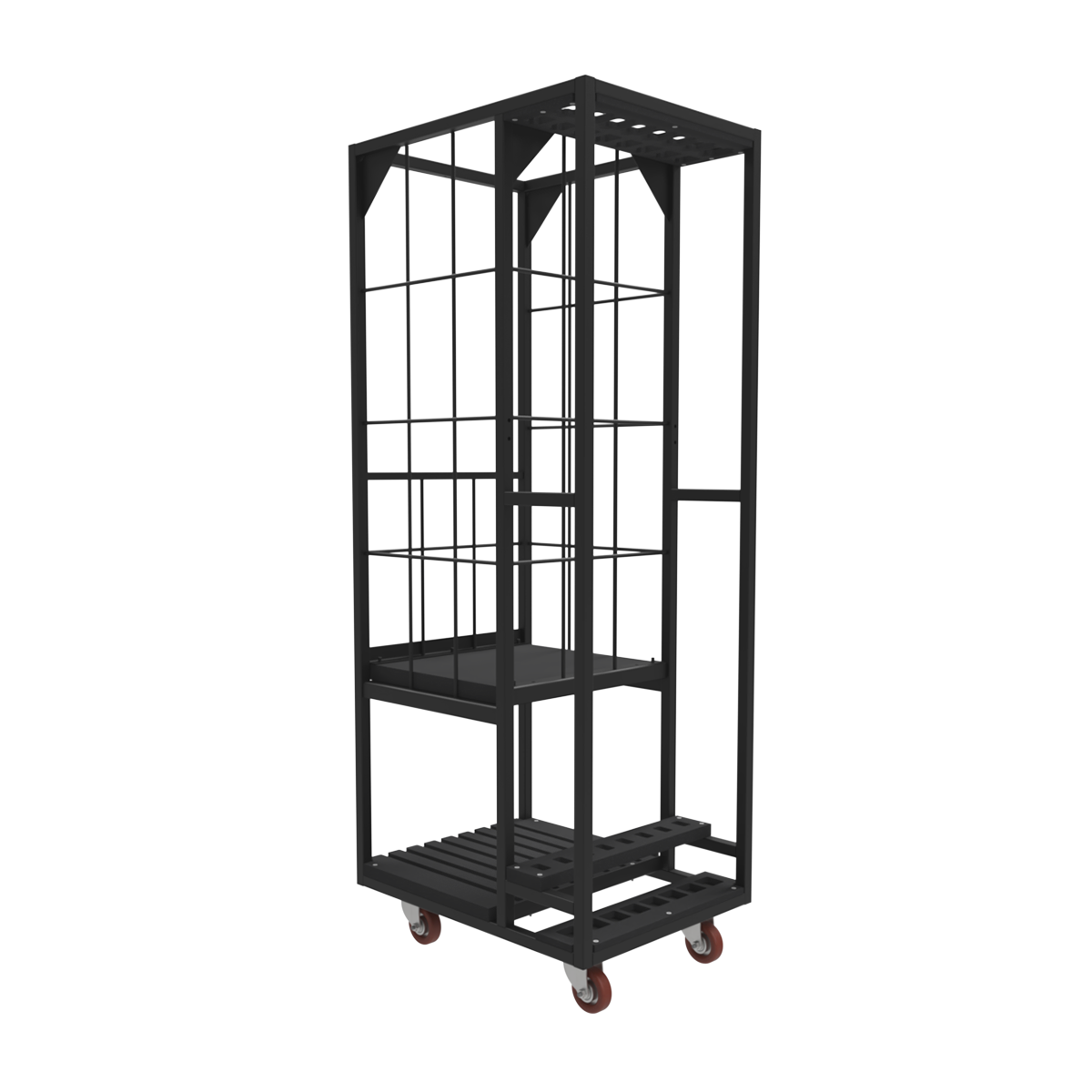

25. Trolley

8750 2375 0427

Weight: 72.00 kg (empty) - 245.00 kg (full)

Fits 8 Uprights, 8 Horizontals, 8 Base Plates and 6 drapes

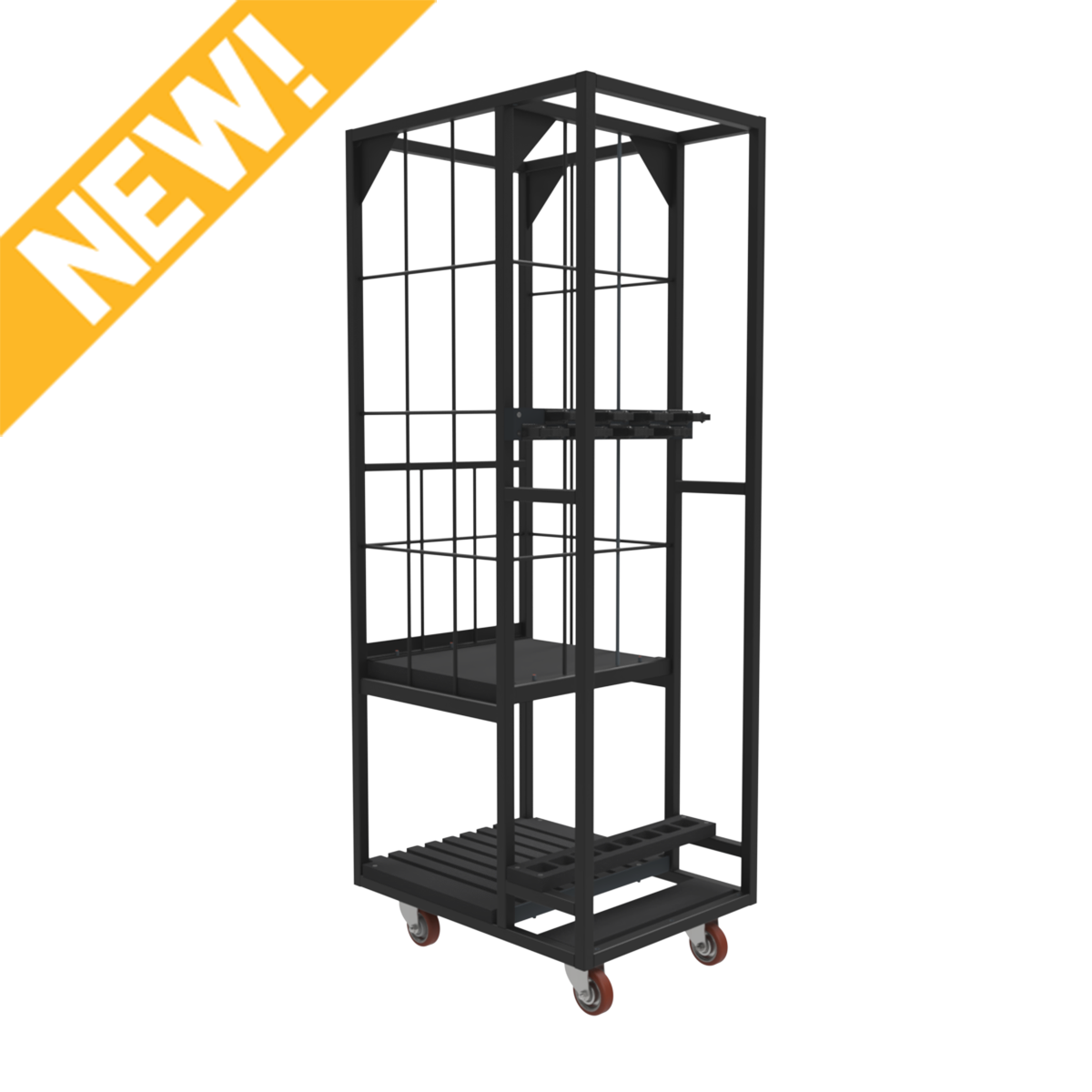

26. Support Trolley

8750 2375 0437

Weight: 70.00 kg (empty) - 196.00 kg (full)

Fits 8 Supports, 8 Base Plates and 6 drapes

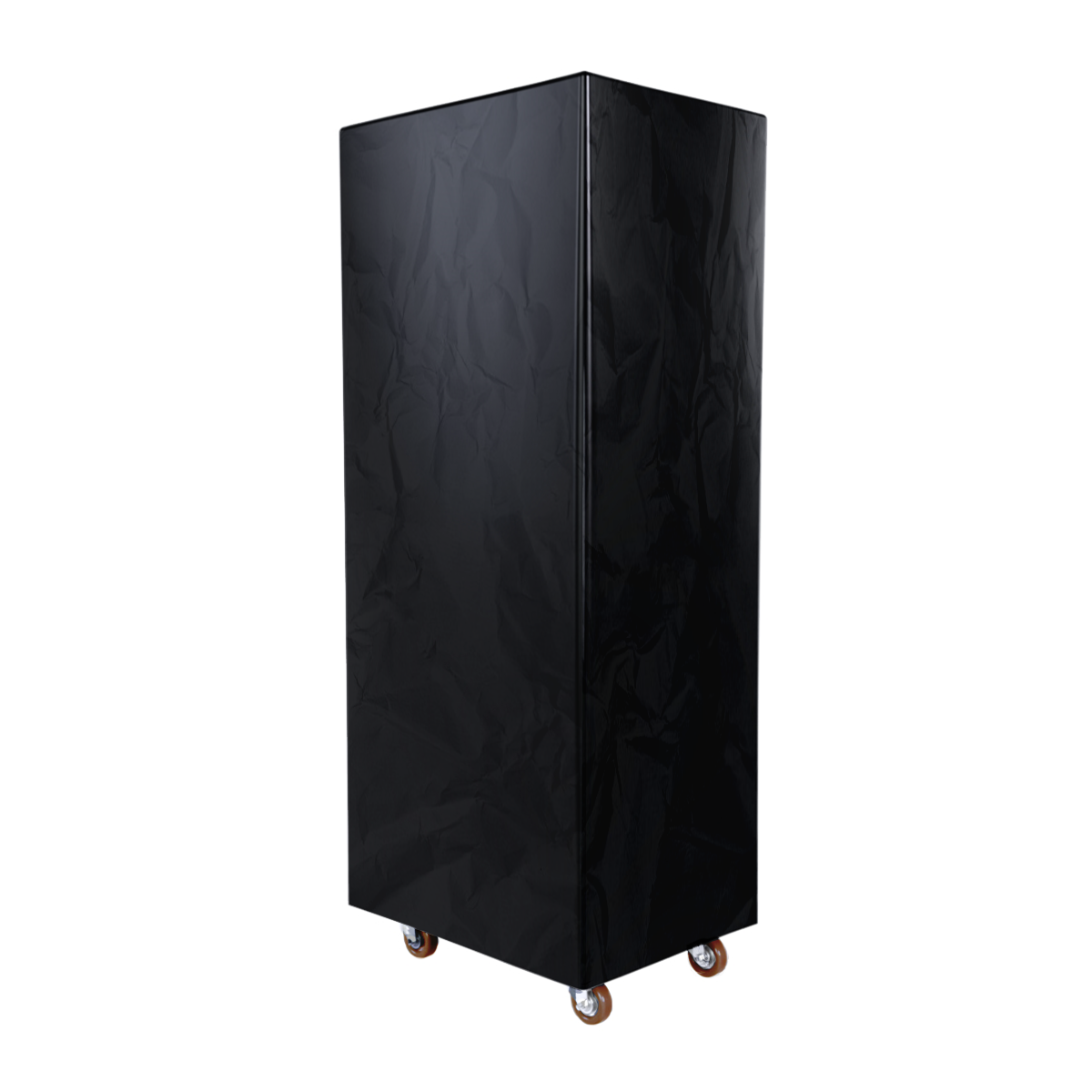

27. Rain Cover for Trolley

8750 2370 0417

Weight: 5.62 kg • PVC • With zipper
