EasyDrape
Accessories Installation
Annex
Annex
No part of this publication may be duplicated or edited in any form or by any means, including any type of electronic or mechanical method without prior written permission from ShowTex.
ShowTex and its employees are fully aware of their task to provide a reliable edition of this document. Nevertheless, they cannot accept any form of liability for the direct or indirect consequences of imperfections that might remain in this edition. The material in this manual is subject to change without notice.
ShowTex warrants that its mechanical and technical products, when delivered in new condition, in original packing, sold directly and used in normal conditions are free from any defects in manufacturing, materials and workmanship. For more information about your local warranty terms, please check our website or contact your local ShowTex office.
All products from the ShowTex Rental range are supposed to be returned in the same state as they were rented. Please treat our products with care, allowing the next user to enjoy the products as much as you did. The rented products are internally checked according to the general rental conditions. Be sure to check our rental guidelines on our website before installing and using this product: ShowTex rental guidelines
Read and understand this user manual before installing and or operating the system. Failure to follow the instructions in this document could result in serious injury!
Following the guidelines of this manual will reduce the risk of damaging the equipment or injuring yourself and the people around you. Nevertheless, ShowTex cannot be held accountable for any use or misuse of the equipment and supplies.
Damage to the system caused by any other method of installation than the one shown in this manual can only be repaired or fixed at the customer’s expense.
As a result of the above warning, any ShowTex product must be installed and operated by a qualified technician who knows its capabilities as well as its limitations.
In case you are uncertain about the eligibility of any hardware in your product, please get in touch with your local ShowTex office to receive additional guidance.
Thank you for choosing for ShowTex and purchasing one of our products. We want to ensure that your experience is as smooth and safe as possible, so we kindly request that you take a few moments to carefully read this manual before installing your new system.
This manual contains important information that will help you comply with health and safety regulations, as well as provide guidance on how to safely install, operate and maintain your product. Our team has taken great care to ensure that this manual is easy to understand and follow, using straightforward language and clear illustrations.
If you have any questions or concerns regarding the installation or use of your product, please feel free to contact your local ShowTex office. Our knowledgeable team members are always available to assist you and answer any questions you may have.

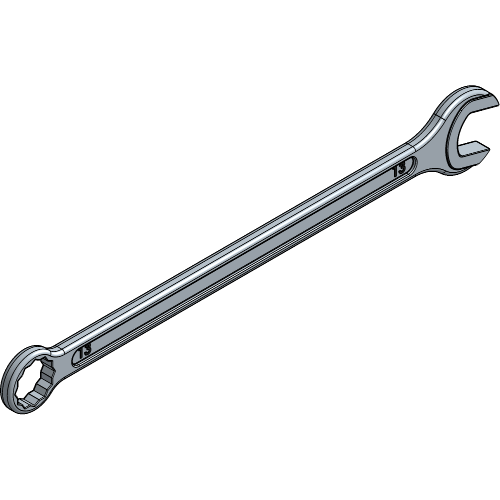

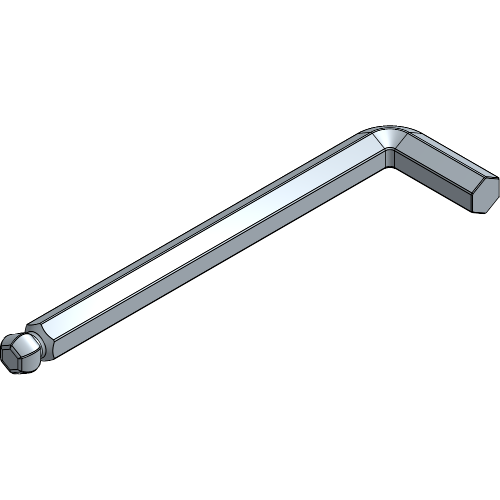

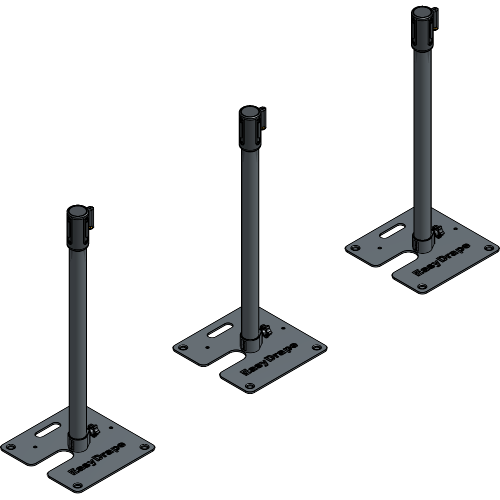

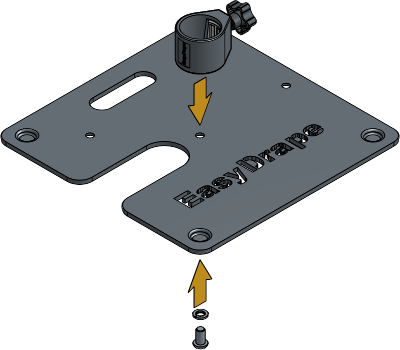

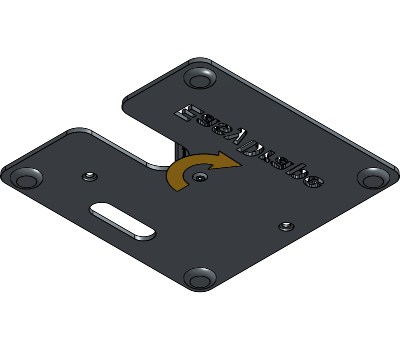

Place the Base Plate Coupler on top of the Front of House Base Plate and fasten the screw. Repeat this for every Base Plate that will contain a Retractable Belt Upright.

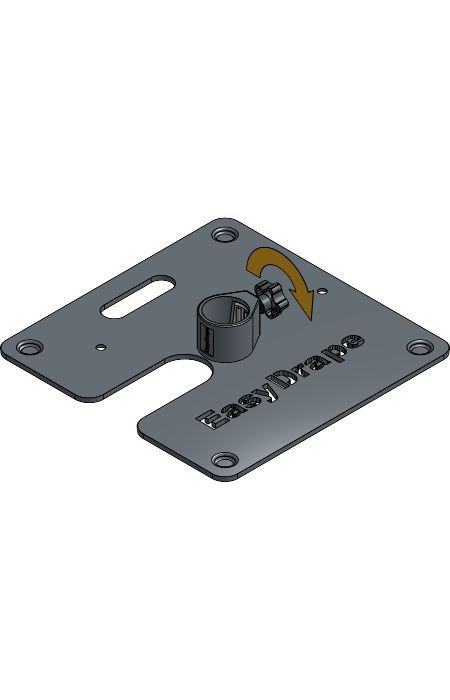

Loosen the Turn Button of the Base Plate Coupler until it fits a Retractable Belt Upright.

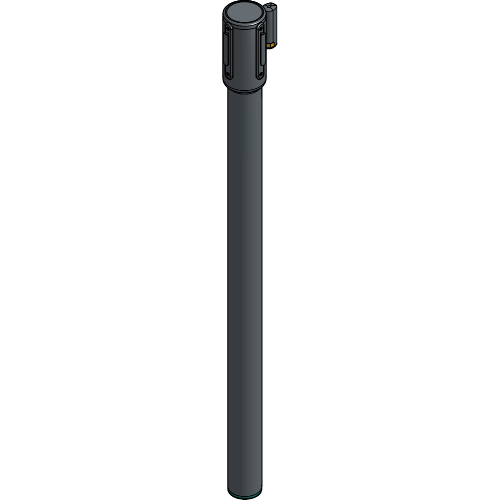

Place the Retractable Belt Upright inside the Base Plate Coupler. Fasten the Turn Button and repeat this for all Retractable Belt Uprights.
Place all assembled Retractable Belt Uprights at the proper distance from one another depending on your setup.

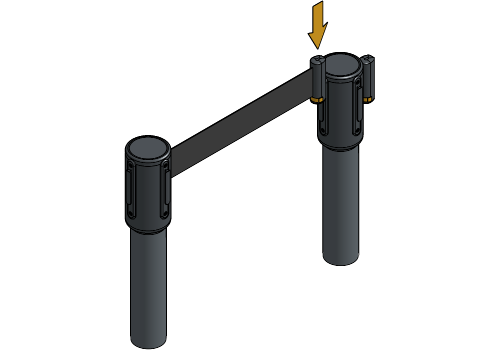

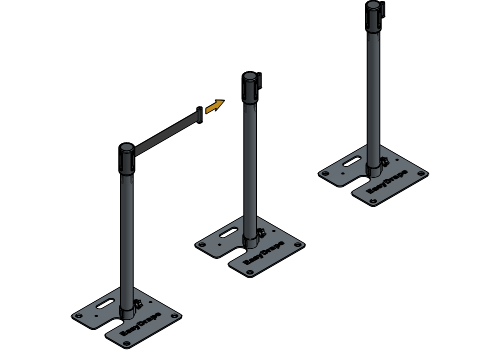

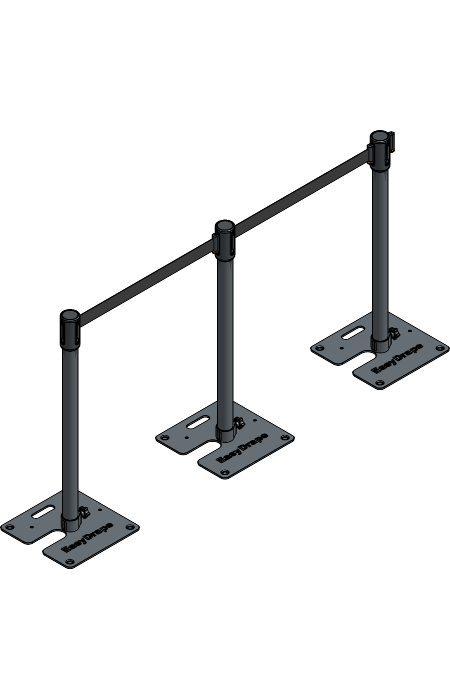

Extend the Retractable Belt from one Upright to another. Slide it on the Upright it has been extended to until you hear a clicking sound.
Repeat until you have the desired amount for your needed setup.
Your Retractable Belt setup is now completely installed and ready to use!

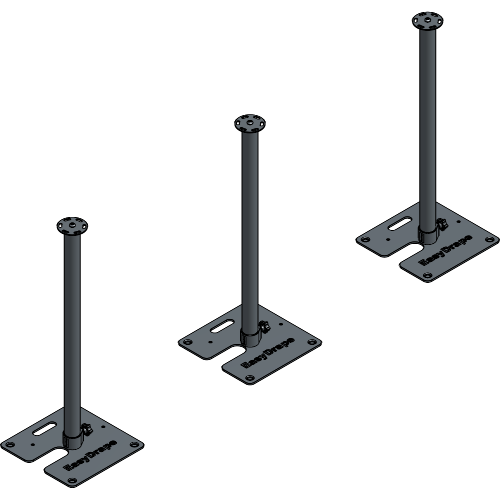

Place the Base Plate Coupler on top of the Front of House Base Plate and fasten the screw. Repeat this for every Base Plate that will contain a Hanging Rope Upright.

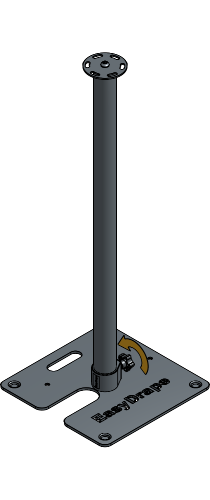

Loosen the Turn Button of the Base Plate Coupler until it fits a Hanging Rope Upright.

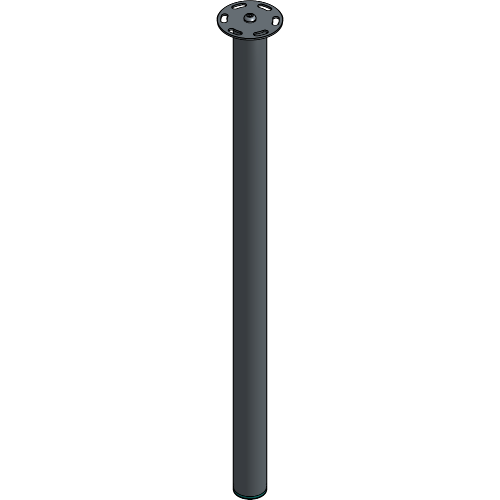

Place the Hanging Rope Upright inside the Base Plate Coupler. Fasten the Turn Button and repeat this for all Hanging Rope Uprights.
Place all assembled Hanging Rope Uprights at the proper distance from one another depending on your setup.

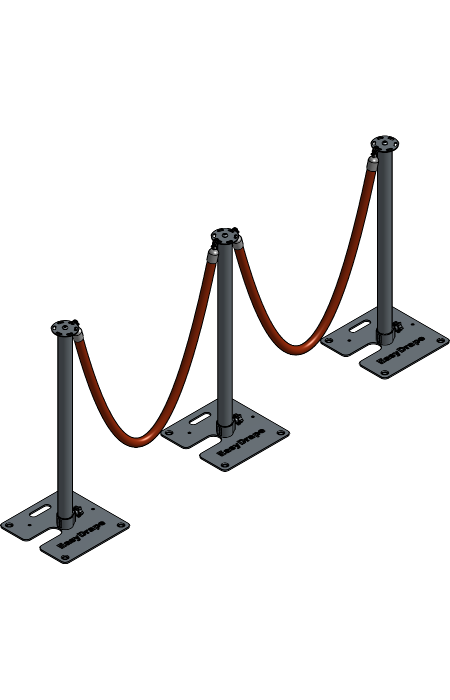

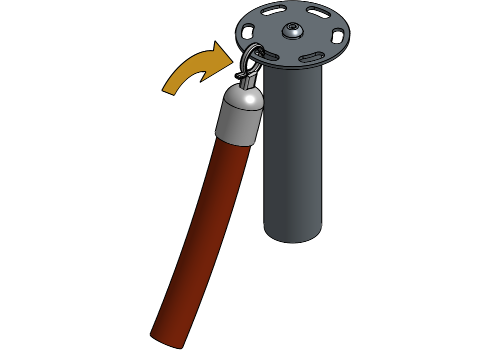

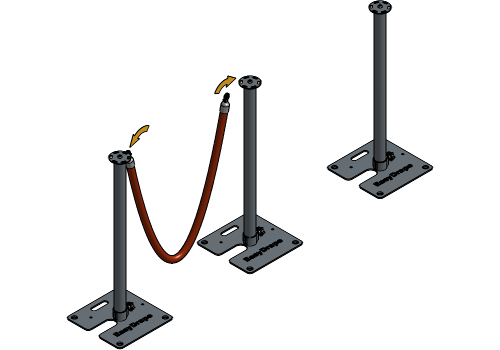

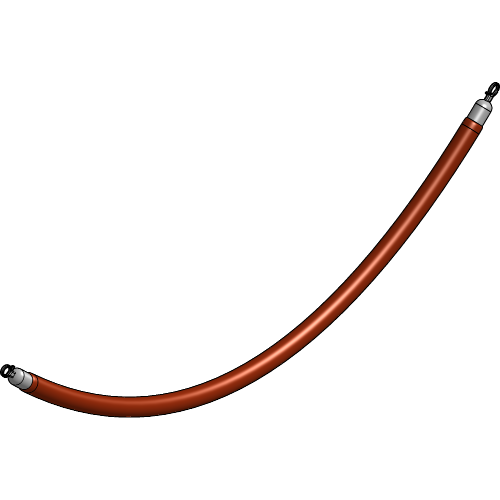

Hang the Velvet Hanging Rope with one snap hook to a Hanging Rope Upright and the other snap hook to another Hanging Rope Upright.

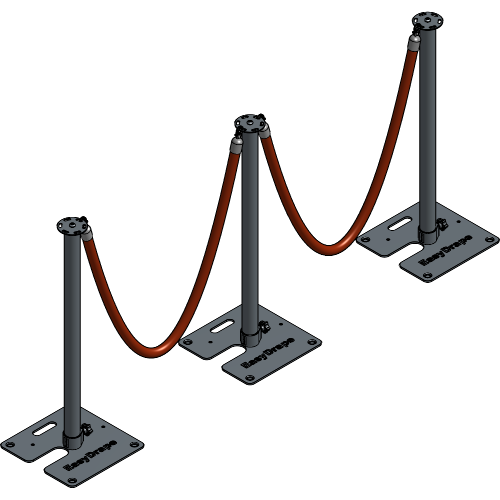

Repeat until you have the desired amount for your needed setup.
Your Hanging Rope setup is now completely installed and ready to use!

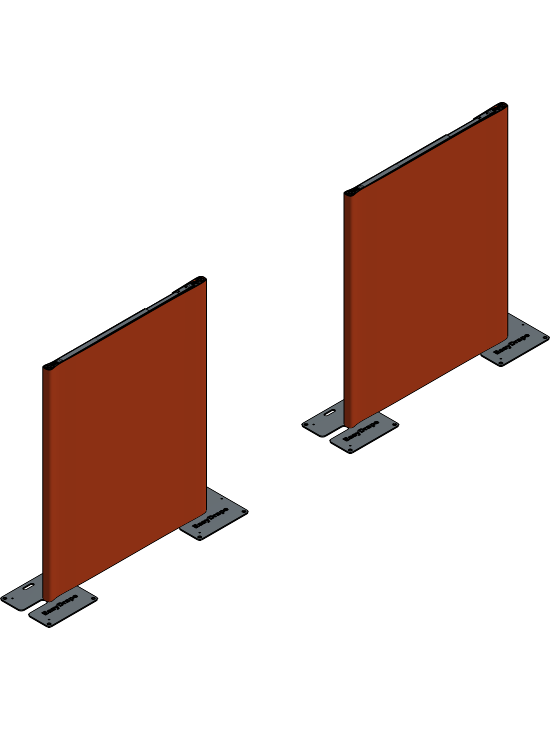

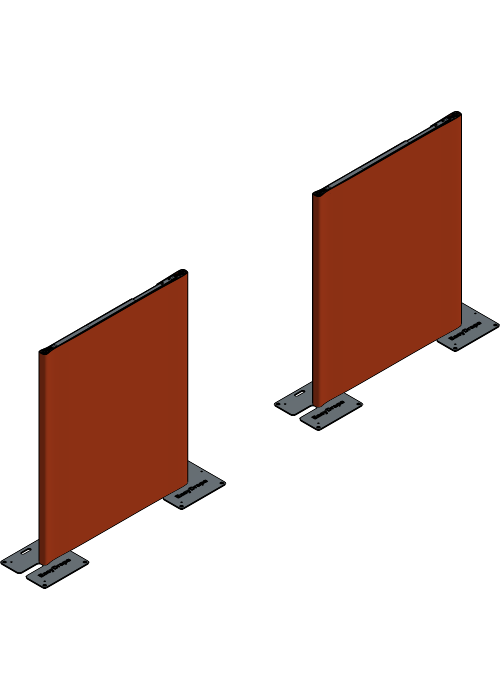

Follow all necessary steps for your setup in the General Manual of the EasyDrape and continue when your setup is ready.

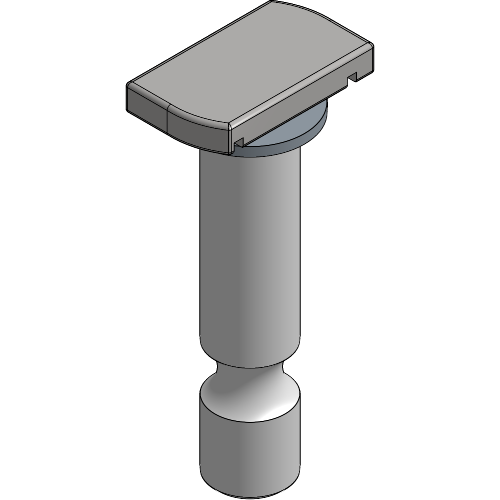

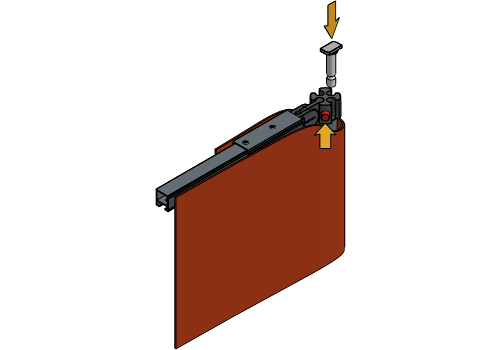

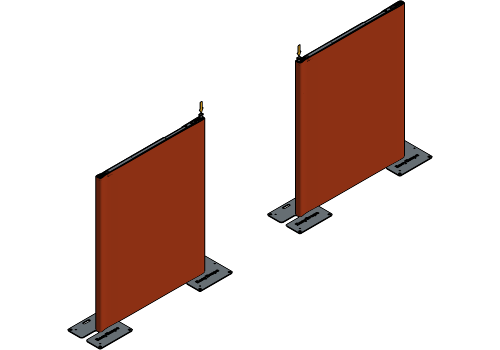

Push and hold the red button of the 4-Way and place both 4-Way Track Connectors inside the opposite slot of where the Horizontal is placed. Release the red button to lock the 4-Way Track Connector in place.

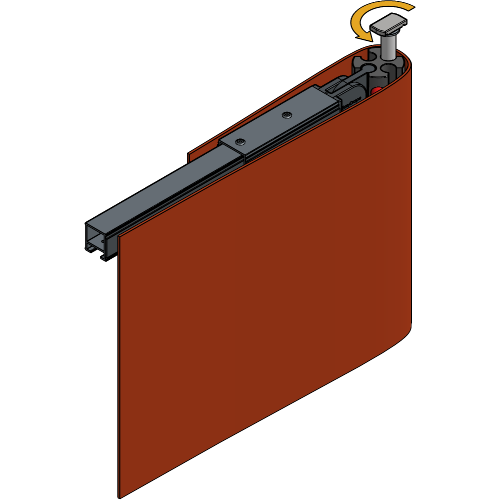

Loosen the channel nuts of the 4-Way Track Connectors until they fit inside the track profile.

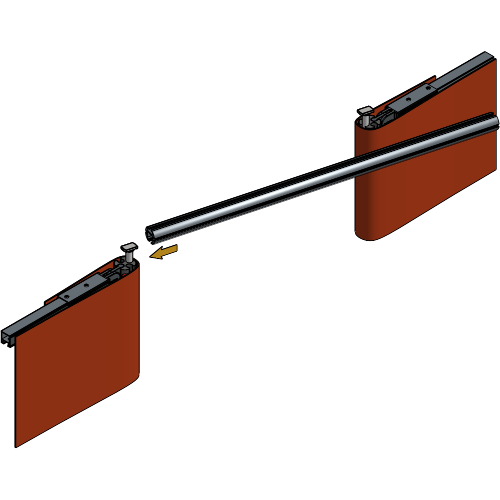

Slide the track profile on one of the channel nuts of the 4-Way Track Connectors.

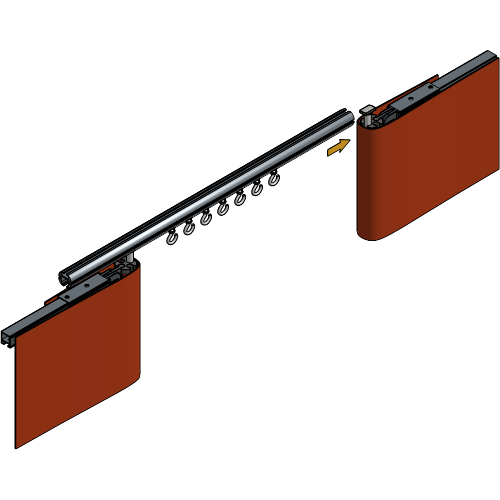

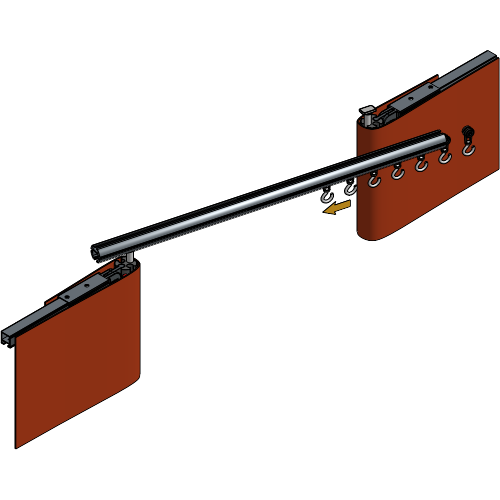

Hold the track profile up while you insert the amount of Runners needed for your setup into the track profile.
Slide the track profile on the channel nut of the second 4-Way Track Connector.

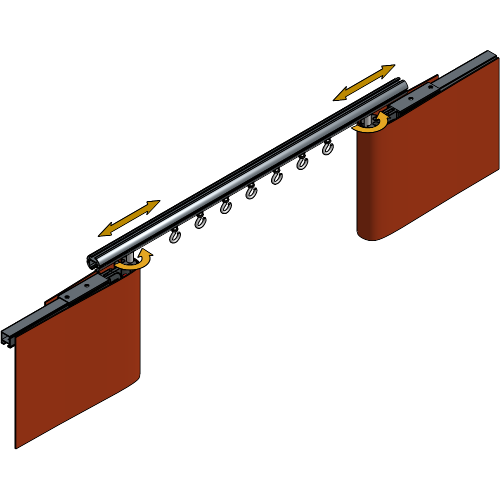

Adjust the location of the track if necessary and turn the 4-Way Track Connectors to fasten the track.

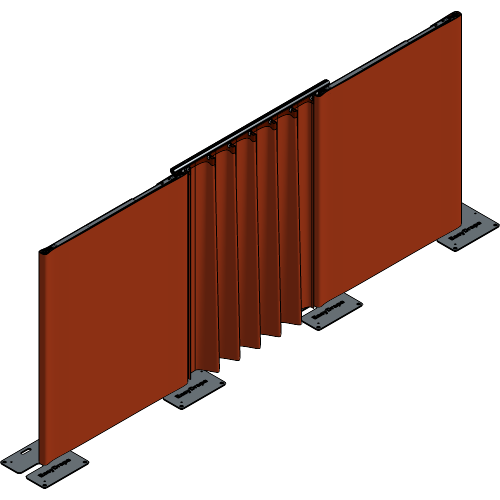

Attach your curtain to the Runners.
Your ShowPipe on top setup is now completely installed and ready to use!
Follow all necessary steps for your setup in the General Manual of the EasyDrape and continue when your setup is ready.

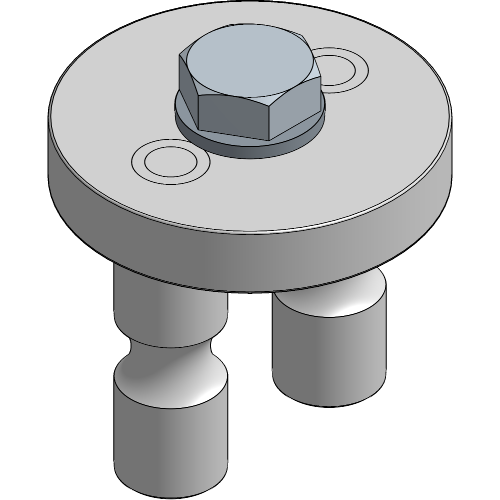

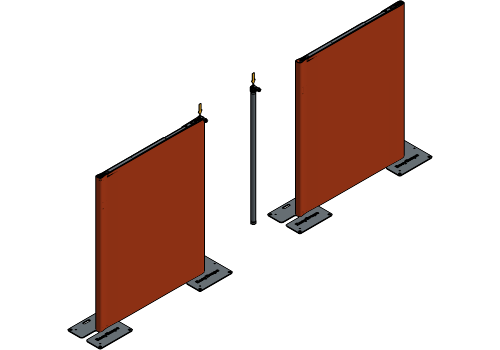

Push and hold the red button of the 4-Way and place both 4-Way Adaptors with the Offset Plate inside the slots of the 4-Way. Release the red button to lock the 4-Way Adaptor in place.

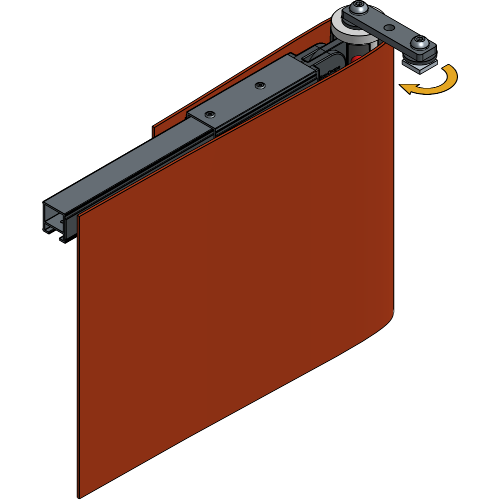

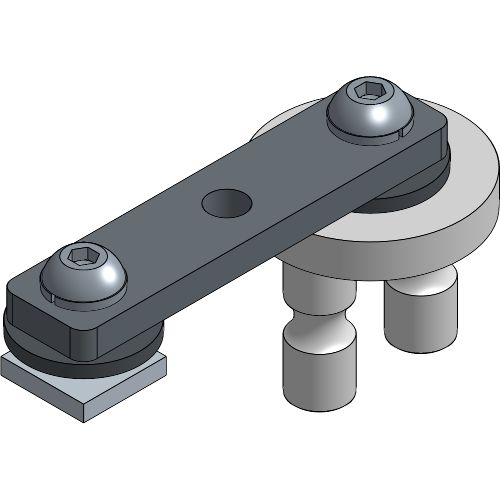

Loosen the channel nuts of the Offset Plates until they fit inside the track profile.

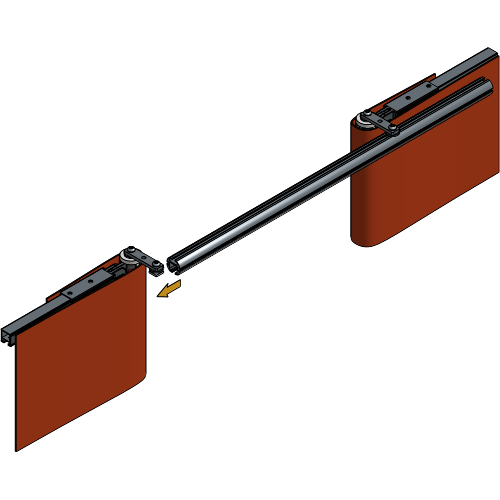

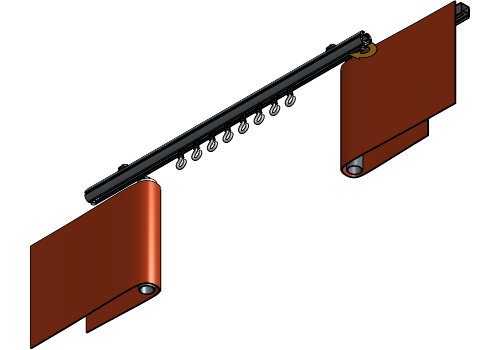

Slide the track profile on the channel nuts of the Offset Plate and leave about 25 cm on each side for a nice close.
Tighten the bolts of both Offset Plates.

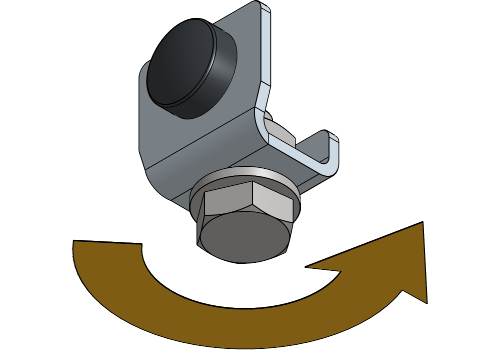

Loosen the bolt of the End Stops until they fit inside the track profile.

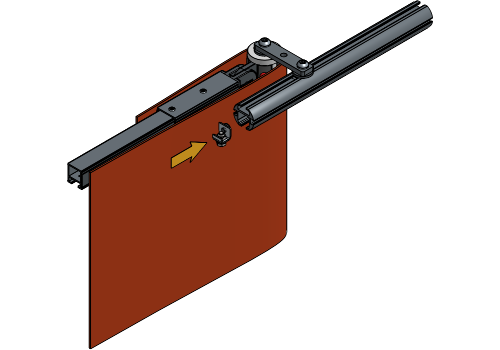

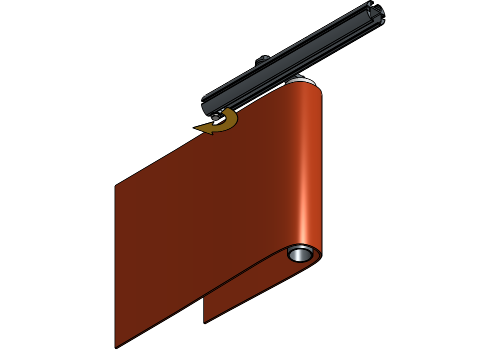

Insert one End Stop into the track profile and tighten the bolt to secure it.

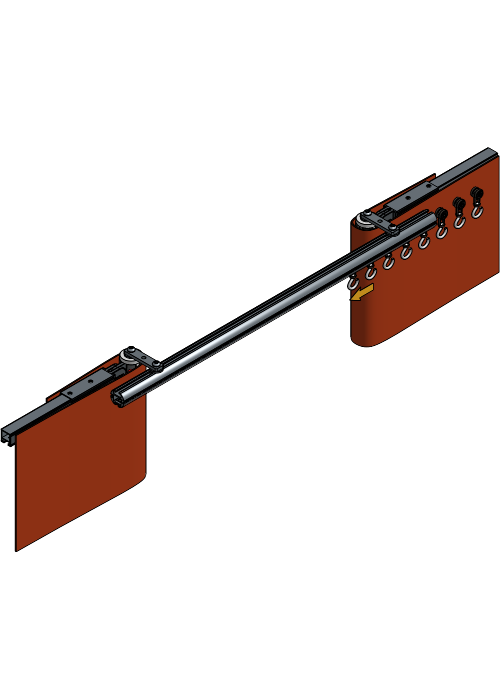

Insert the amount of Runners needed for your setup into the track profile.

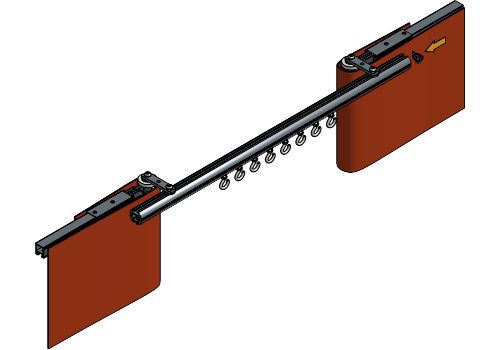

Insert the second End Stop into the track profile and tighten the bolt to secure it.

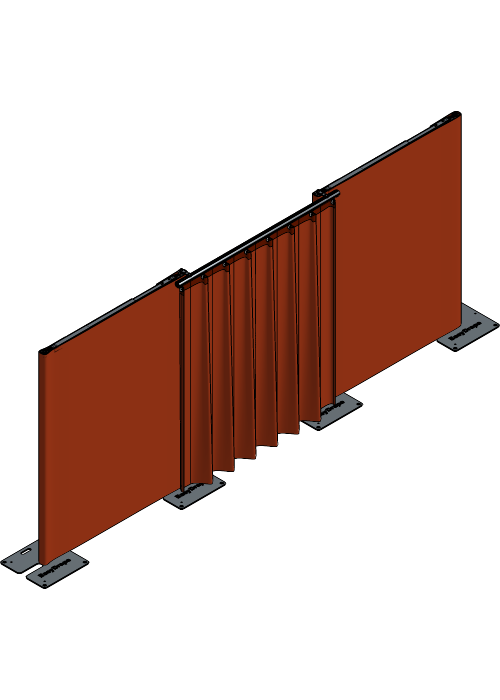

Attach your curtain to the Runners.
Your ShowPipe in front setup is now completely installed and ready to use!
For more technical assistance, please contact your local ShowTex
office.
The address and contact information can be found on our website:
www.showtex.com
