ShowPipe轨道

更坚固的铝质轨道，与H100轨道具有相同的特性。

该轨道系统装配简单，安装快速
ShowPipe可装嵌在我们50毫米的铝管内，从而完美地与EasyDrape系统结合使用，达到灵活布置幕布的目的。
ShowPipe可通过DMX控制。

ShowPipe可兼容Rope Drive马达系列

配件	产品代码	信息

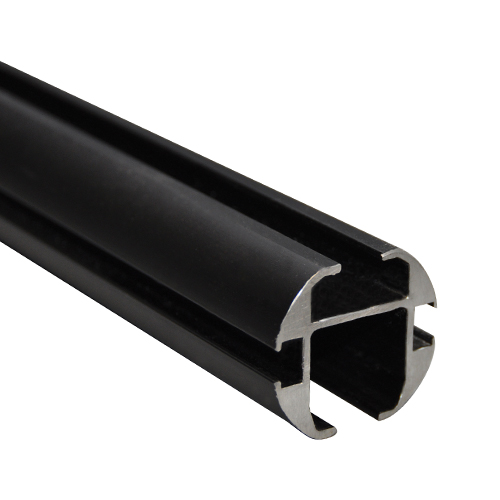

01. Track	8055 0001 6007	Weight: 1.31 kg/m • Length: 6.00 m • Black
02. Curved Track 45°	8055 0004 0757	Weight: 1.54 kg • Radius: 0.75 m • Black
	8055 0004 1007	Weight: 2.06 kg • Radius: 100 cm • Black

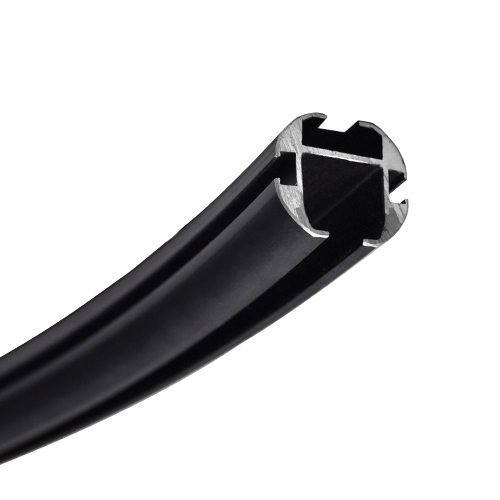

03. Curved Track 90°	8055 0007 0507	Weight: 1.54 kg • Radius: 0.50 m • Black
	8055 0007 0757	Weight: 1.54 kg • Radius: 0.75 m • Black
	8055 0007 1007	Weight: 2.06 kg • Radius: 1.00 m • Black
04. Custom-made Track	8055 0007 0007	Weight: 1.31 kg/m • Custom-made • Black
05. Joint set	8055 0042 1507	Weight: 0.11 kg • Set of 2 pieces • Black

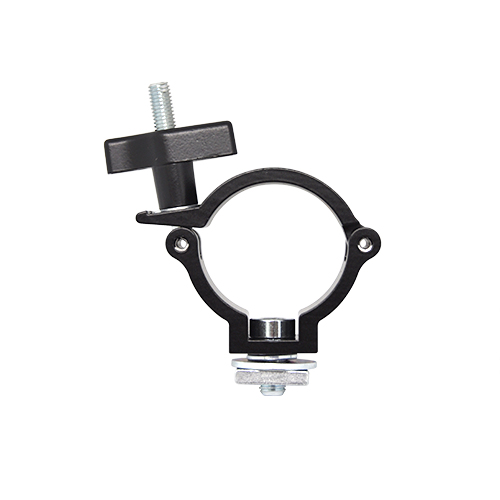

06. Half Coupler Clamp 100 kg	8055 0680 0757	Weight: 0.40 kg • ⌀ 48-51 mm • M10 • WLL: 100 kg SF: 5:1 • Black

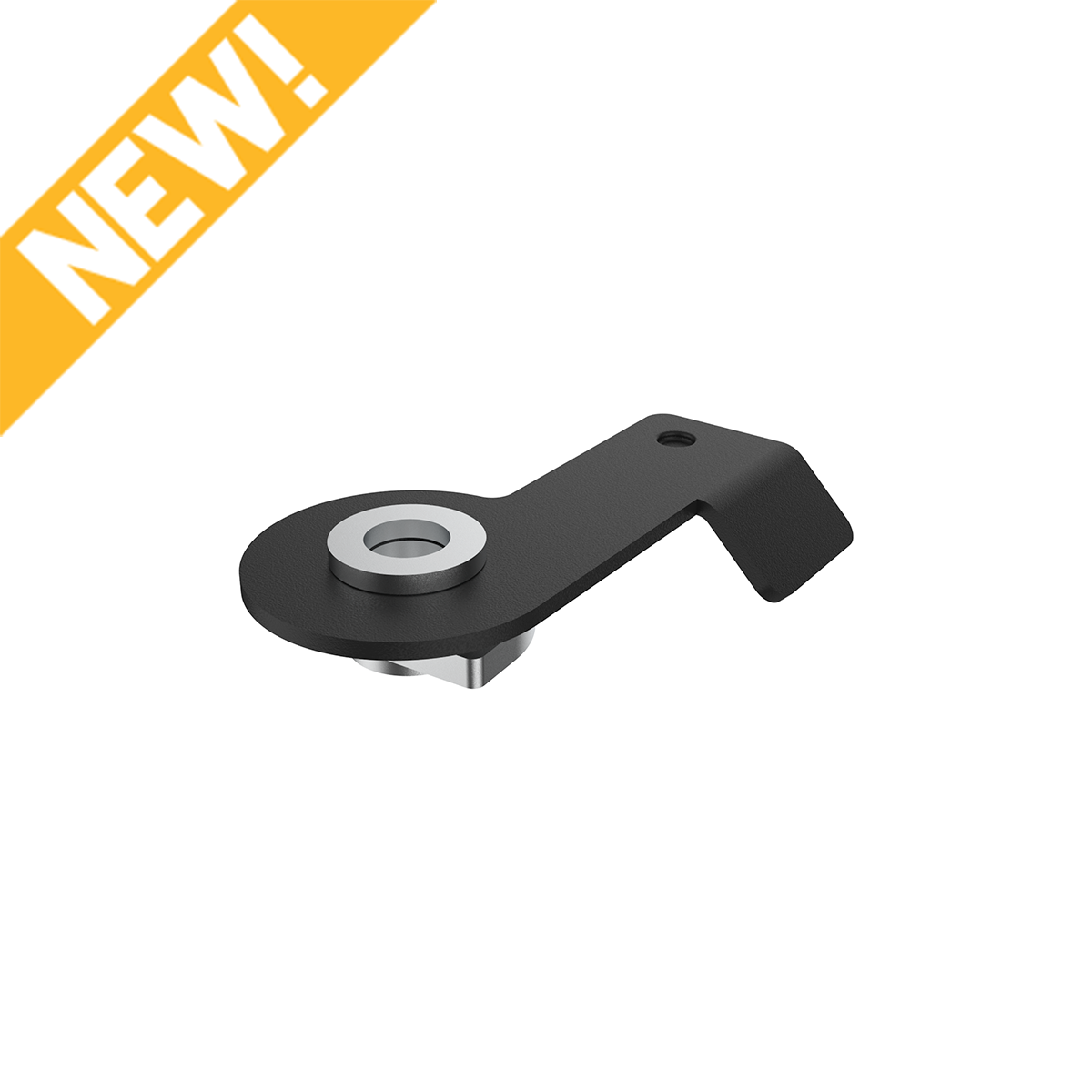

07. Hidden Ceiling Bracket	8055 0110 0027	Weight: 0.02 kg • WLL: 40 kg SF: 2:1 • Black

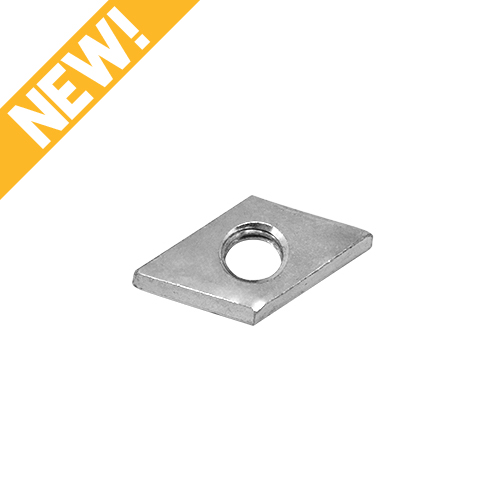

08. Diamond-Shaped Channel Nut	8700 9224 0011	Weight: 0.01 kg • M10
09. Square-Shaped Channel Nut	8055 9224 0007	Weight: 0.02 kg • M10

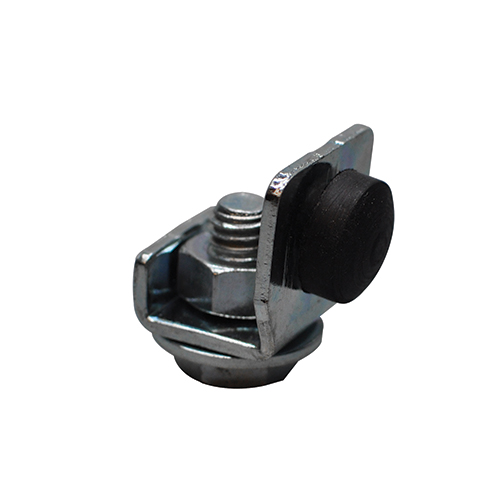

10. End Stop	8050 0050 0001	Weight: 0.03 kg

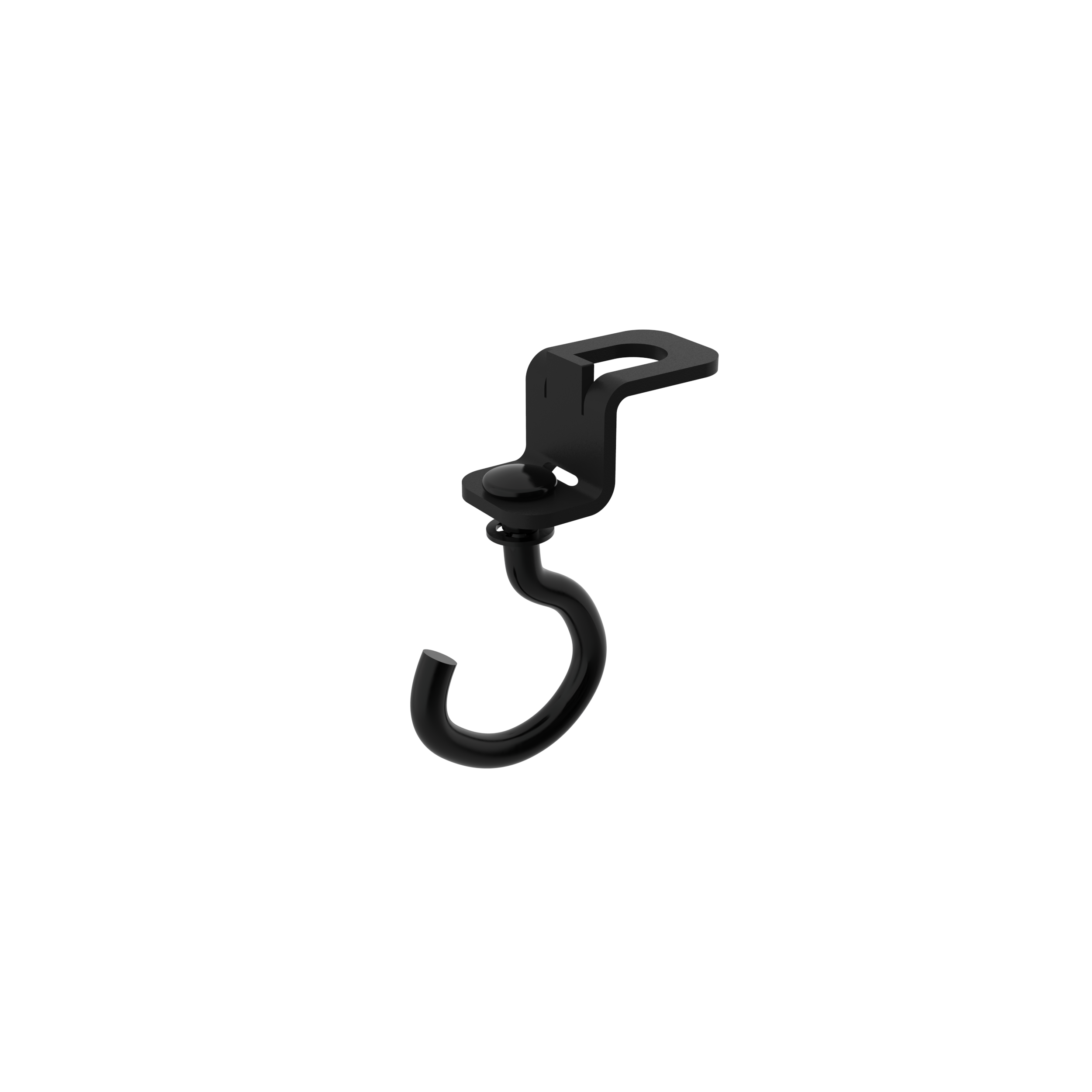

11. End Stop Swivel Hook Add-On	8050 0050 0017	Weight: 0.02 kg • Black
	8050 0050 0011	Weight: 0.02 kg • Galvanised

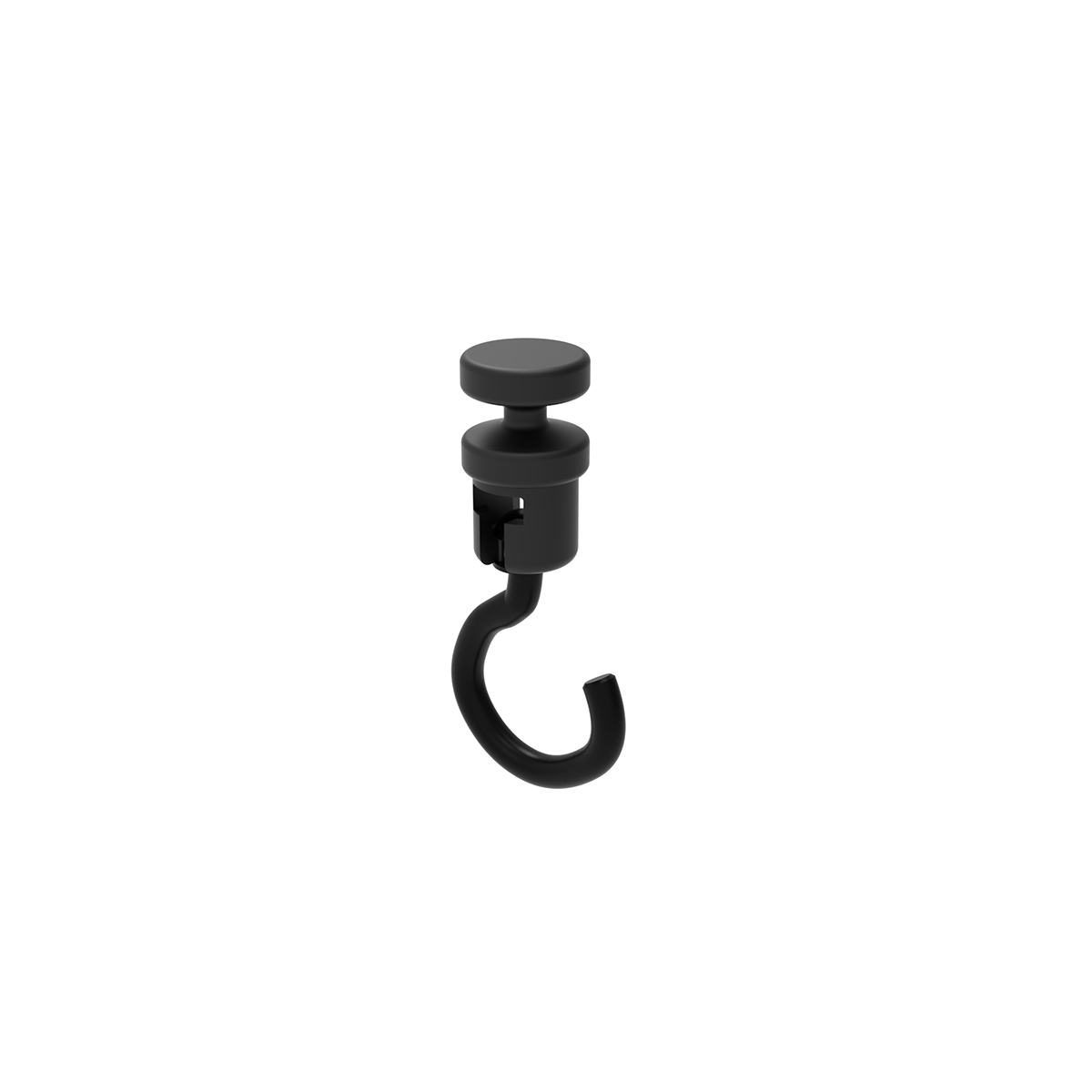

12. Glider	8067 0195 0007	Weight: 0.03 kg • With Swivel Hook • Black

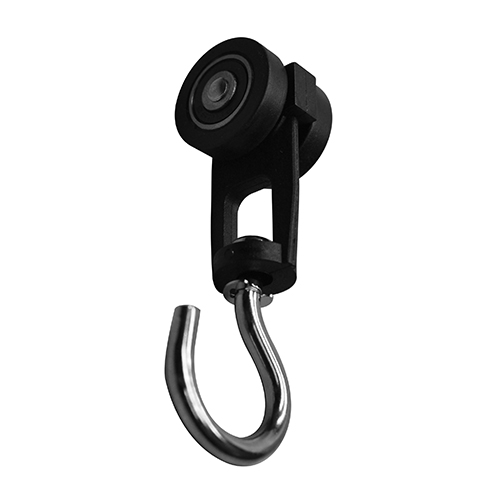

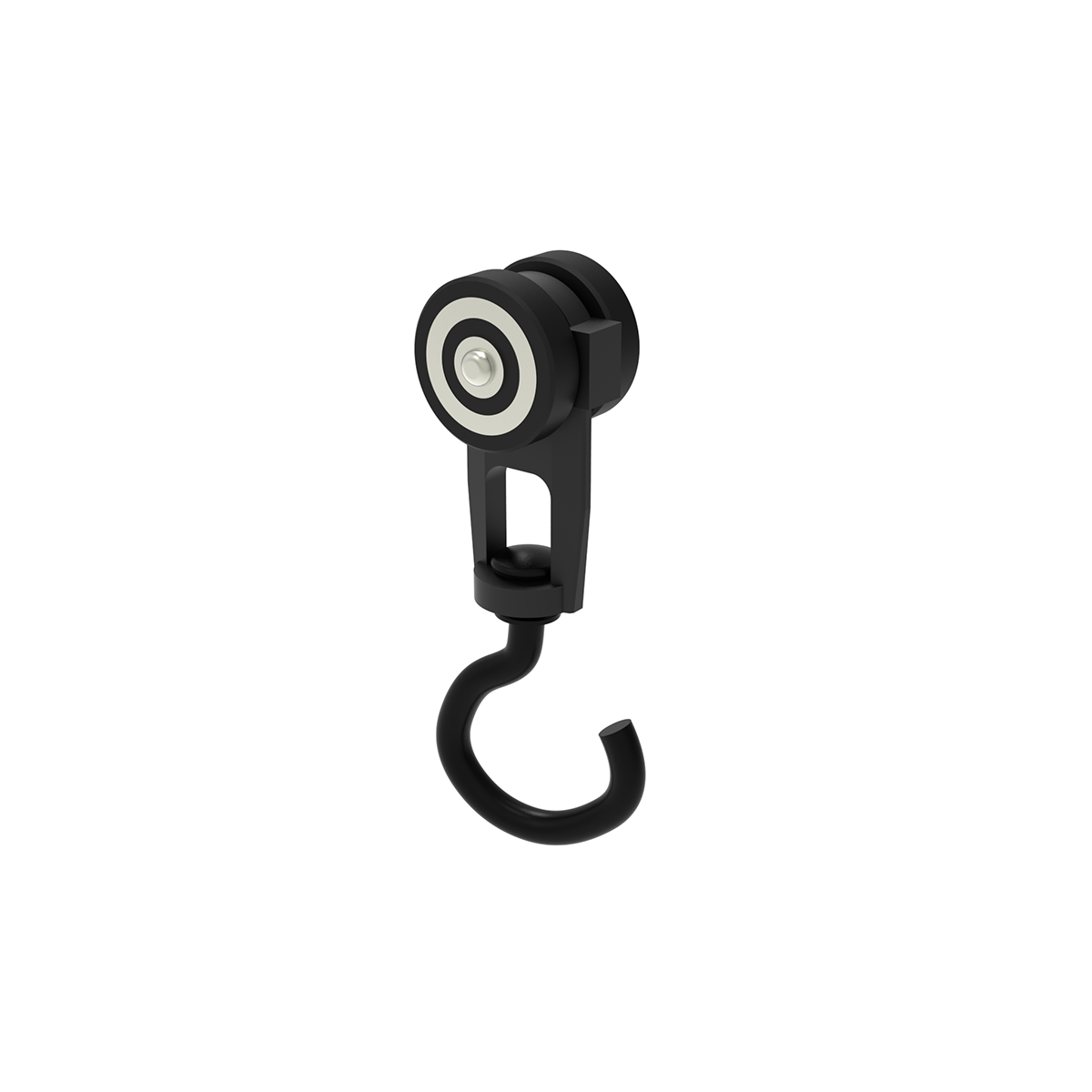

13. Runner	8050 0205 008#	Weight: 0.03 kg • Ball-raced • With Swivel Hook • WLL: 8 kg SF 2:1

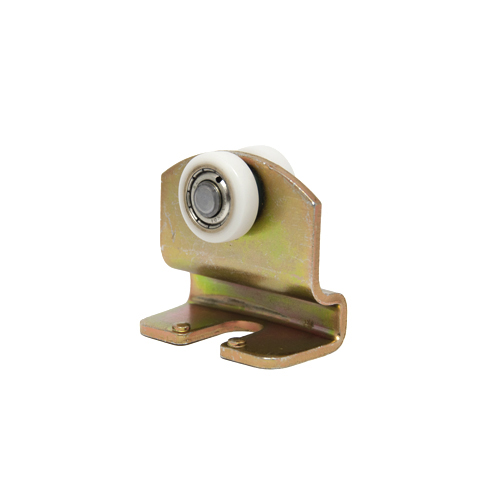

14. Scenery Carrier	8055 0230 0002	Weight: 0.11 kg • Ball-raced • WLL: 60 kg SF: 2:1

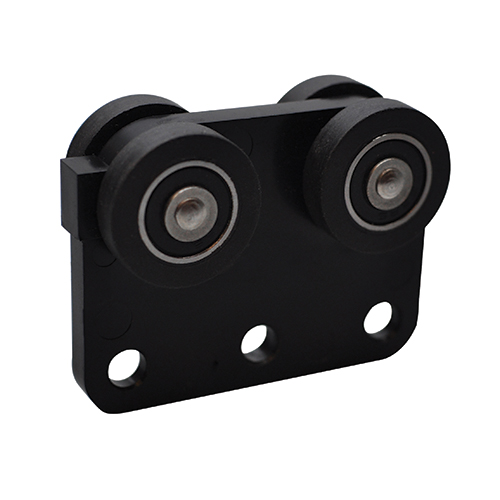

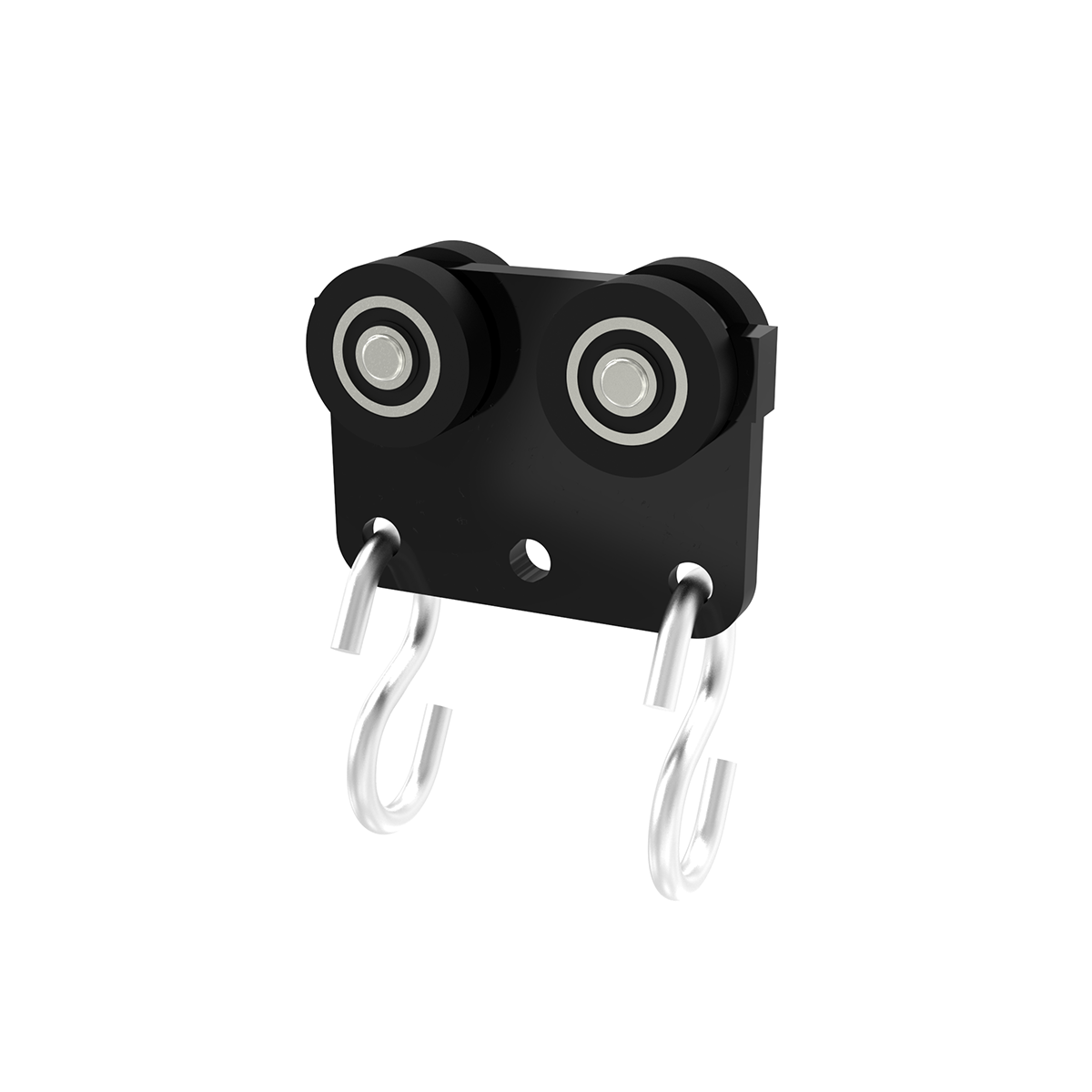

15. Master Carrier	8050 0221 016#	Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1

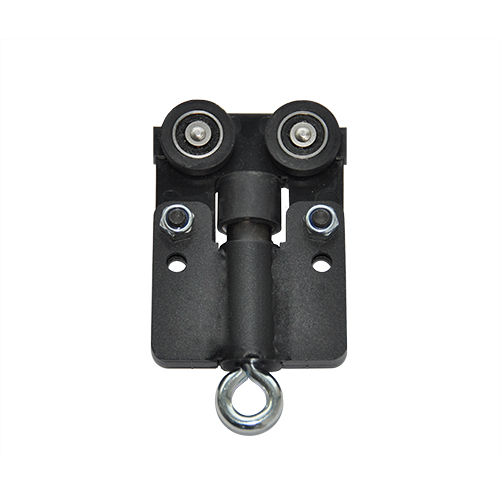

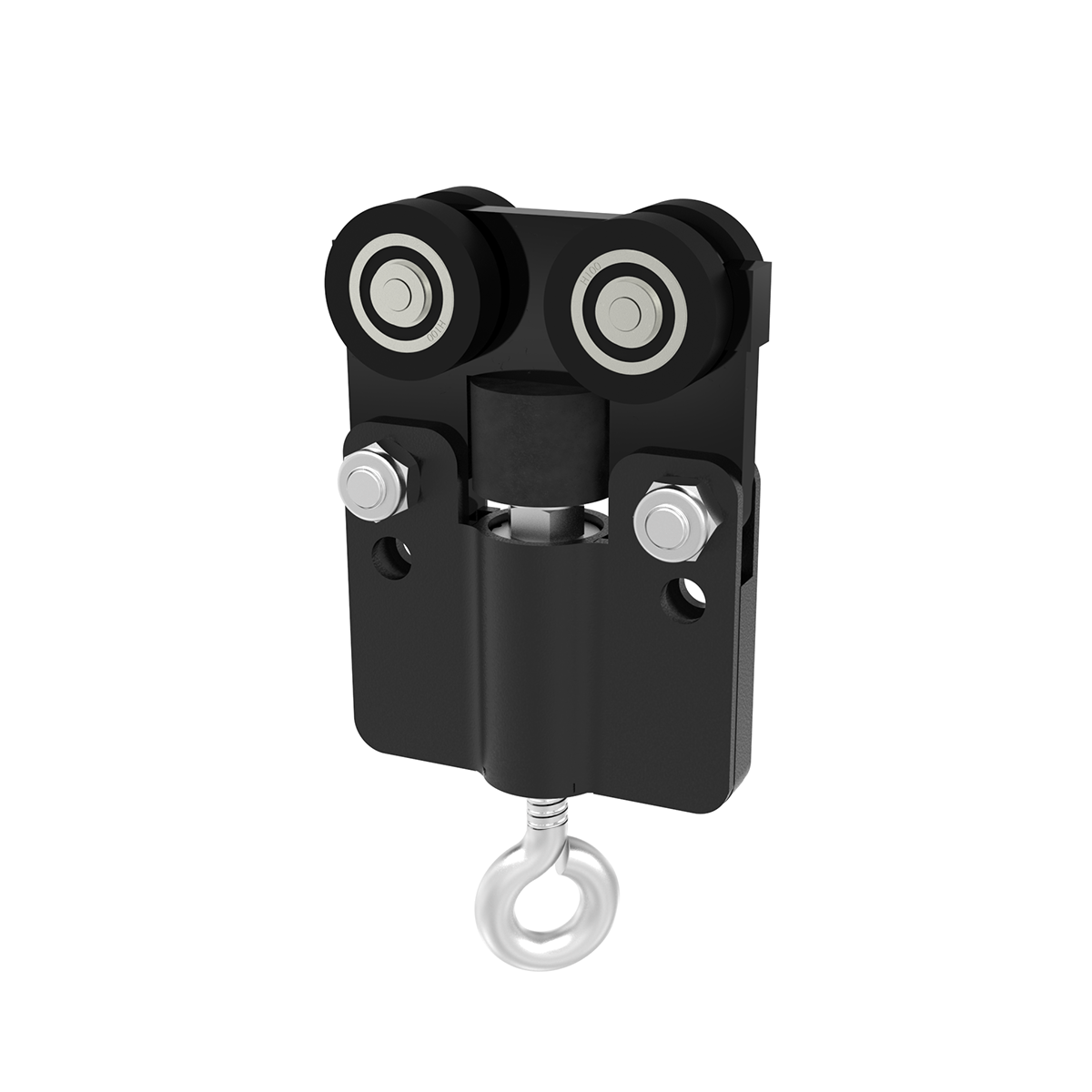

16. Master Carrier with Brake	8050 0221 0197	Weight: 0.22 kg • Ball-raced • WLL: 15 kg SF: 2:1

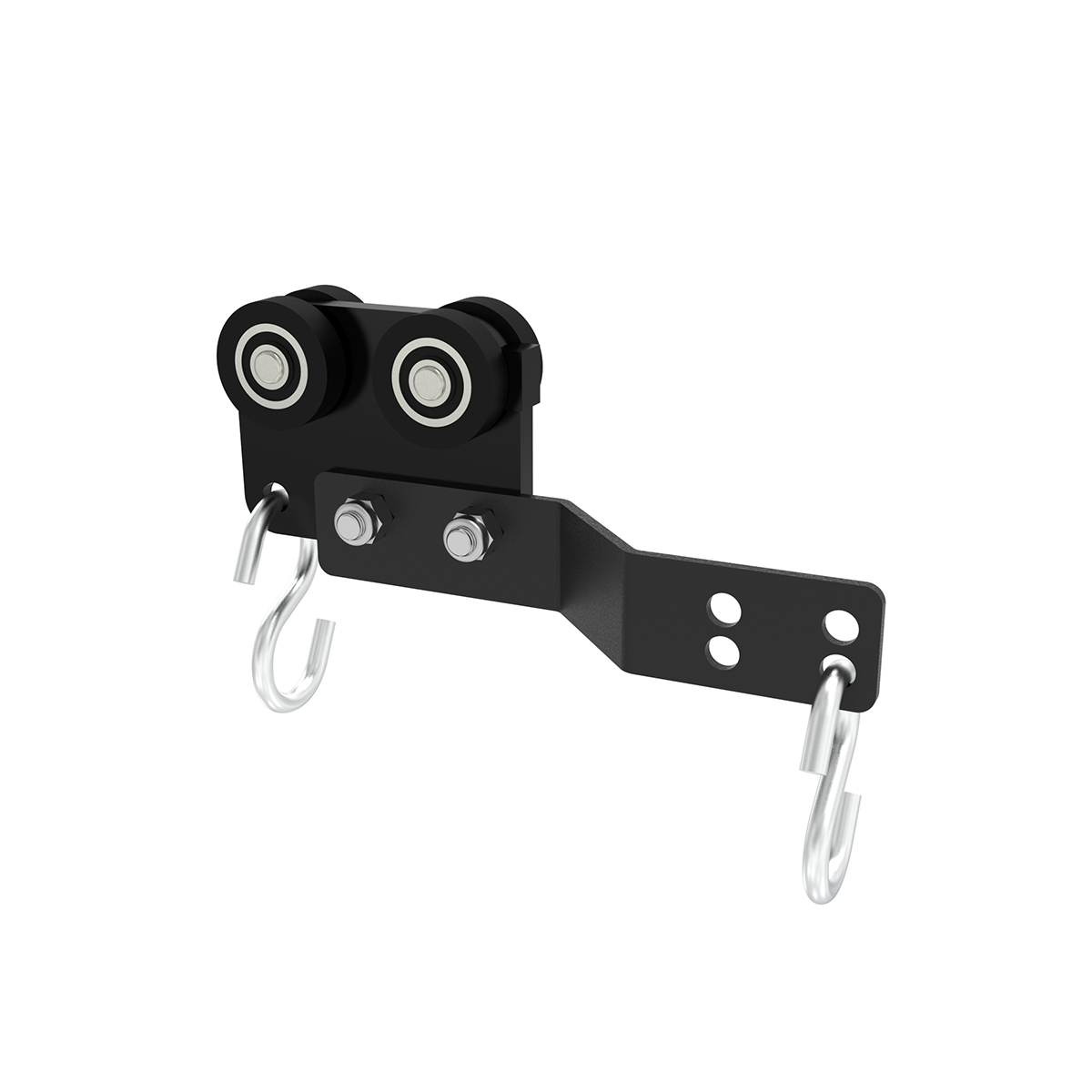

17. Short Overlap Master Carrier	8050 0245 0057	Weight: 0.09 kg • Ball-raced

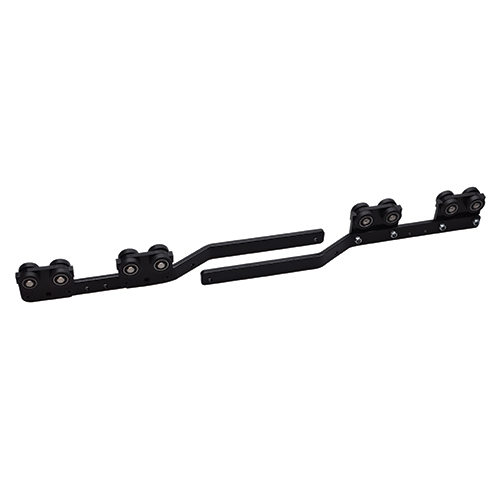

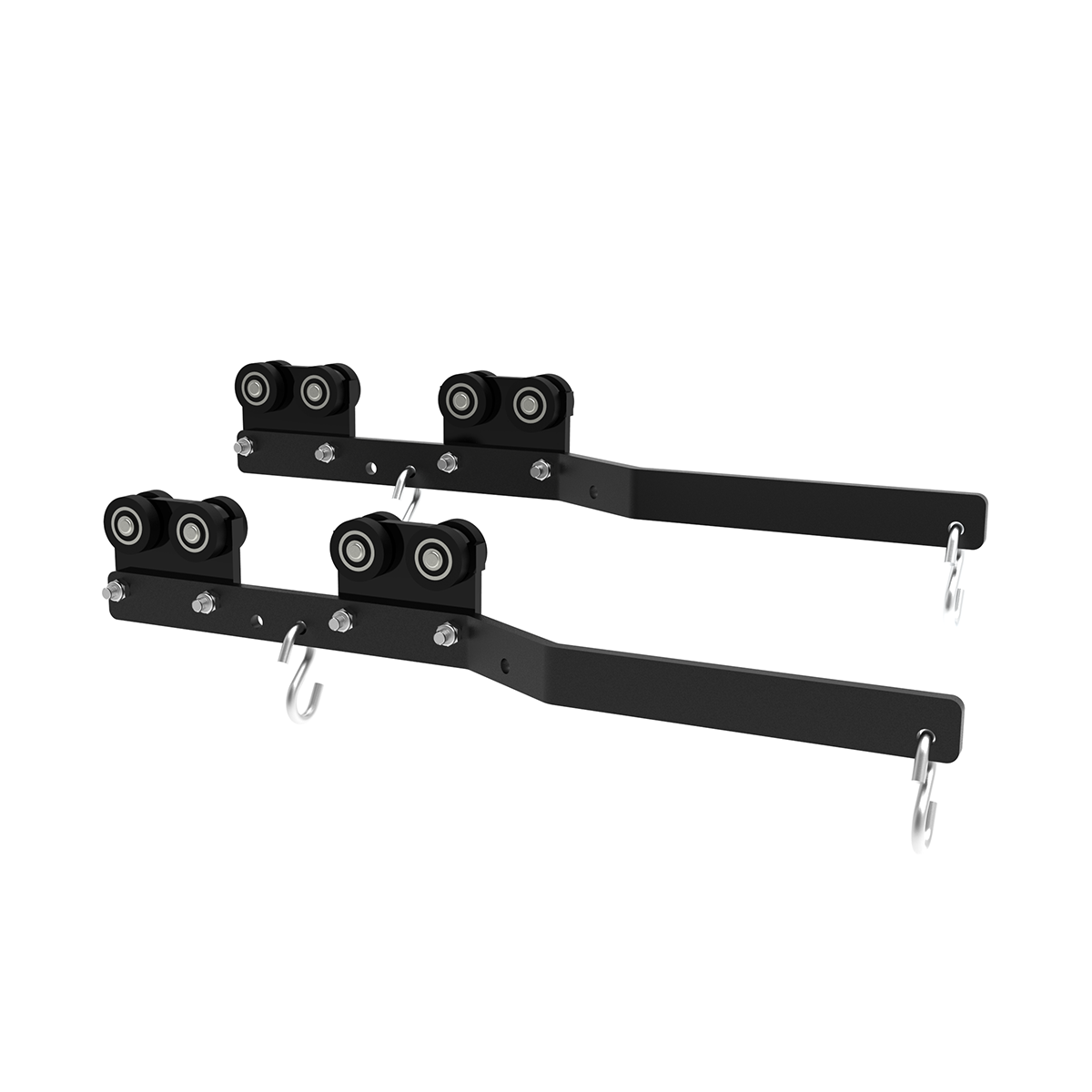

18. Overlap Master Carrier set	8050 0246 0167	Weight: 0.82 kg • Ball-raced • Set of 2 pieces

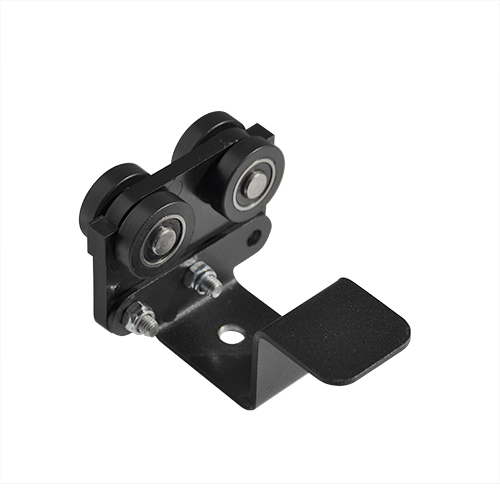

19. Master Carrier for Motor	8050 0228 016#	Weight: 0.12 kg • Ball-raced

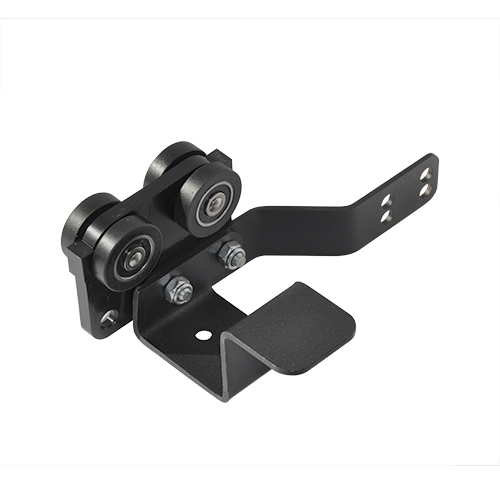

20. Short Overlap Master Carrier for Motor	8050 0245 1057	Weight: 0.09 kg • Ball-raced

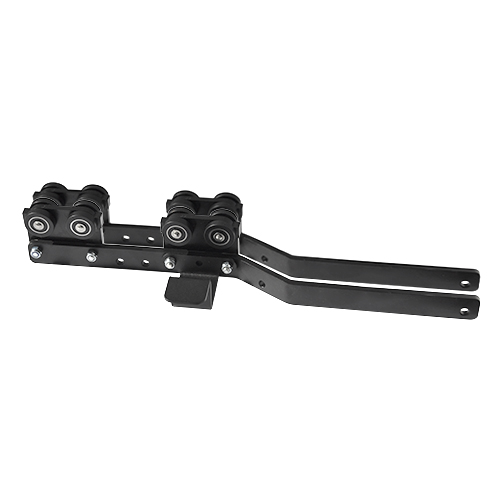

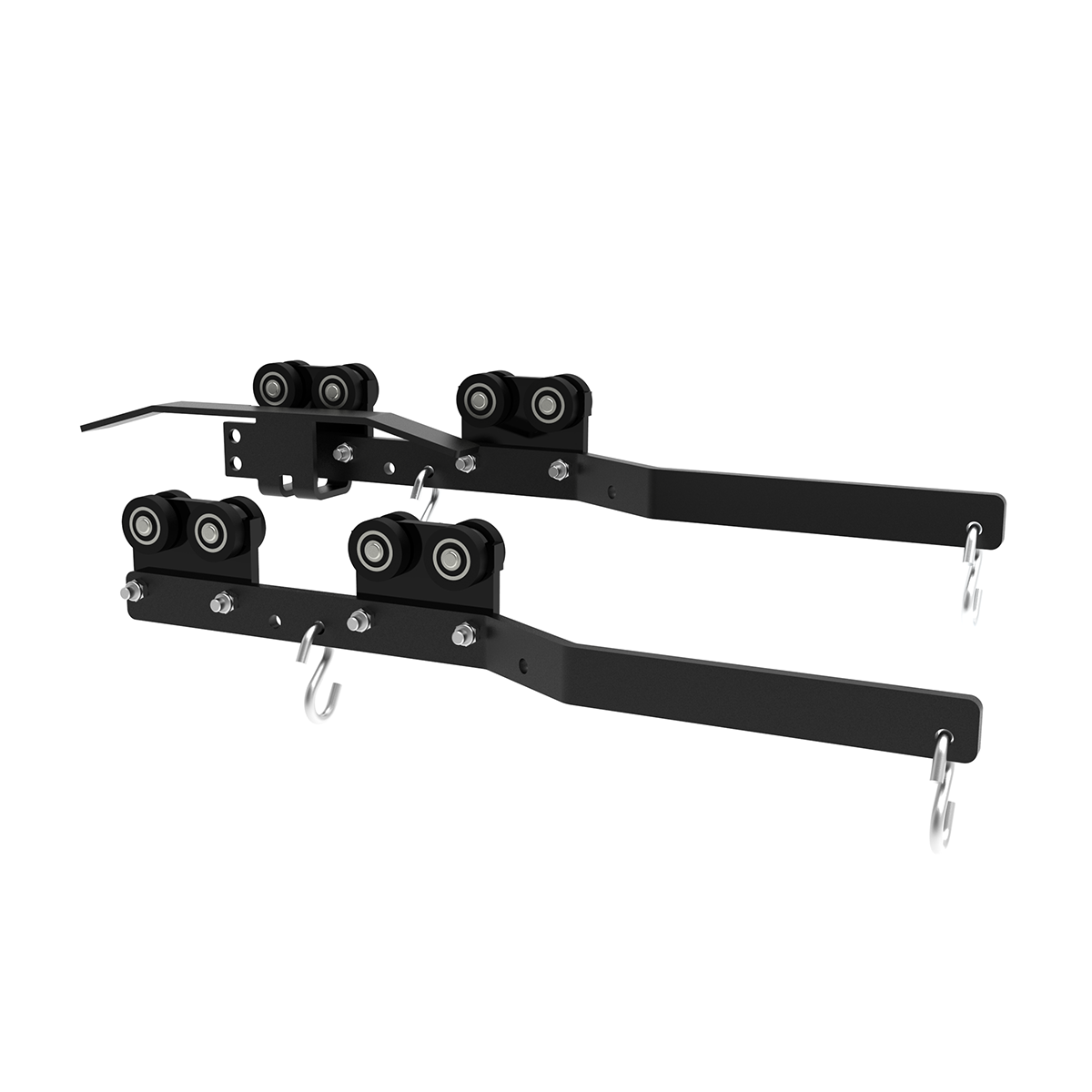

21. Overlap Master Carrier set for Motor	8050 0246 1167	Weight: 0.82 kg • Ball-raced • Set of 2 pieces

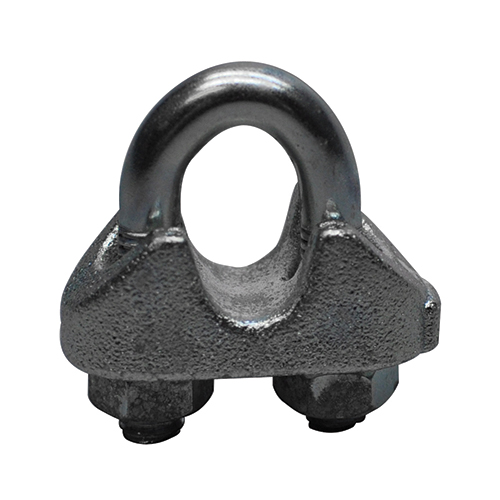

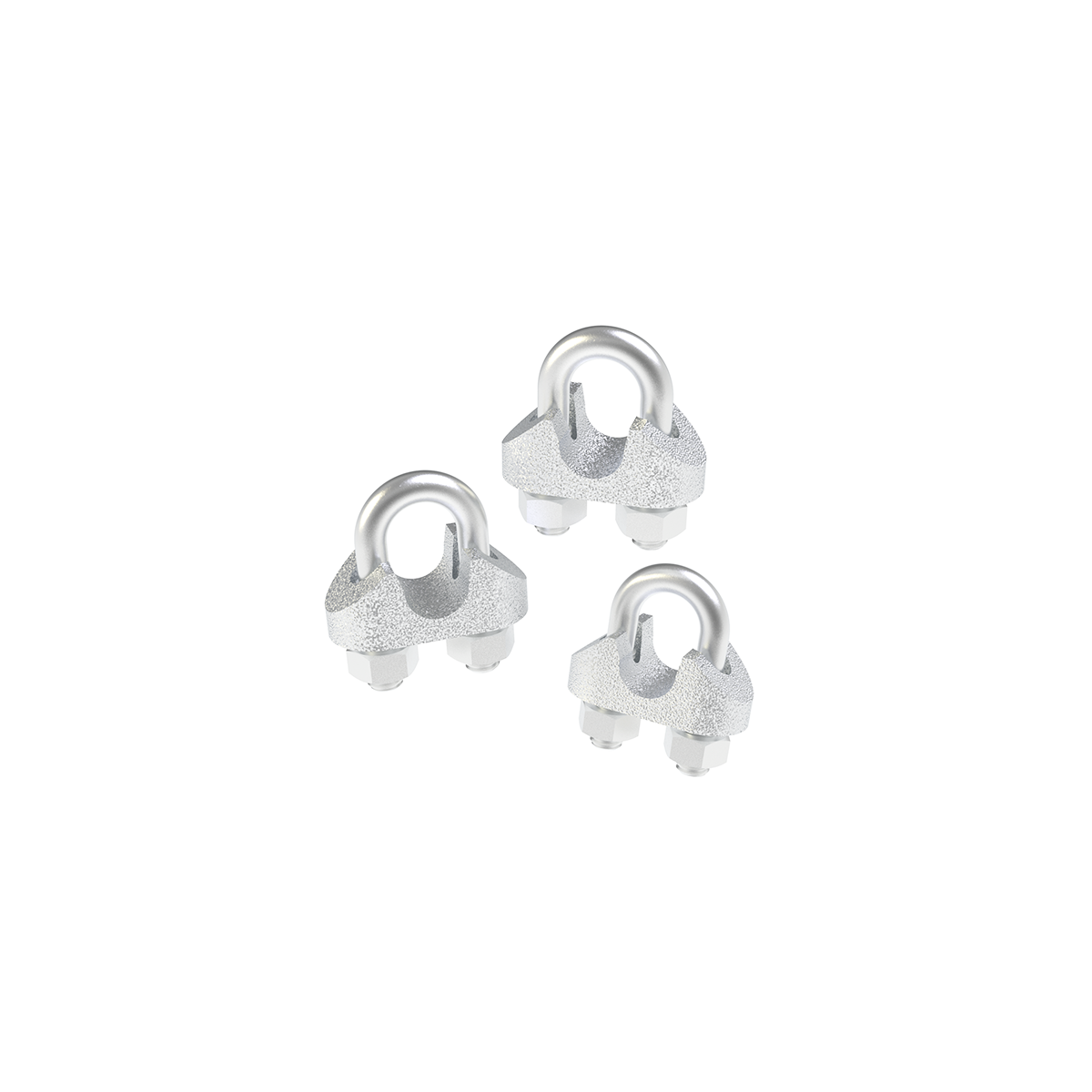

22. Rope Clamp set	8050 0248 0035	Weight: 0.035 kg • Set of 3 pieces • ø: 8 mm
23. Head Pulley	8050 0400 0047	Weight: 1.65 kg • Black
24. Return Pulley	8050 0410 0047	Weight: 0.95 kg • Black
25. Rope Pickup	8055 0694 0007	Weight: 0.2 kg • Black
26. Limit Switch set	8050 0770 0010	Weight: 0.27 kg • Set of 2 pieces • Black
27. Double Braided Rope	7530 0308 1007	Weight: 0.04 kg/m • ⌀ 8 mm • For rope and motor operation

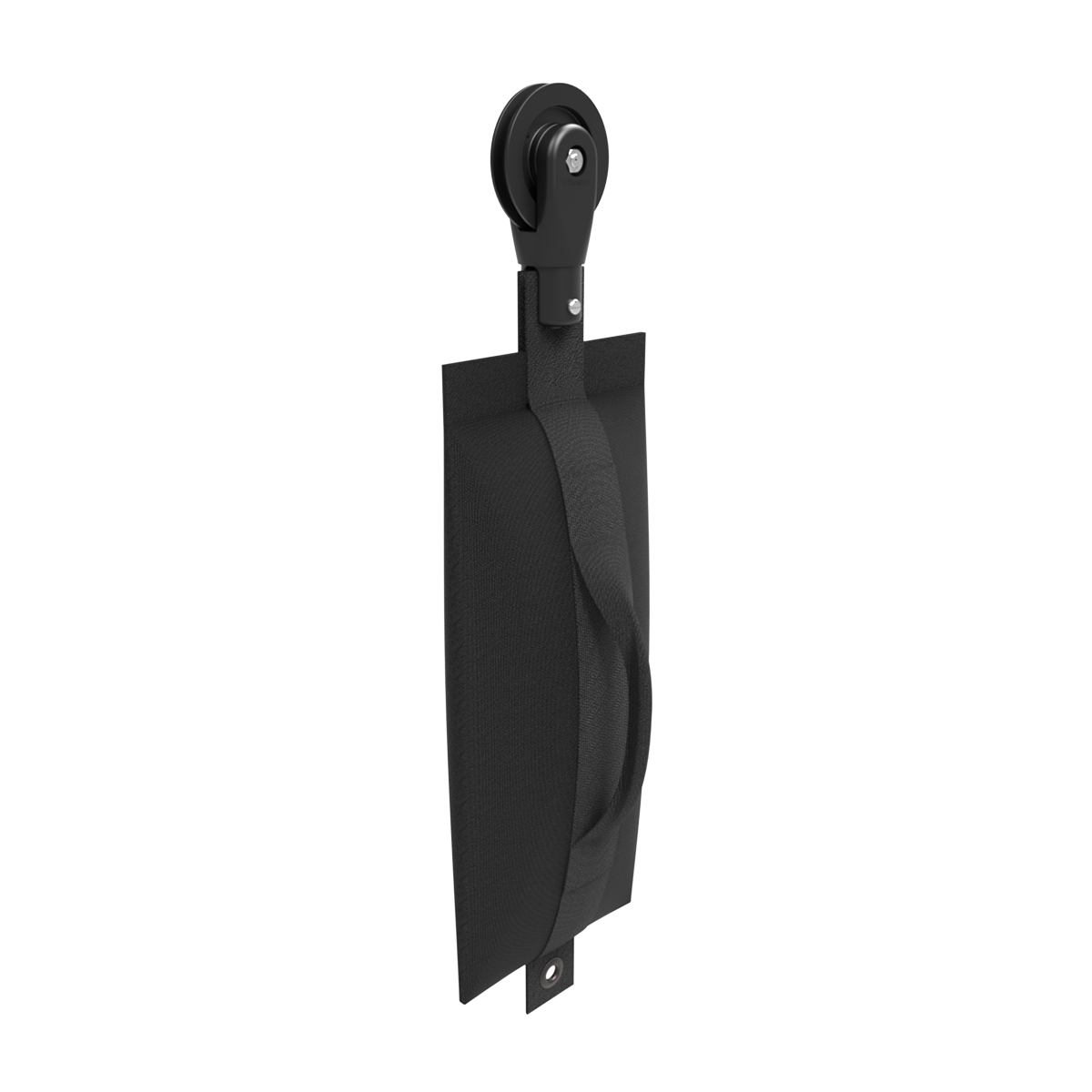

28. Weighted Return Pulley	8050 0415 0077	Weight: 5.50 kg • For rope operation • Black
	8050 0415 0097	Weight: 10.50 kg • For rope operation • Black

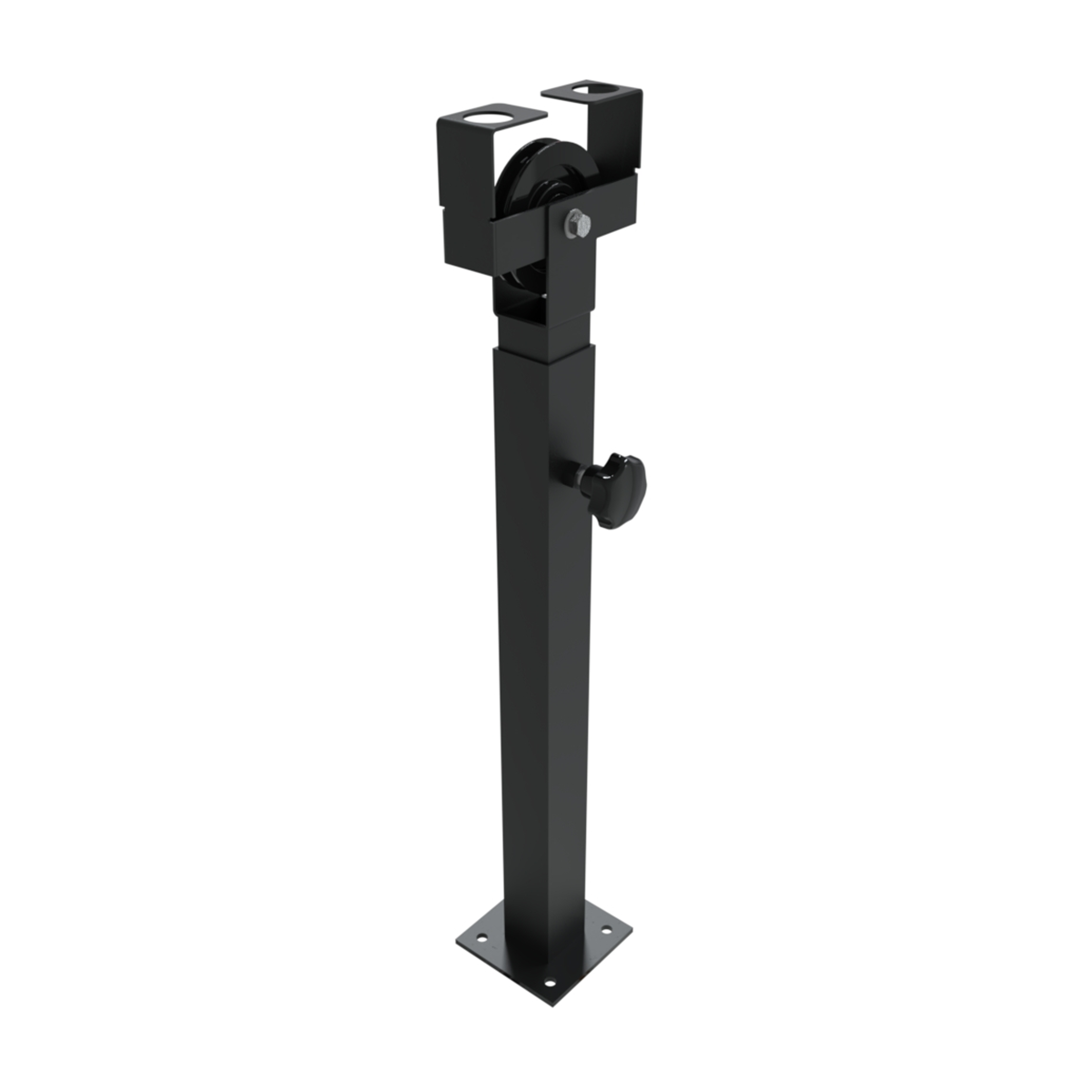

29. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg • For rope operation

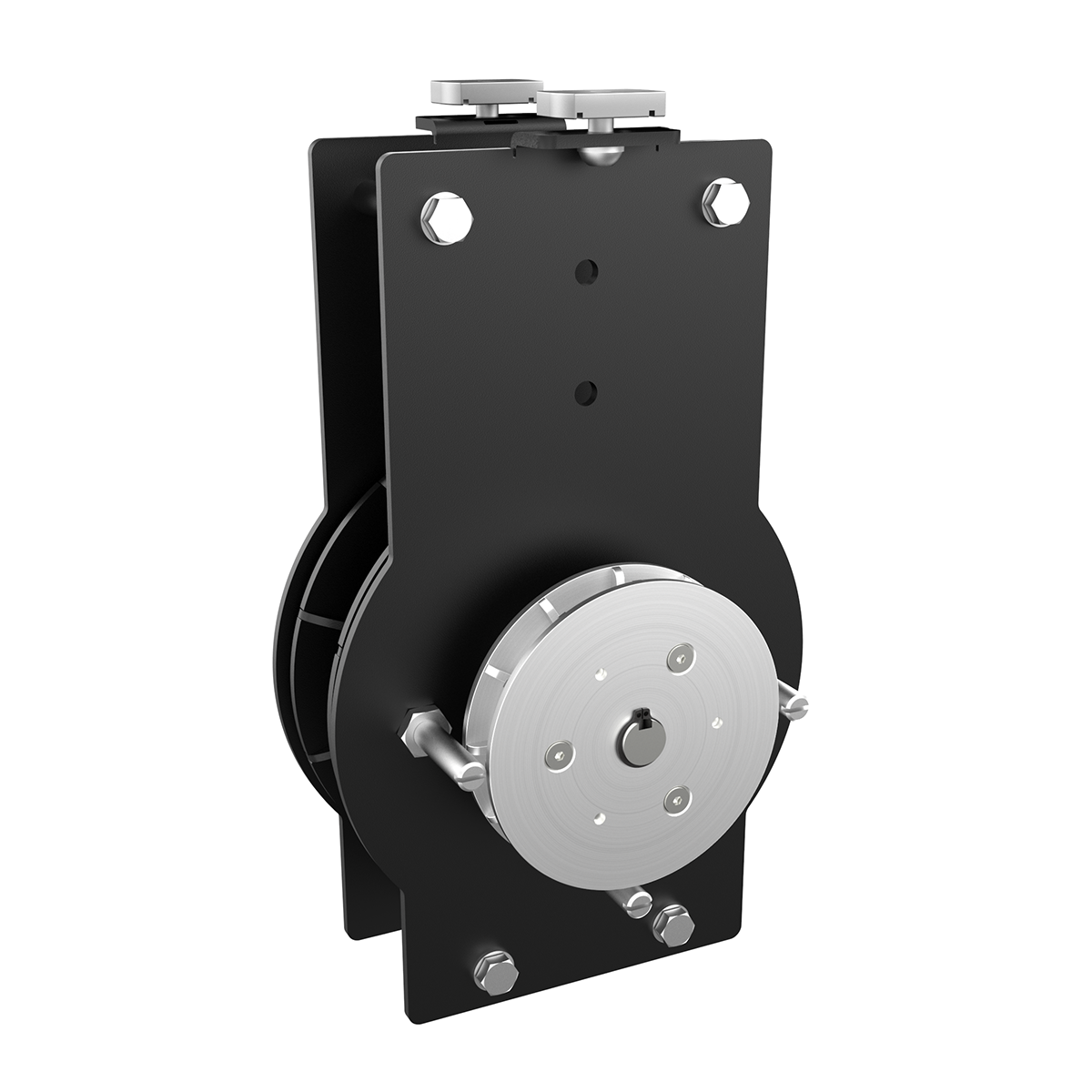

30. RopeAssist	8050 0425 0107	Weight: 6.54 kg • For comfortable rope operation
