EasyDrape

The new and improved EasyDrape pipe & drape is now completely toolless and designed to make your life easier. Ideal for building diverse setups such as trade show displays, banner stands, venue masking, event decoration or temporary divider walls.

All by yourself, you quickly place the aluminium uprights into the base plates and connect them with horizontal drape supports. Attach your drapes to the hook & loop fastener of the horizontals and push up the whole set, step by step, to the desired height. Easy as that! No tools, no noise, no hassle. And after the event? You can take down the reusable draping kit even faster than it was built. Have a look at the video here.

A STAND-ALONE PIPE & DRAPE SYSTEM

Save time and space by using the EasyDrape push-up drapes instead of a truss to safely hang your expo drapes up to 5 meters high. The adjustable uprights and horizontals allow you to easily install temporary venue masking or free-standing curtain walls, while the flexible 4-way coupler is great for creating corners from one pole. Perfect for venue draping!

Does your setup need more stability? That's where the handy supports come in. We recommend using supports on every other upright for setups around 3.5m high. For higher setups, a support on every upright is recommended. Depending on the specific conditions of each setup, extra supports might be advisable.

Contact us for more information



SETTING UP EASYDRAPE IS TOOLLESS, QUIET AND FAST

  • Quick telescopic height and width adjustment.
  • Stable & reliable construction.
  • Compatible with ShowPipe track system for curtain motion.
  • Comfortable working height and easily pushed up to as high as 5 m
  • No need for scaffolding.
  • A variety of storage and transport solutions available.
  • Uprights with 4-way for easy connection of horizontals.
  • Horizontals with hook-and-loop finishing on both sides.
  • 3 standard lengths of Uprights: 80 to 146 cm (FOH*) // 180 to 337 cm // 180 to 503 cm.
  • 3 standard widths of Horizontals: 90 to120 cm // 120 to180 cm // 180 to 300 cm.
  • EasyDrape Supports available for extra stability & safer installation.

*FOH= Front of house

Check out the EasyDrape Front of House (FOH) solution



TECHNICAL DATA - EASYDRAPE - PIPE & DRAPE

AccessoryArticle codeInformation

01. Telescopic Upright Front of House

8750 2306 1307

Weight: 1.45 kg • 0.80 m - 1.46 m

02. Telescopic Upright 3 m

8750 2306 3377

Weight: 2.95 kg • 1.80 m - 3.37 m

03. Telescopic Upright 5 m

8750 2306 5057

Weight: 4.60 kg • 1.80 m - 5.03 m

04. Base Plate Front of House

8750 2000 0057

Weight: 5.00 kg • 34.5 x 34.5 cm • For Front of House,

Retractable Belt and Hanging Rope Uprights

05. Base Plate

8750 2000 0147

Weight: 14.00 kg • 49.5 x 49.5 cm • For 3 m and 5 m Telescopic Uprights

06. Base Plate Coupler

8750 2306 0017

Weight: 0.22 kg • To connect Base Plates and Uprights

07. Horizontal Drape Support

8750 2309 0907

Weight: 1.55 kg • 0.90 m - 1.20 m • To attach drapes

8750 2309 1207

Weight: 2.03 kg • 1.20 m - 1.80 m • To attach drapes

8750 2309 1807

Weight: 2.94 kg • 1.80 m - 3.00 m • To attach drapes

08. Support for Uprights

8750 2306 5067

Weight: 1.60 kg • To support 3 m and 5 m Uprights

09. Retractable Belt Upright

8750 2317 0907

Weight: 1.08 kg • 0.90 m • Belt lenght: 2.50 m

10. Hanging Rope Upright

8750 2317 0917

Weight: 0.92 kg • 0.90 m • To hang Velvet Hanging Rope

11. Velvet Hanging Rope

8750 2263 0107

Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Black

8750 2263 0109

Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Red

12. Coat Hooks

8750 2317 1457

Weight: 2.94 kg • 1.45 m • To place on top of a Horizontal

13. Offset Plate

8750 2263 0087

Weight: 0.21kg • For ShowPipe in front setup

14. 4-Way Track Connector

8750 2263 0104

Weight: 0.01 kg • For ShowPipe on top setup

15. 4-Way M10 Adaptor

8750 2263 0094

Weight: 0.10 kg • For 4-Way to M10 adaption

16. Upright Turn Button

8750 2270 0017

Weight: 0.02 kg • Spare part

17. Horizontal Turn Button

8750 2309 0057

Weight: 0.02 kg • Spare part

18. Coupler Turn Button

8750 2270 0007

Weight: 0.02 kg • Spare part

19. Swivel

8750 2309 0007

Weight: 0.01 kg • Spare part

20. Plastic Washer

8750 2309 0067

Weight: 0.01 kg • Spare part

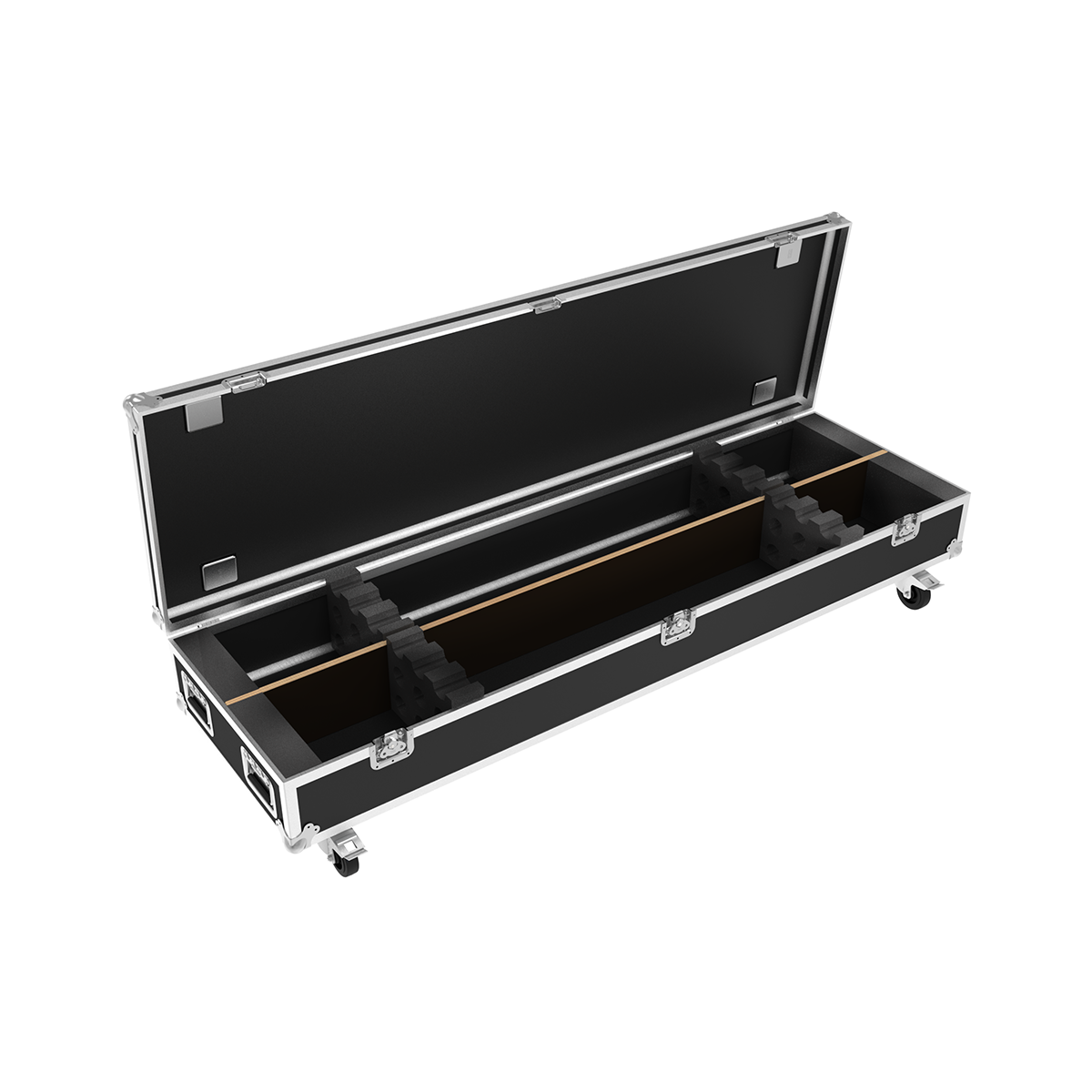

21. Flightcase

8750 2375 0207

Weight: 52.00 kg (empty) - 120.50 kg (full)

Fits 9 Uprights and 9 Horizontals

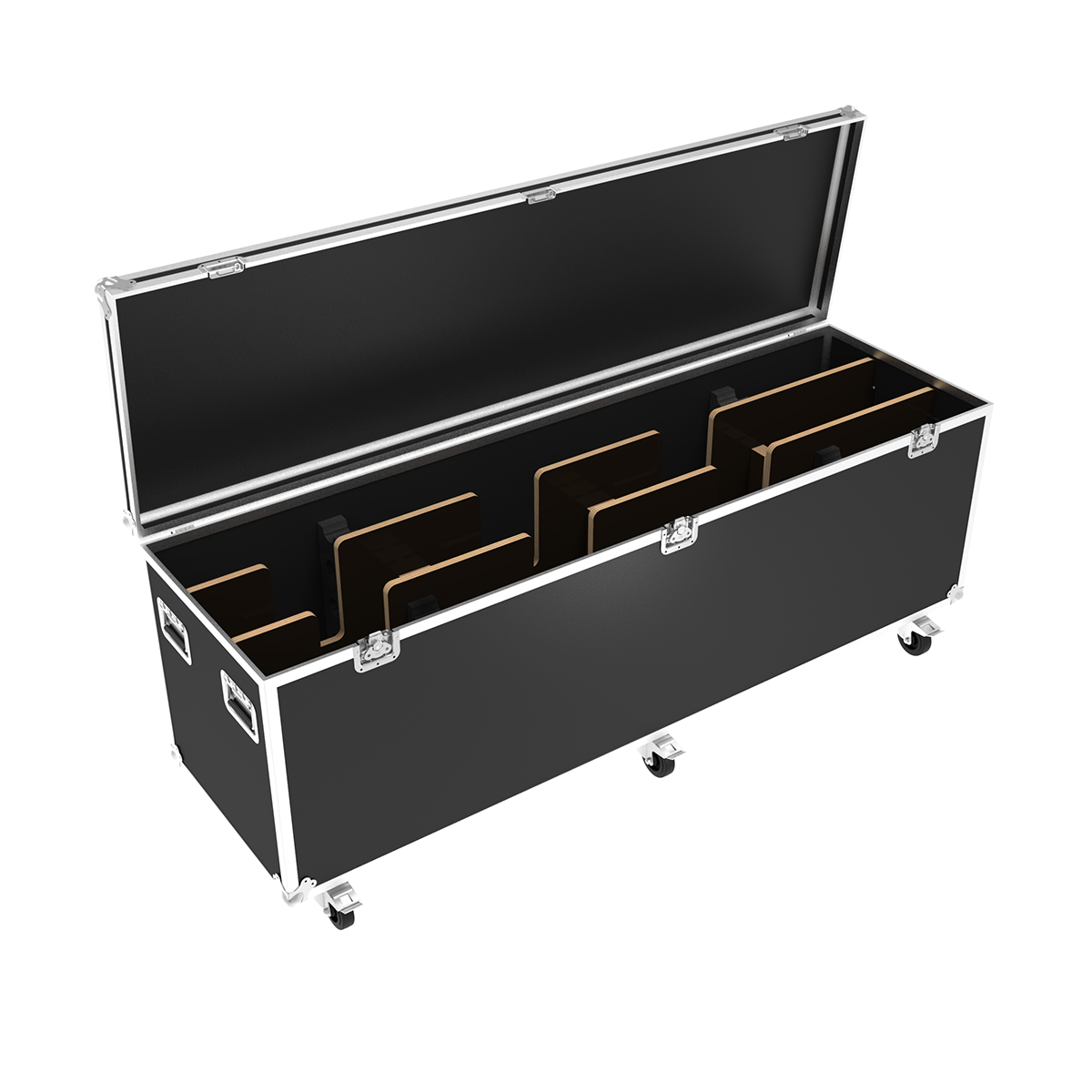

22. Flightcase xl

8750 2375 0117

Weight: 118.00 kg (empty) - 312.50 kg (full)

Fits 9 Uprights, 9 Horizontals and 9 Base Plates

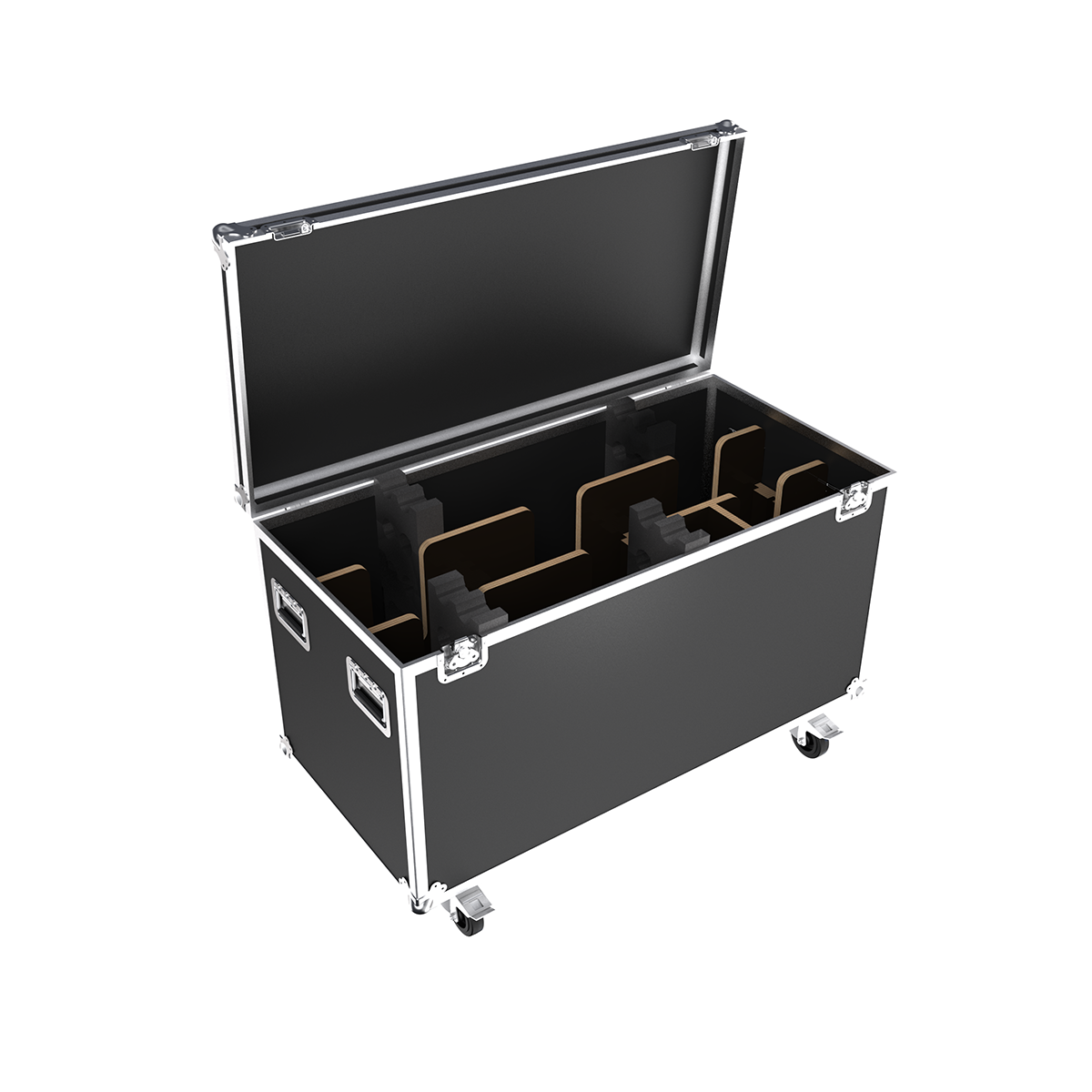

23. Front of House Flightcase

8750 2380 0117

Weight: 45.00 kg (empty) - 185.00 kg (full)

Fits 12 FOH Uprights, 12 FOH Base Plates and 4 drapes

24. Base Plate Cart

8750 2375 0305

Weight: 42.00 kg (empty) - 168.00 kg (full)

Fits 9 Base Plates

25. Trolley

8750 2375 0427

Weight: 72.00 kg (empty) - 245.00 kg (full)

Fits 8 Uprights, 8 Horizontals, 8 Base Plates and 6 drapes

26. Support Trolley

8750 2375 0437

Weight: 70.00 kg (empty) - 196.00 kg (full)

Fits 8 Supports, 8 Base Plates and 6 drapes

27. Rain Cover for Trolley

8750 2370 0417

Weight: 5.62 kg • PVC • With zipper
