铝质框架

黑色模块化铝制投影幕框架,可悬挂大型正投、背投投影屏幕,可壁挂、独立支撑或悬挂在天花板上。

  • 投影幕用强力扳手绷紧在铝框架上。
  • 可用于固定安装和巡回演出。
  • 如果安装的幕布是不透明的,框架可在其覆盖下“隐形”。
  • 投影幕框架是大型投影介质的理想选择,可适用于所有场所:电影院、大型会议室、通讯室或礼堂。
  • 投影幕框架可以在内部弯曲,用于特定形状和尺寸的投影幕。
  • 投影幕可定制尺寸。
  • 投影幕可以选择固定安装或可拆除移动式遮蔽。



配件 产品代码信息

01. Base Profile

8800 4103 6007

Weight: 3.00 kg/m • Length: 6.10 m

02. Curved Base Profile

8800 0007 9997

Weight: 3.00 kg/m • Length: 6.10 m • Min. radius: 3 m

03. Corner 0°

8800 4100 0007

Weight: 2.42 kg/set • For a 0° frame

04. Corner 45°

8800 4101 0007

Weight: 2.60 kg/set • For a 45° frame

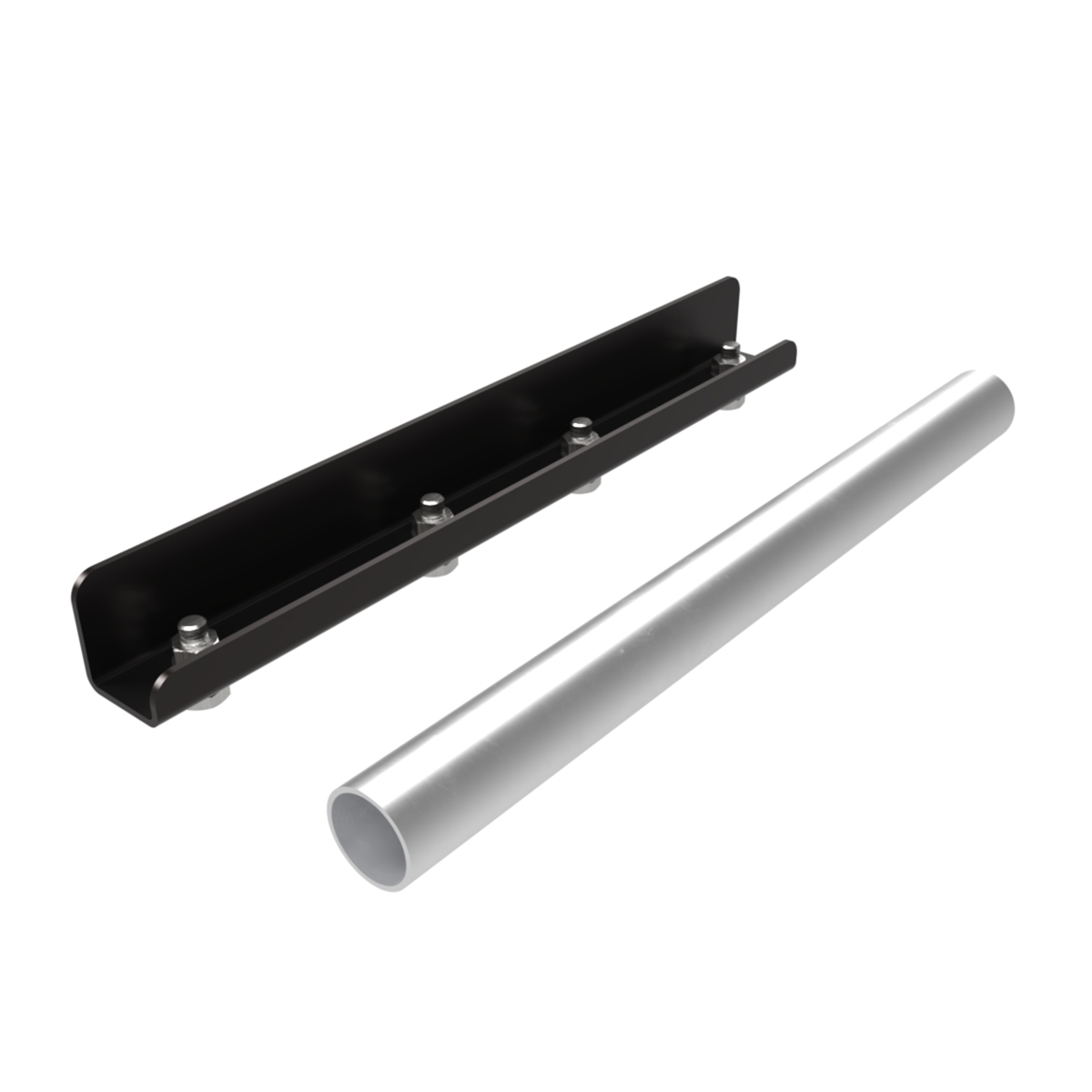

05. Joint set

8800 0042 0007

Weight: 1.25 kg/set • Length: 40 cm

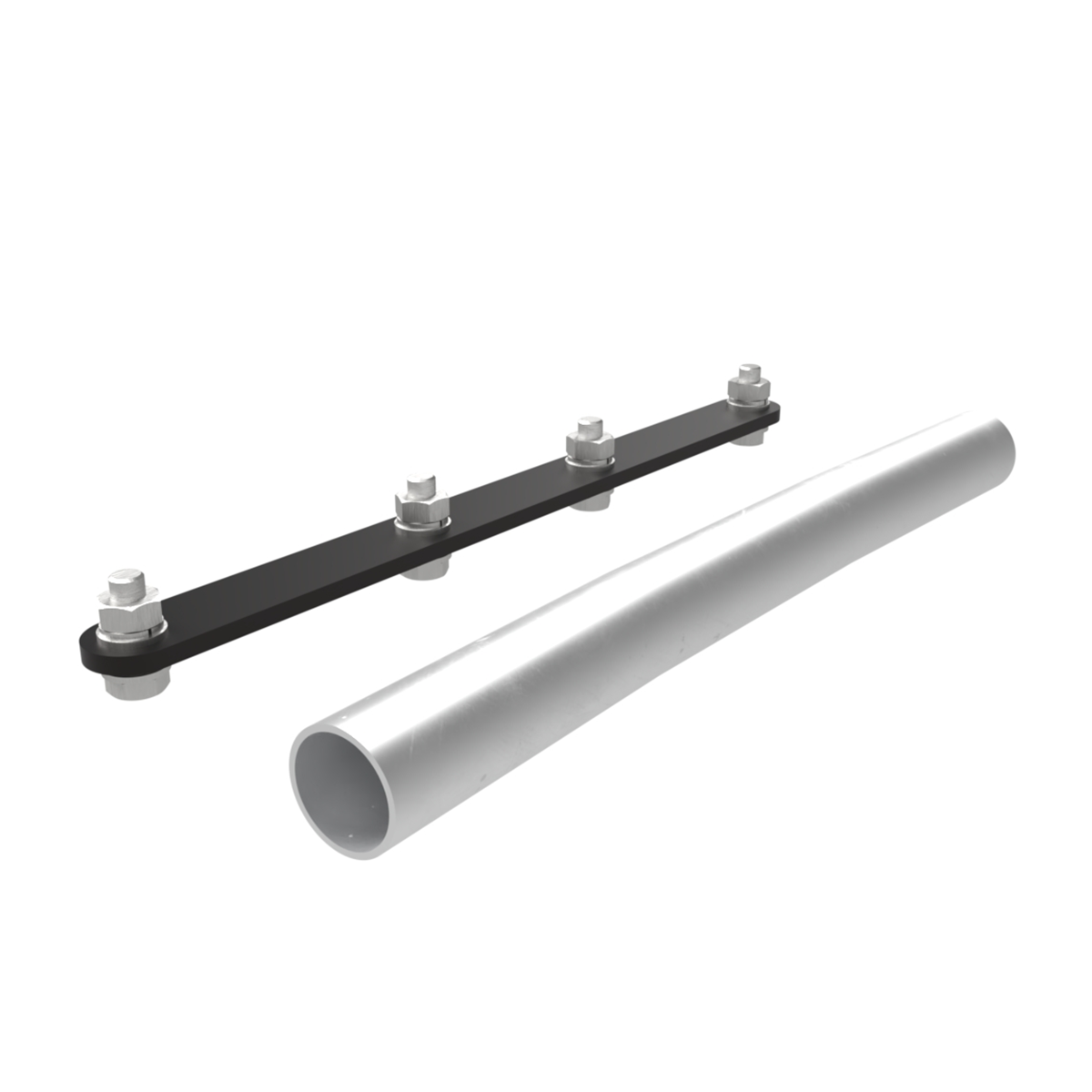

06. Curved Joint set

8800 0041 0107

Weight: 2.80 kg/set • Custom bent

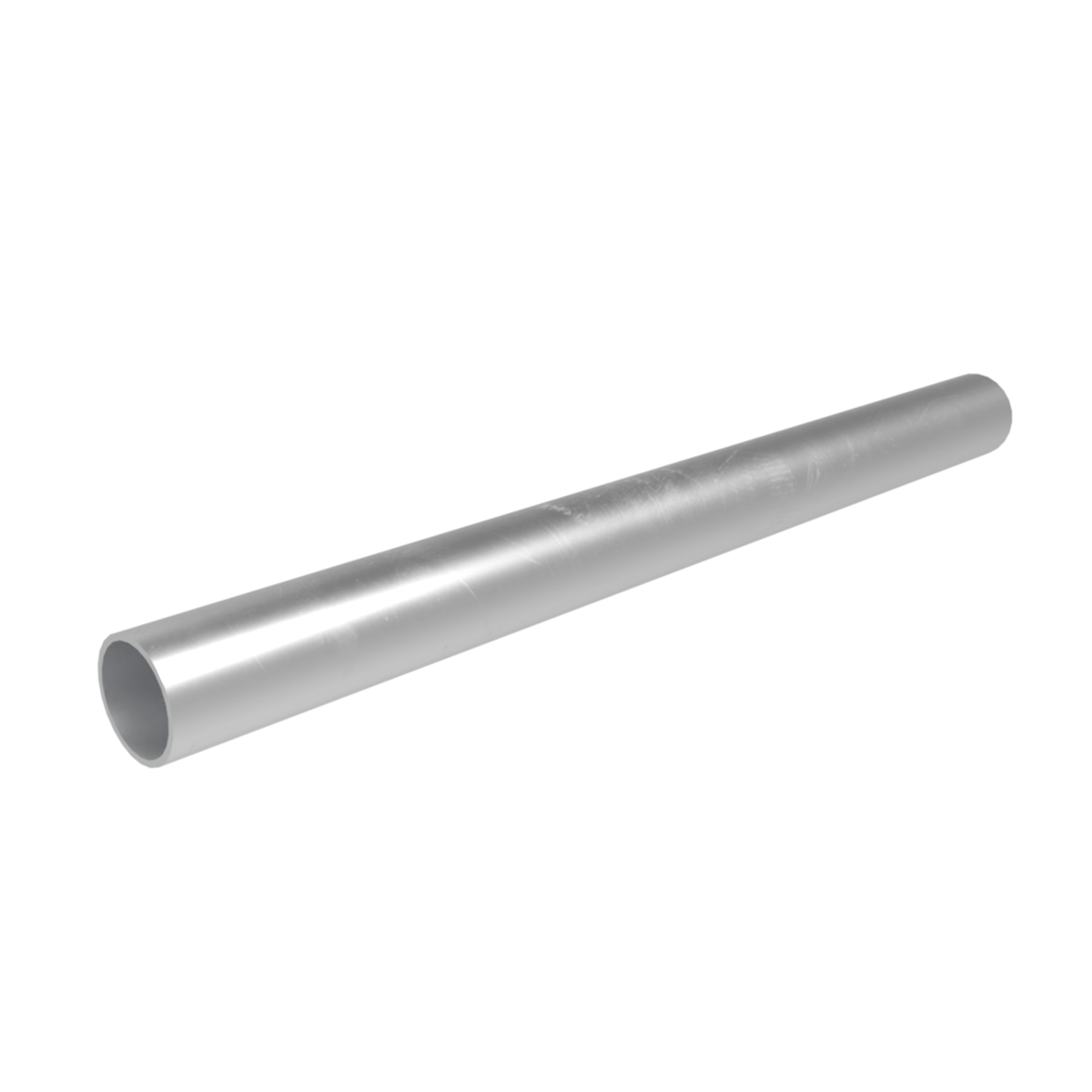

07. Joint Pivot

8800 0042 0024

Weight: 0.94 kg • Length: 40 cm

08. Joint Plate 0°

8800 0042 0027

Weight: 3.58 kg • For use with Support Profiles

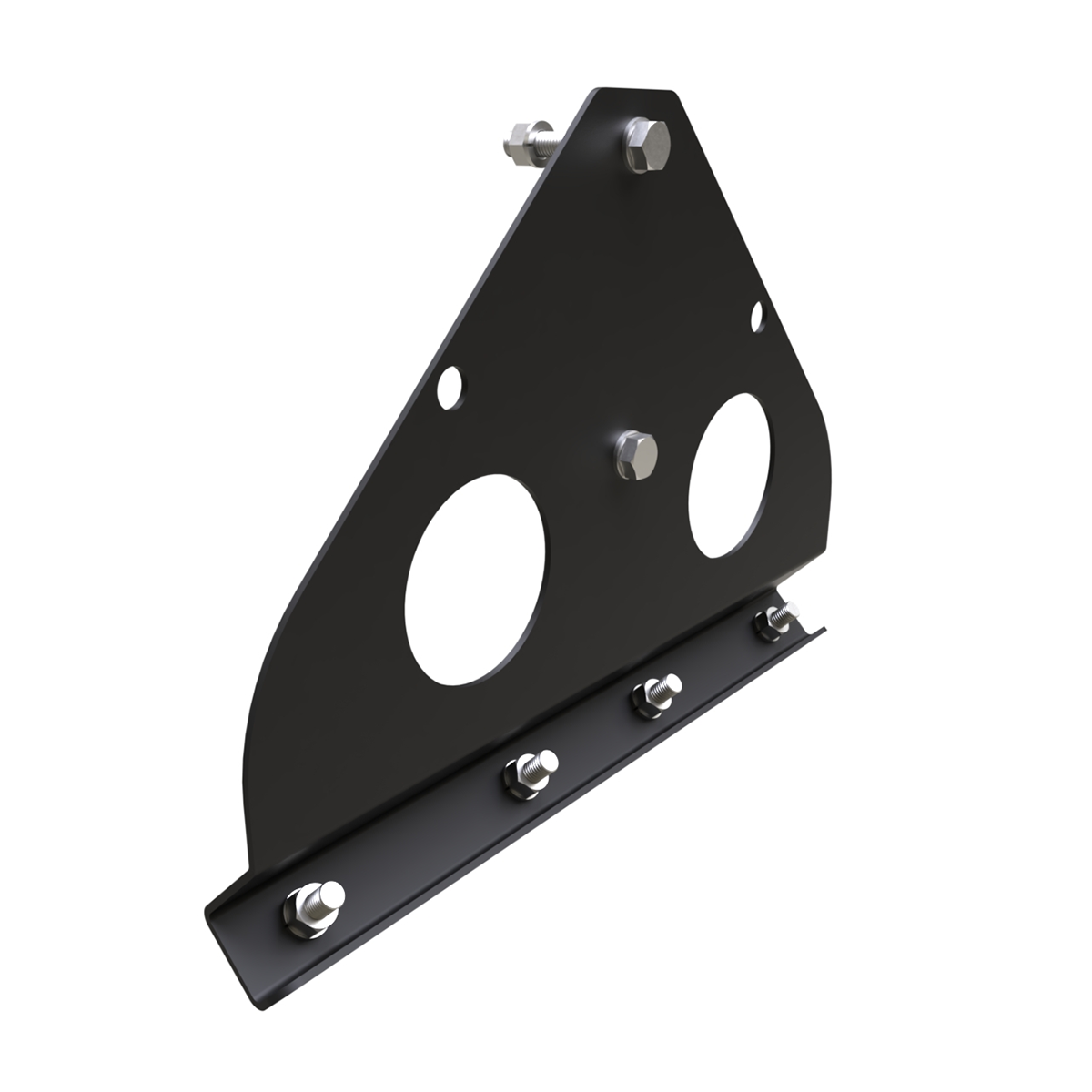

09. Joint Plate 45°

8800 0042 0037

Weight: 4.84 kg • For use with Support Profiles

10. Joint Plate Curved 0°

8800 0042 0047

Weight: 2.07 kg • For use with Support Profiles

11. Support Profile

8800 0010 0457

Weight: 0.88 kg/m • Length: 6 m • 45 x 45 x 2 mm

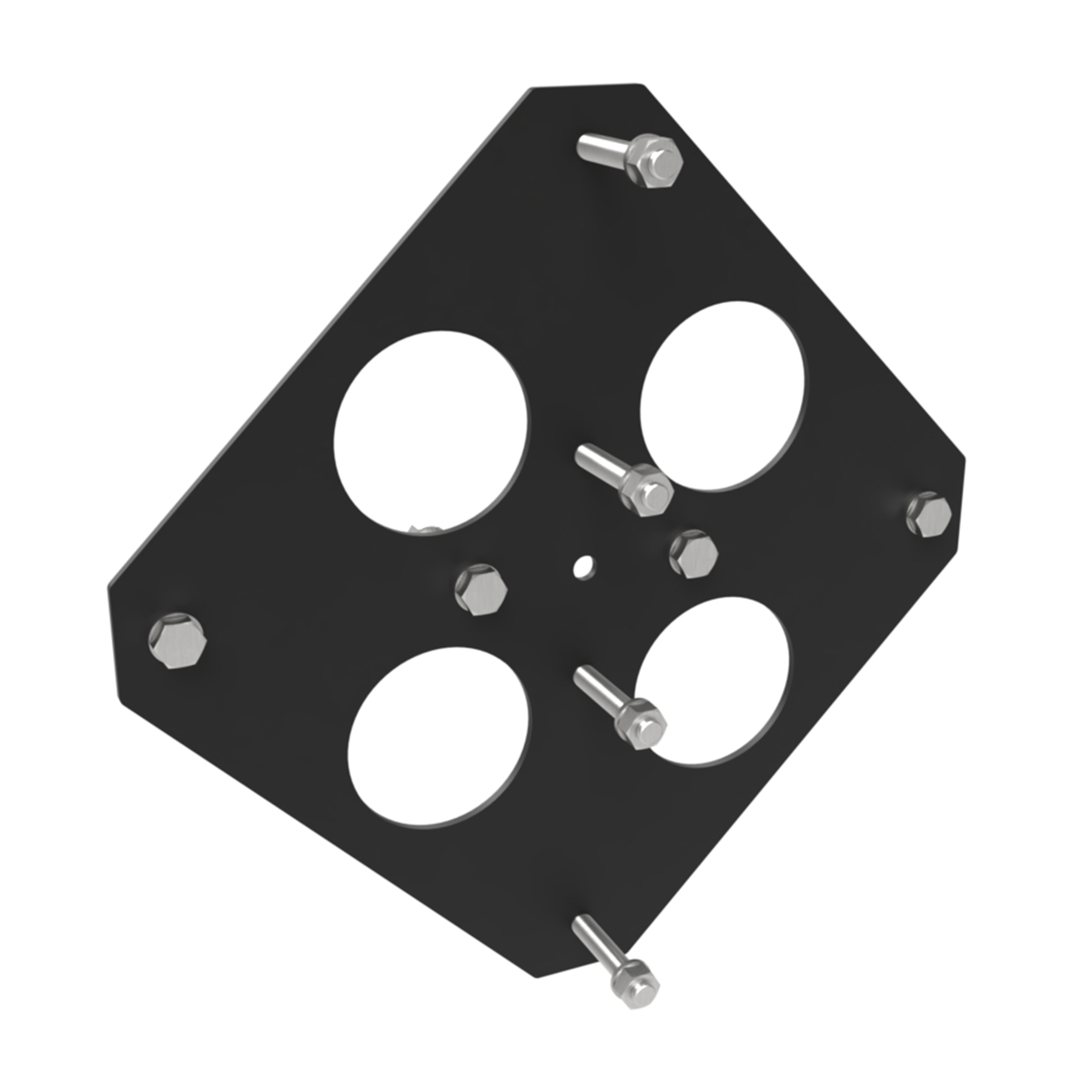

12. Cross Section Support Plate

8800 0041 0017

Weight: 2.74 kg • To cross connect Support Profiles

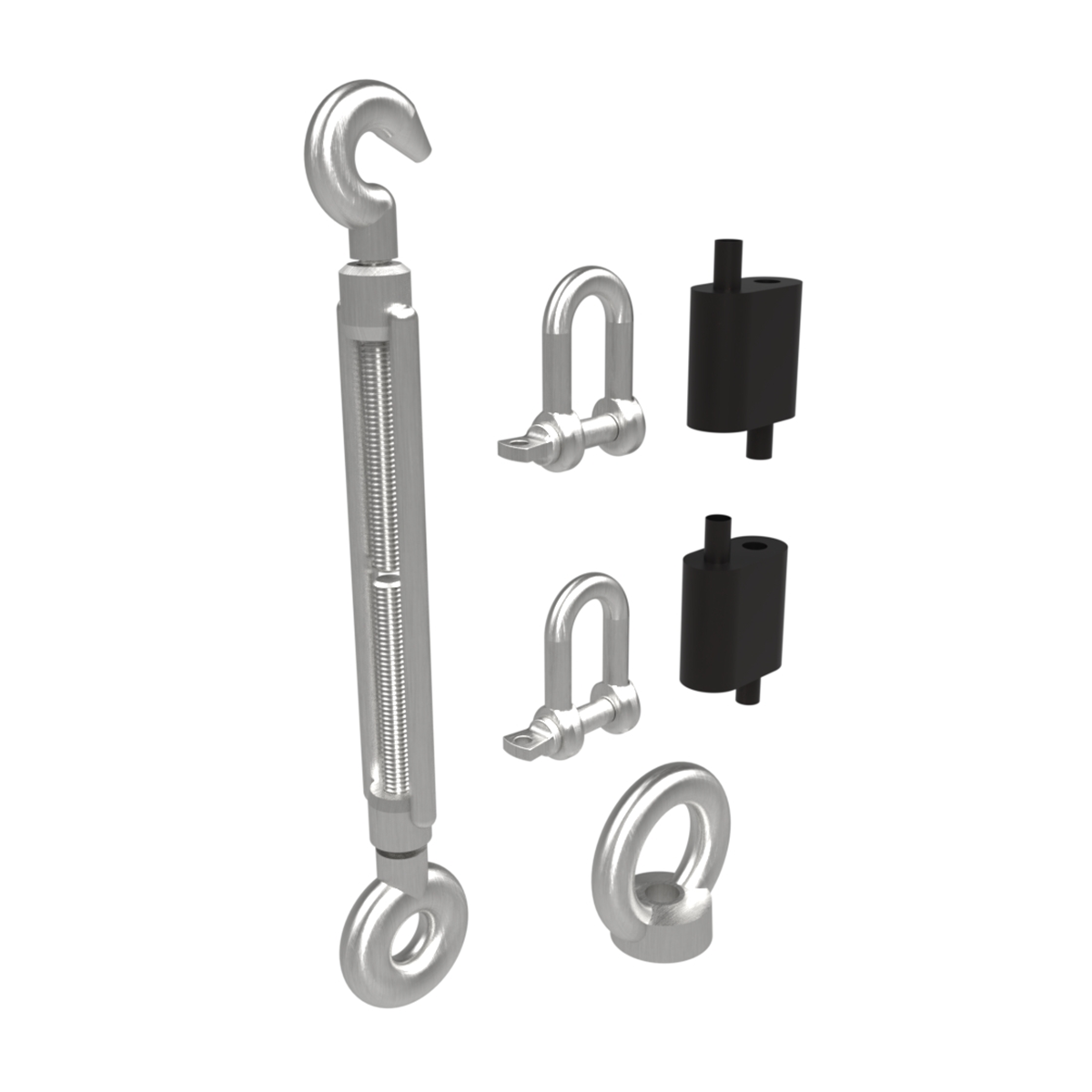

13. Tension set

8800 4101 2001

Weight: 0.33 kg/set • For diagonal tensioning

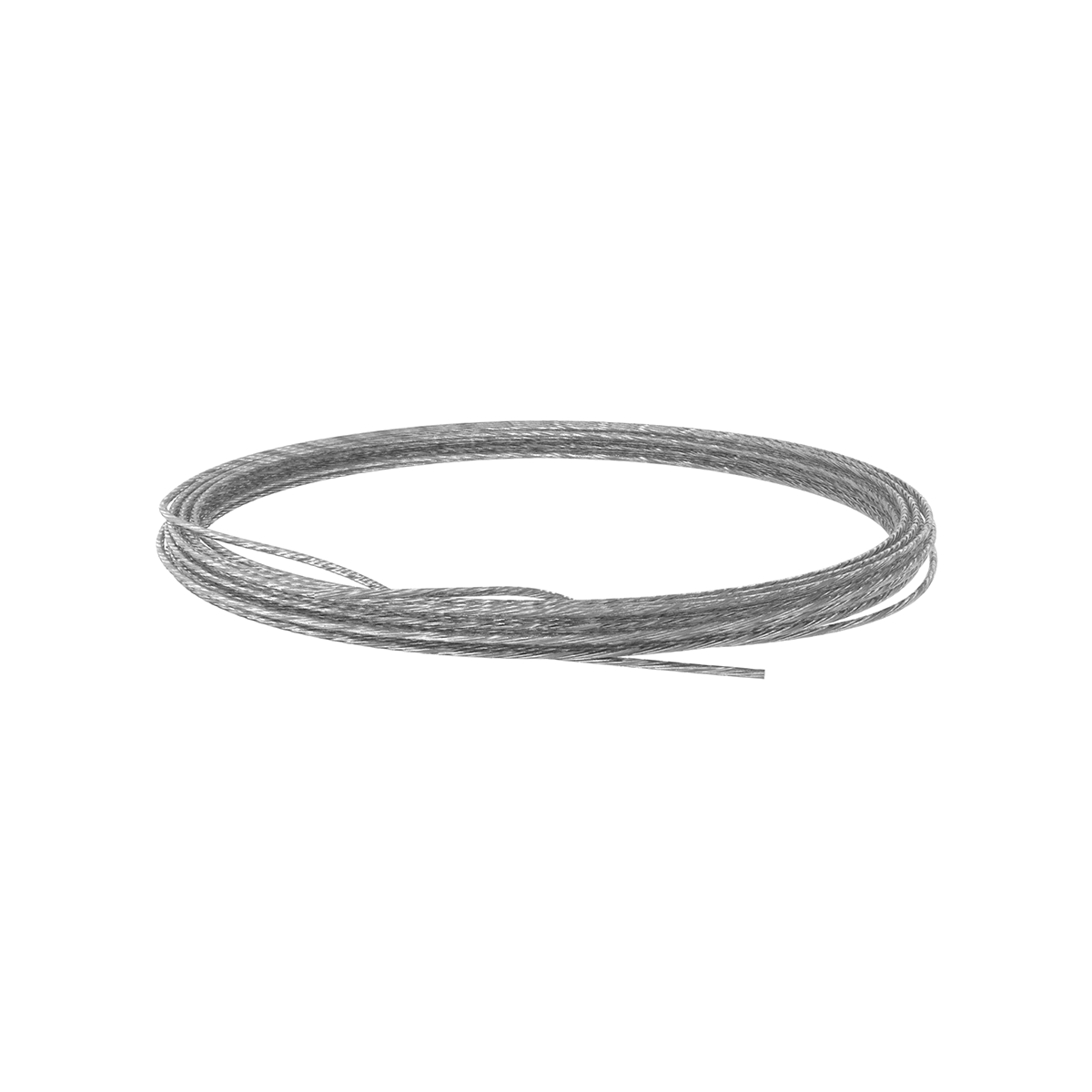

14. Steel Cable

8840 9600 7231

Weight: 0.02 kg/m • For use with Tension set • 3 mm

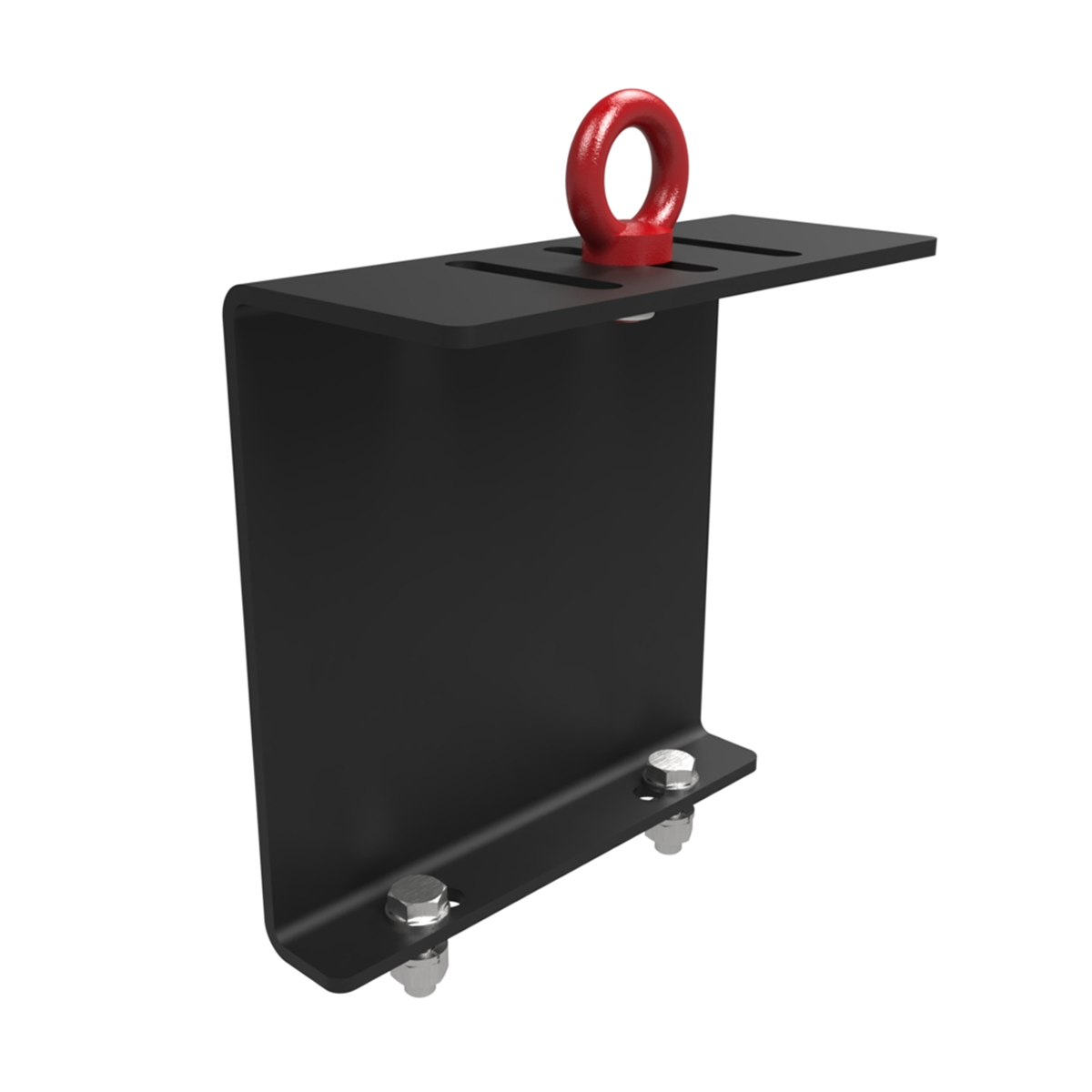

15. Suspension set 0°

8800 0674 0117

Weight: 2.48 kg • For balanced suspension

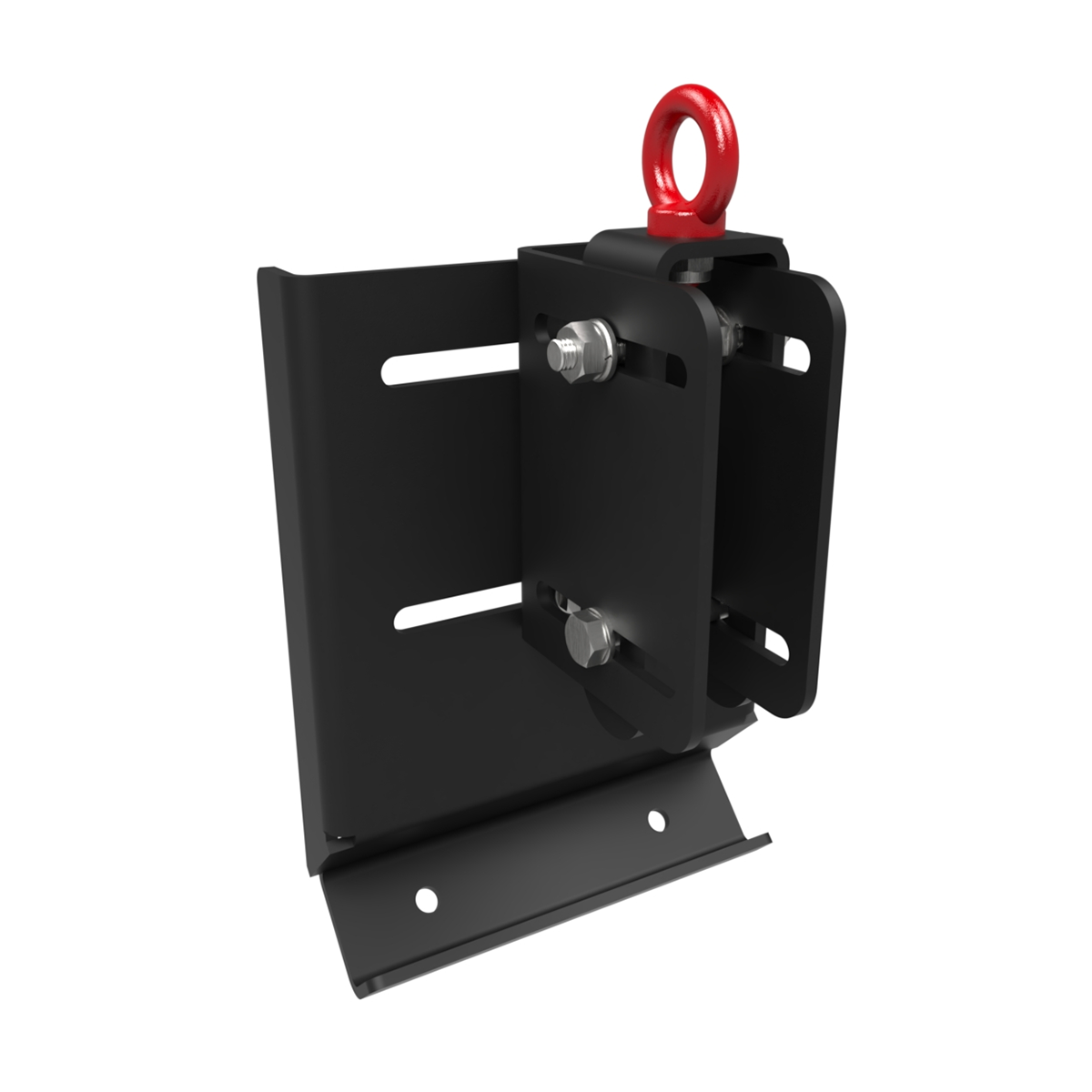

16. Suspension set 45°

8800 0674 0107

Weight: 5.26 kg • For balanced suspension

17. Wall Bracket Plate 0°

8800 0650 0307

Weight: 0.36 kg • For suspension on a wall

18. Wall Bracket Plate 45°

8800 0650 0317

Weight: 0.67 kg • For suspension on a wall

19. Truss Clamp Plate 0°

8800 0677 0817

Weight: 0.30 kg • For suspension on trusses

20. Suspension Plate

8800 0041 0024

Weight: 0.23 kg • For angular suspension

21. Universal Clamp

8800 0677 0407

Weight: 0.18 kg • For angular suspension

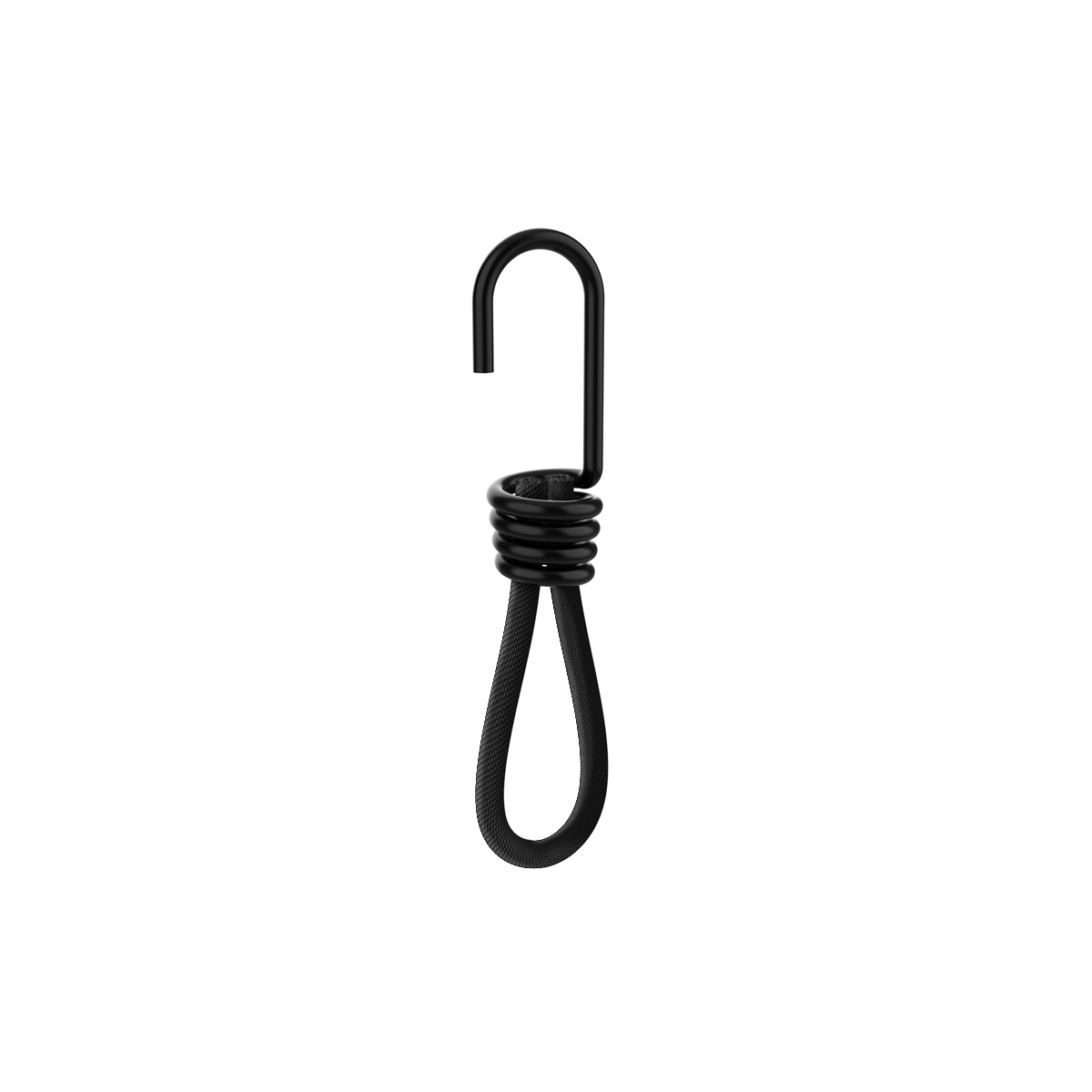

22. Spanfix Spiral Hook Loop

7641 0013 0007

Weight: 0.02 kg • Length: 13 cm

23. Spanfix Spiral Hook T

7642 0014 0007

Weight: 0.02 kg • Length: 14 cm
